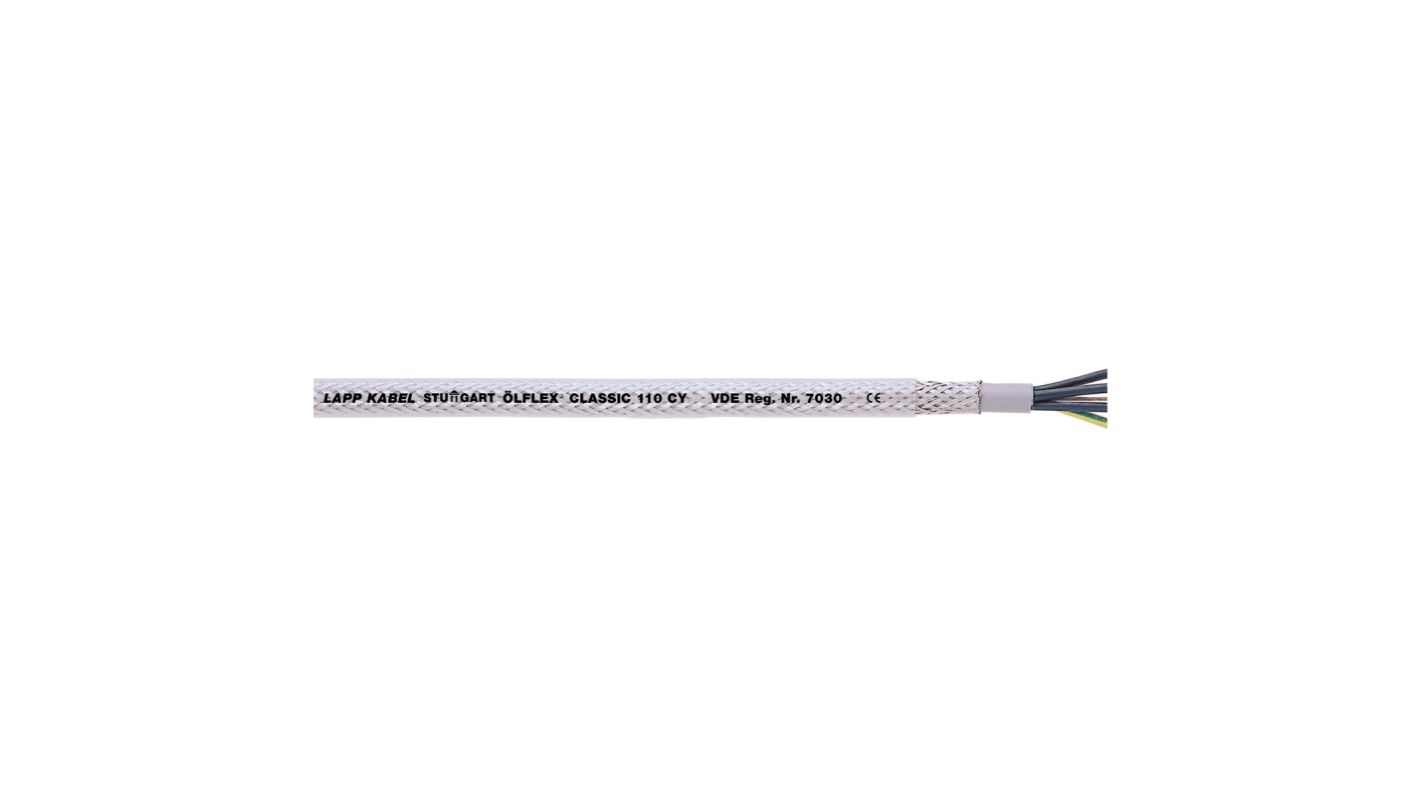

Lapp 11359 Control Cable, 5 Cores 16 AWG, 100 m, Screened Stranded, Grey Polyvinyl Chloride Sheath
- RS Stock No.:
- 283-2171
- Mfr. Part No.:
- 1135905
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£471.93
(exc. VAT)
£566.32
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £471.93 | £4.719 |
*price indicative
- RS Stock No.:
- 283-2171
- Mfr. Part No.:
- 1135905
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Control Cable | |
| Series | 11359 | |
| Number of Cores | 5 | |
| Conductor Material | Bare Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Screened | |
| Cable Length | 100m | |
| Conductor Type | Stranded | |
| Standards/Approvals | CE marked, UKCA marked, VDE Certified, EAC Certified | |
| Maximum Operating Temperature | 80°C | |
| American Wire Gauge | 16AWG | |
| Core Strands | 5 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Control Cable | ||
Series 11359 | ||
Number of Cores 5 | ||
Conductor Material Bare Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Screened/Unscreened Screened | ||
Cable Length 100m | ||
Conductor Type Stranded | ||
Standards/Approvals CE marked, UKCA marked, VDE Certified, EAC Certified | ||
Maximum Operating Temperature 80°C | ||
American Wire Gauge 16AWG | ||
Core Strands 5 | ||
- COO (Country of Origin):
- DE
The Lapp cables are VDE approved power and control cables, suitable for occasional flexible use and fixed installation under medium mechanical load conditions. They can be used in dry, damp, or wet areas, and when used outdoors, it's important to observe the indicated temperature range and provide UV protection. These cables are largely resistant to acids, alkalis, and certain oils at room temperature. They are suitable for occasional, non-automated movements, with a maximum tensile load of 15 N/mm² of conductor cross-section during installation and operation. Compulsory guidance is not permitted.
Flame resistant
Halogen free
Suitable for use in dry or damp areas
UV protection
