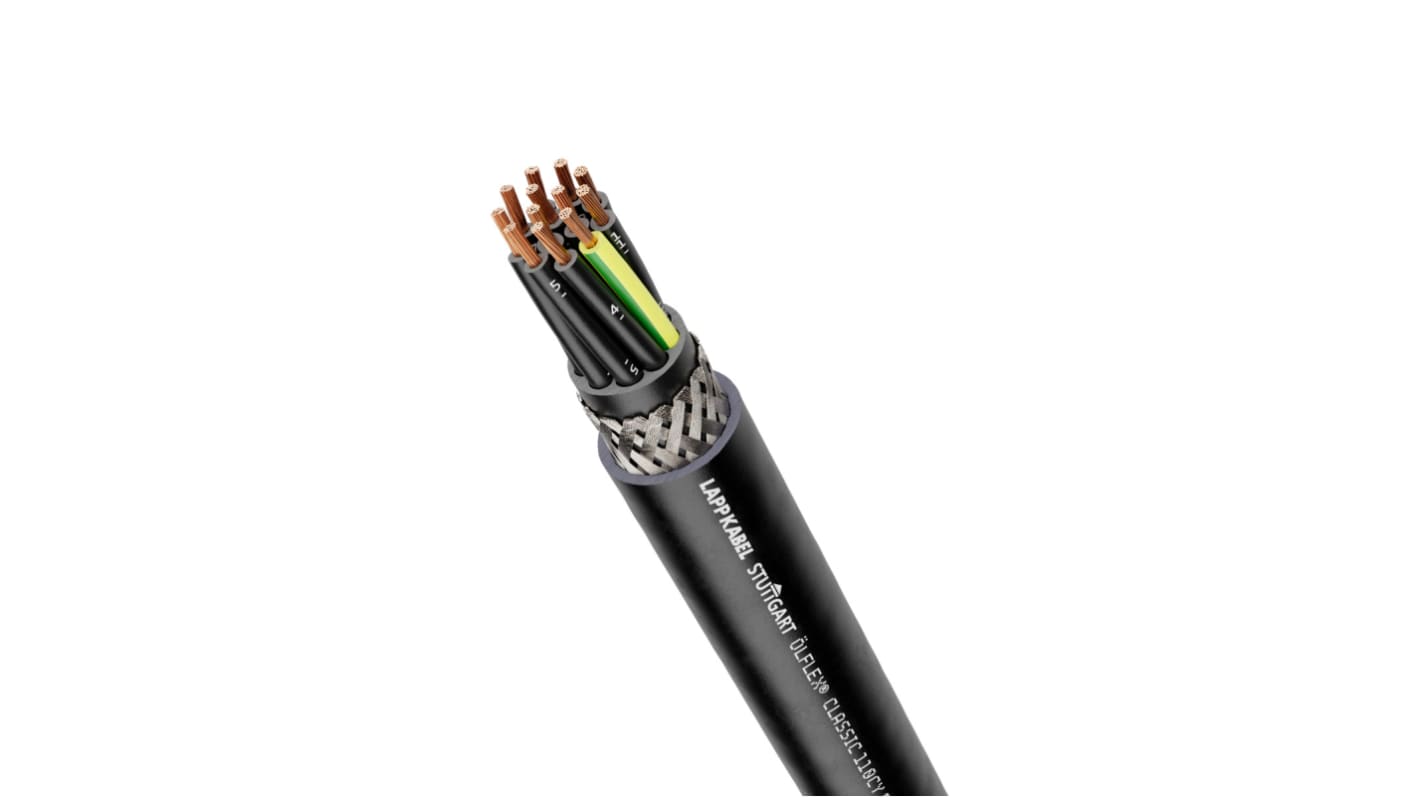

Lapp OLFLEX CLASSIC 110 CY Control Cable, 12 Cores, 0.75 mm² CSA 18 AWG, Screened, 50 m, Black Polyvinyl Chloride Sheath
- RS Stock No.:
- 280-5091
- Distrelec Article No.:
- 300-49-498
- Mfr. Part No.:
- 1121247
- Brand:
- Lapp
Subtotal (1 reel of 50 units)*
£357.48
(exc. VAT)
£428.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £357.48 | £7.15 |
*price indicative
- RS Stock No.:
- 280-5091
- Distrelec Article No.:
- 300-49-498
- Mfr. Part No.:
- 1121247
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | OLFLEX CLASSIC 110 CY | |
| Product Type | Control Cable | |
| Number of Cores | 12 | |
| Cross Sectional Area | 0.75 mm² | |
| Conductor Material | Bare Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Black | |
| Screened/Unscreened | Screened | |
| Cable Length | 50m | |
| Outside Diameter | 15.8 mm | |
| Voltage | 4000 V | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | EN 13501-6 and EN 50575 | |
| Maximum Operating Temperature | 80°C | |
| Fire Behaviour | Flame Retardant acc. to IEC 60332-1-2 resp. VDE 0482-332-1-2 | |
| American Wire Gauge | 18AWG | |
| Core Strands | 12 | |
| Distrelec Product Id | 300-49-498 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Series OLFLEX CLASSIC 110 CY | ||
Product Type Control Cable | ||
Number of Cores 12 | ||
Cross Sectional Area 0.75 mm² | ||
Conductor Material Bare Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Black | ||
Screened/Unscreened Screened | ||
Cable Length 50m | ||
Outside Diameter 15.8 mm | ||
Voltage 4000 V | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals EN 13501-6 and EN 50575 | ||
Maximum Operating Temperature 80°C | ||
Fire Behaviour Flame Retardant acc. to IEC 60332-1-2 resp. VDE 0482-332-1-2 | ||
American Wire Gauge 18AWG | ||
Core Strands 12 | ||
Distrelec Product Id 300-49-498 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
LAPP OLFLEX CLASSIC 110 CY Series Control Cable, 12 Cores, 0.75 mm² Cross Sectional Area - 1121247
This control cable is designed for power and control applications, featuring a durable black outer sheath suitable for flexible use and fixed installations under medium mechanical load. With a length of 50m and a cross-sectional area of 0.75 mm², it provides effective performance in diverse environments, including dry, damp, and wet areas.
Features & Benefits
• 12 cores enhance functionality for complex tasks
• Screened design protects against electrical interference
• Flame retardant properties ensure safety in installations
• PVC insulation provides robust protection against external elements
• Rated for 0.6/1kV, suitable for low voltage operations
• Flexible structure allows for occasional movement and adaptability
Applications
• Ideal for plant engineering and industrial machinery requirements
• Used in heating and air conditioning systems
• Suitable for power stations and stage
What is the maximum operating temperature for this cable?
The maximum operating temperature is +80°C, making it suitable for various applications where heat may be a factor.
How does the screening of this cable benefit its performance?
The screening braid offers protection against electrical interference, ensuring reliable signal integrity in power and control systems.
What is the minimum bending radius for installation?
For fixed installations, the minimum bending radius is six times the outer diameter, ensuring the cable maintains its integrity under strain.
Is this cable suitable for outdoor use?
Yes, it is suitable for outdoor applications as long as the specified temperature range is adhered to, providing versatility in various environments.
What kind of resistance does this cable offer against chemicals?
This cable is largely resistant to acids and alkalis at room temperature, making it durable in diverse industrial settings.
