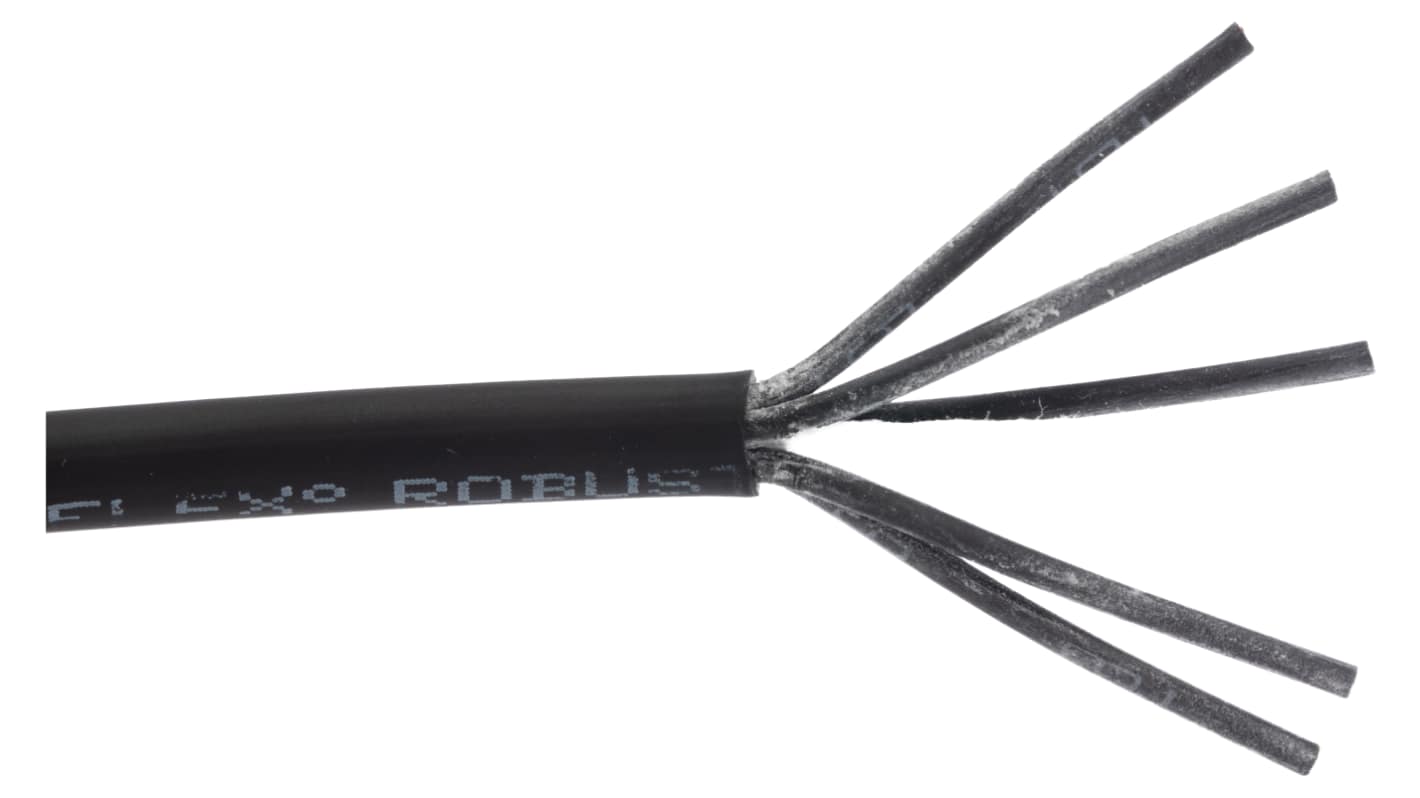

Lapp OLFLEX ROBUST 210 Control Cable, 5 Cores, 0.75 mm² CSA 18 AWG, Unscreened, 50 m, Black Thermoplastic Elastomer
- RS Stock No.:
- 280-5073
- Distrelec Article No.:
- 300-49-312
- Mfr. Part No.:
- 0021903
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£155.22
(exc. VAT)
£186.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £155.22 | £3.104 |
*price indicative
- RS Stock No.:
- 280-5073
- Distrelec Article No.:
- 300-49-312
- Mfr. Part No.:
- 0021903
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | OLFLEX ROBUST 210 | |
| Product Type | Control Cable | |
| Number of Cores | 5 | |
| Cross Sectional Area | 0.75 mm² | |
| Conductor Material | Bare Copper | |
| Jacket Material | Thermoplastic Elastomer | |
| Jacket Colour | Black | |
| Screened/Unscreened | Unscreened | |
| Cable Length | 50m | |
| Outside Diameter | 6.9 mm | |
| Voltage | 4000 V | |
| Conductor Type | Stranded | |
| Standards/Approvals | No | |
| American Wire Gauge | 18AWG | |
| Core Strands | 5 | |
| Distrelec Product Id | 300-49-312 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Series OLFLEX ROBUST 210 | ||
Product Type Control Cable | ||
Number of Cores 5 | ||
Cross Sectional Area 0.75 mm² | ||
Conductor Material Bare Copper | ||
Jacket Material Thermoplastic Elastomer | ||
Jacket Colour Black | ||
Screened/Unscreened Unscreened | ||
Cable Length 50m | ||
Outside Diameter 6.9 mm | ||
Voltage 4000 V | ||
Conductor Type Stranded | ||
Standards/Approvals No | ||
American Wire Gauge 18AWG | ||
Core Strands 5 | ||
Distrelec Product Id 300-49-312 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
LAPP OLFLEX ROBUST 210 Series Control Cable, 0.75 mm² Cross Sectional Area, 5 Cores - 0021903
This control cable is designed for versatility and durability in demanding environments. It features a 50m length, a 0.75 mm² cross-sectional area, and is constructed with a thermoplastic elastomer (TPE) sheath. Its unshielded design ensures efficiency and reliability in various applications.
Features & Benefits
• Halogen-free materials enhance safety for users
• Suitable for temperatures from -50°C to +80°C
• Oil-resistant properties maintain integrity in hostile conditions
• Rounded shape allows for easy handling and installation
• Exceptional resistance to acids, alkalis, and oils
• Rated for a maximum voltage of 300/500 V for enhanced performance
Applications
• Used in car washing equipment for reliable operation
• Ideal for chemical industry machinery to withstand harsh conditions
• Suitable for submersible pumps, ensuring waterproof performance
• Used in sewage treatment plants for continuous use
• Efficient in food processing equipment, particularly for milk and meat
Is the cable suitable for outdoor installations?
Yes, the cable can be used outdoors as long as the specified temperature range is adhered to, making it versatile for various settings.
What is the minimum bending radius during installation?
When fixed, the minimum bending radius is four times the outer diameter, ensuring the cable maintains optimal performance while installed.
How does the cable perform in wet conditions?
It is designed for use in damp or wet areas, capable of functioning in fresh water up to 10m deep, with a maximum water temperature of 40°C.
Can it handle exposure to oils and greases?
Yes, the cable has been engineered to resist the effects of oils and various greases, making it suitable for demanding industrial applications.
