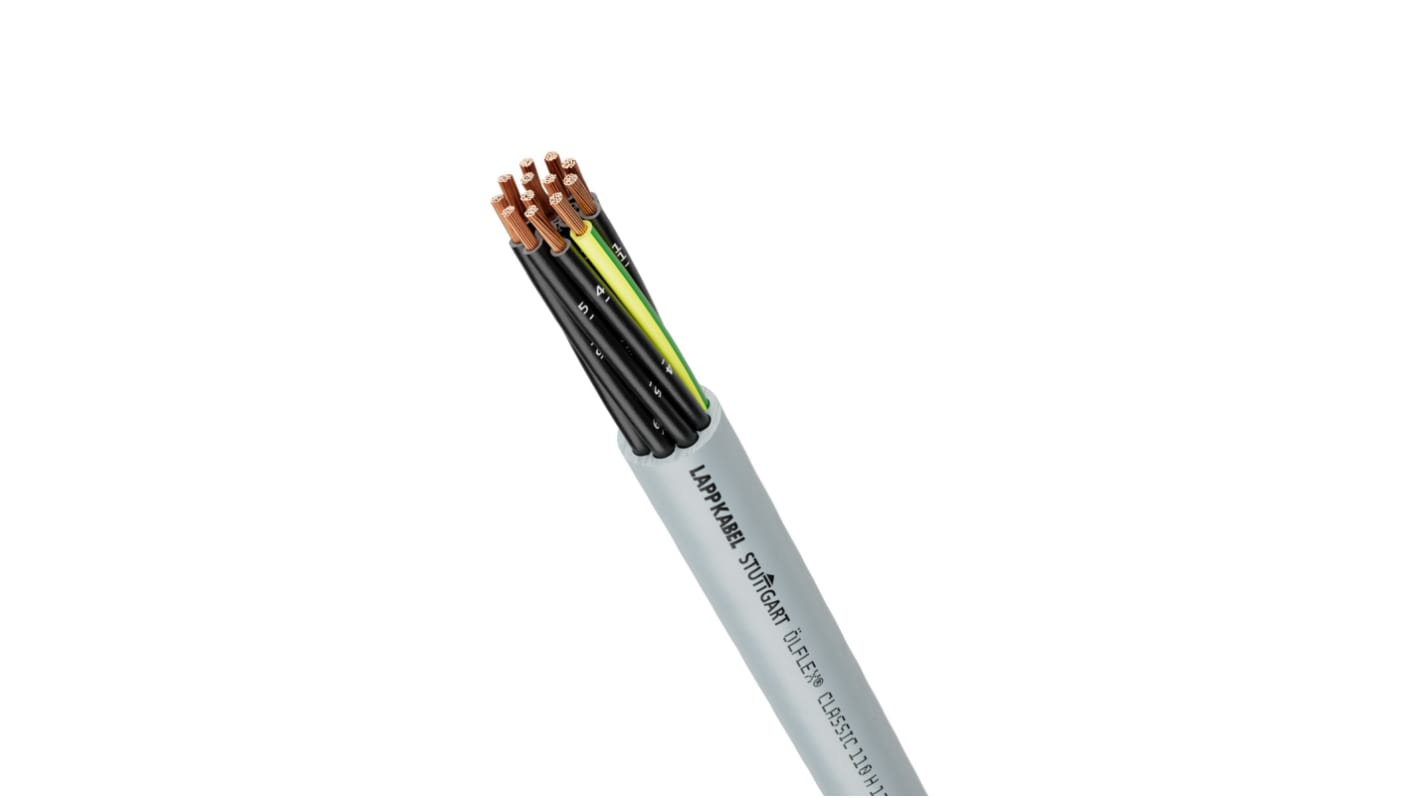

Lapp ÖLFLEX CLASSIC 110 Control Cable, 12 Cores, 1.5 mm² CSA 16 AWG, Unscreened, 50 m, Grey Halogen Free Compound Sheath
- RS Stock No.:
- 278-4497
- Mfr. Part No.:
- 10019935
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£529.31
(exc. VAT)
£635.17
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £529.31 | £10.586 |
*price indicative
- RS Stock No.:
- 278-4497
- Mfr. Part No.:
- 10019935
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX CLASSIC 110 | |
| Product Type | Control Cable | |
| Number of Cores | 12 | |
| Cross Sectional Area | 1.5 mm² | |
| Conductor Material | Bare Copper | |
| Jacket Material | Halogen Free Compound | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Cable Length | 50m | |
| Outside Diameter | 12.2 mm | |
| Voltage | 4000 V | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Stranded | |
| Standards/Approvals | UL | |
| Maximum Operating Temperature | 80°C | |
| American Wire Gauge | 16AWG | |
| Fire Behaviour | Flame Retardant | |
| Core Strands | 12 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC 110 | ||
Product Type Control Cable | ||
Number of Cores 12 | ||
Cross Sectional Area 1.5 mm² | ||
Conductor Material Bare Copper | ||
Jacket Material Halogen Free Compound | ||
Jacket Colour Grey | ||
Screened/Unscreened Unscreened | ||
Cable Length 50m | ||
Outside Diameter 12.2 mm | ||
Voltage 4000 V | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Stranded | ||
Standards/Approvals UL | ||
Maximum Operating Temperature 80°C | ||
American Wire Gauge 16AWG | ||
Fire Behaviour Flame Retardant | ||
Core Strands 12 | ||
- COO (Country of Origin):
- FR
The Lapp CLASSIC 110 H Flexible power and control Cable is a low smoke, zero halogen (LSZH), multi-conductor control and power cable with improved oil resistance and flame protection. It is for use in all electrical equipment in dry or damp conditions. It is UV and weather resistant.
Halogen free compound
Cores are stranded in layers
Taping non woven wrapping optional
