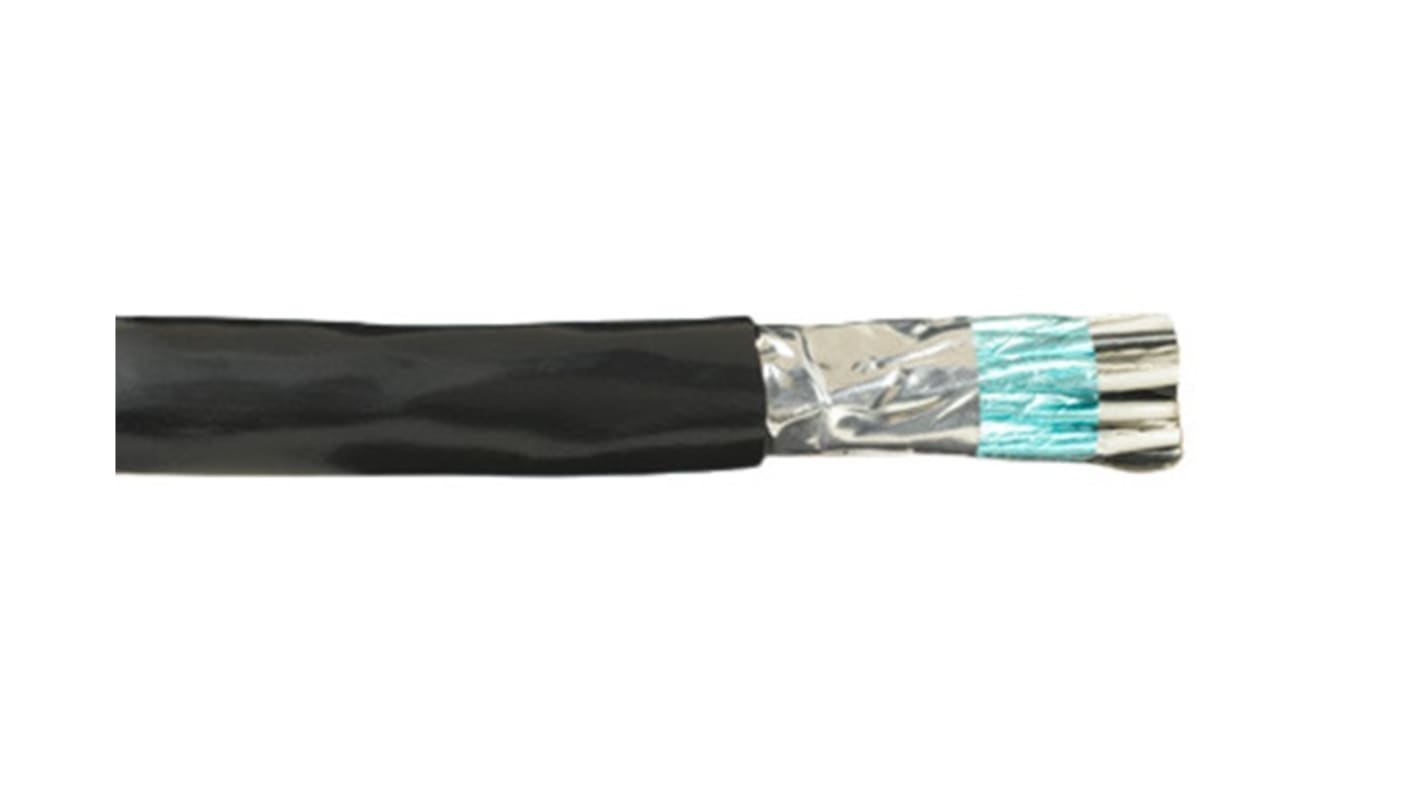

Alpha Wire Alpha Essentials Communication & Control Control Cable, 3 Cores, 0.35 mm² 22 AWG, Screened, 1000 ft, Grey
- RS Stock No.:
- 277-5675
- Mfr. Part No.:
- 3222 SL001
- Brand:
- Alpha Wire
Subtotal (1 reel of 305 metres)*
£947.88
(exc. VAT)
£1,137.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £947.88 | £3.108 |
*price indicative
- RS Stock No.:
- 277-5675
- Mfr. Part No.:
- 3222 SL001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Product Type | Control Cable | |
| Series | Alpha Essentials Communication & Control | |
| Number of Cores | 3 | |
| Conductor Material | Tin Copper Wire | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Screened | |
| Armoured | No | |
| Cable Length | 1000ft | |
| Outside Diameter | 4.67 mm | |
| Voltage | 600 Vrms | |
| Minimum Operating Temperature | -55°C | |
| Standards/Approvals | Military a) Compon ENt 1 MIL W 16878/Type B/N 105°C / 600 VRMS | |
| Maximum Operating Temperature | 105°C | |
| Cable CSA | 0.35 mm² | |
| Hazardous Area Certification | EU | |
| American Wire Gauge | 22AWG | |
| Core Strands | 19 | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Product Type Control Cable | ||
Series Alpha Essentials Communication & Control | ||
Number of Cores 3 | ||
Conductor Material Tin Copper Wire | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Screened/Unscreened Screened | ||
Armoured No | ||
Cable Length 1000ft | ||
Outside Diameter 4.67 mm | ||
Voltage 600 Vrms | ||
Minimum Operating Temperature -55°C | ||
Standards/Approvals Military a) Compon ENt 1 MIL W 16878/Type B/N 105°C / 600 VRMS | ||
Maximum Operating Temperature 105°C | ||
Cable CSA 0.35 mm² | ||
Hazardous Area Certification EU | ||
American Wire Gauge 22AWG | ||
Core Strands 19 | ||
RoHS Status: Exempt
The Alpha Wire Communication and Control Cable helps you get control of your communication and control applications with uncompromising safety. It provide precise signal transmission in computers and control applications.
Satisfy rigorous requirements of EMI performance
Satisfy rigorous requirements of transmission distances
Flexibility
Satisfy rigorous requirements of temperature extremes
