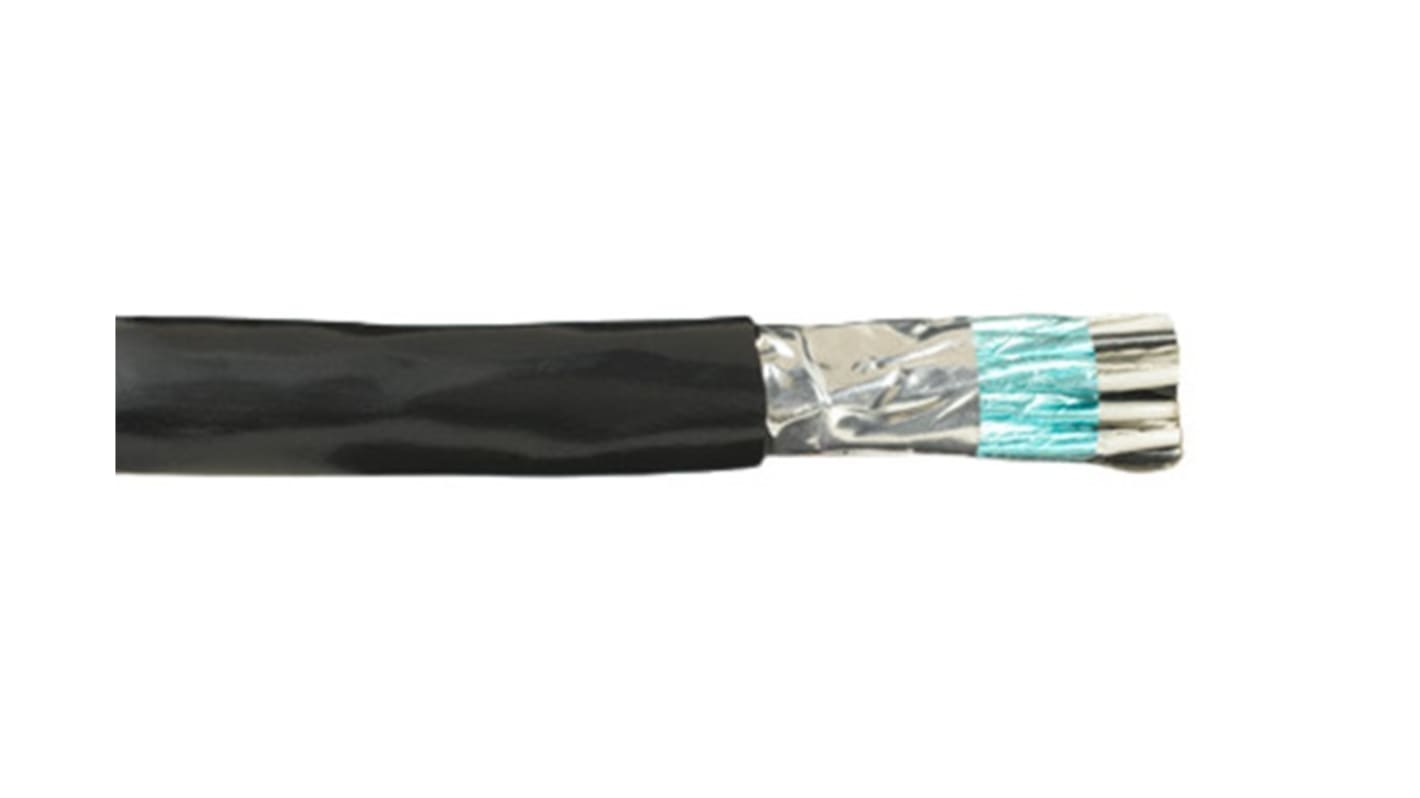

Alpha Wire Alpha Essentials Communication & Control Control Cable, 4 Cores, 0.14 mm² 26 AWG, Screened, 100 ft, Grey
- RS Stock No.:
- 277-5659
- Mfr. Part No.:
- 3203 SL005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£208.53
(exc. VAT)
£250.24
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £208.53 | £6.951 |
*price indicative
- RS Stock No.:
- 277-5659
- Mfr. Part No.:
- 3203 SL005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Product Type | Control Cable | |
| Series | Alpha Essentials Communication & Control | |
| Number of Cores | 4 | |
| Conductor Material | Tin Copper Wire | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Armoured | No | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 0.179 in | |
| Cable Length | 100ft | |
| Voltage | 600 Vrms | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | EU Low Voltage Directive 2014/35/EU, REACH Regulation (EC 1907/2006) | |
| Cable CSA | 0.14 mm² | |
| Hazardous Area Certification | EU | |
| American Wire Gauge | 26AWG | |
| Core Strands | 26 | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Product Type Control Cable | ||
Series Alpha Essentials Communication & Control | ||
Number of Cores 4 | ||
Conductor Material Tin Copper Wire | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Armoured No | ||
Screened/Unscreened Screened | ||
Outside Diameter 0.179 in | ||
Cable Length 100ft | ||
Voltage 600 Vrms | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals EU Low Voltage Directive 2014/35/EU, REACH Regulation (EC 1907/2006) | ||
Cable CSA 0.14 mm² | ||
Hazardous Area Certification EU | ||
American Wire Gauge 26AWG | ||
Core Strands 26 | ||
RoHS Status: Exempt
The Alpha Wire Communication and Control Cable helps you get control of your communication and control applications with uncompromising safety. It provide precise signal transmission in computers and control applications.
Satisfy rigorous requirements of EMI performance
Satisfy rigorous requirements of transmission distances
Flexibility
Satisfy rigorous requirements of temperature extremes
