RS PRO Control Cable, 5 Cores, 2.5 mm², SY, Screened, 50m, Transparent PVC Sheath

RS Stock No.:: 196-4727
Brand:: RS PRO

RS PRO Control Cable, 5 Cores, 2.5 mm², SY, Screened, 50m, Transparent PVC Sheath

Subtotal (1 reel of 50 metres)*

£222.47

(exc. VAT)

£266.96

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

17 unit(s) ready to ship
Plus 19 unit(s) shipping from 20 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£222.47	£4.449

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Lapp ÖLFLEX CLASSIC 100 SY Control Cable, 5 Cores, 2.5 mm², SY, Screened, 50m, Grey PVC Sheath, 14 AWG

RS Stock No.: 444-0503

1 Reel of 50 Metre(s)

£402.81

(exc. VAT)

£483.37

(inc. VAT)

RS Stock No.:: 196-4727
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Number of Cores	5
	Cross Sectional Area	2.5 mm²
	Conductor Material	Annealed Copper
	Sheath Material	PVC
	Sheath Colour	Transparent
	Control Cable Type	SY
	Screened/Unscreened	Screened
	Screen Type	Galvanised Steel
	Armoured	Yes
	Minimum Bend Radius	6 x Diameter
	Outer Diameter	13.3mm
	Length	50m
	Voltage Rating	300/500 V
	Standards Met	BS EN 50525
	CPR Certification	Eca
	Maximum Operating Temperature	+70°C
	Earth Cable	Yes
	Bedding Material	PVC
	Insulation Material	PVC
	Cable Shape	Multicore
	Core Strands	50/0.25 mm
	Minimum Operating Temperature	-15°C

	Select all
	Brand RS PRO
	Number of Cores 5
	Cross Sectional Area 2.5 mm²
	Conductor Material Annealed Copper
	Sheath Material PVC
	Sheath Colour Transparent
	Control Cable Type SY
	Screened/Unscreened Screened
	Screen Type Galvanised Steel
	Armoured Yes
	Minimum Bend Radius 6 x Diameter
	Outer Diameter 13.3mm
	Length 50m
	Voltage Rating 300/500 V
	Standards Met BS EN 50525
	CPR Certification Eca
	Maximum Operating Temperature +70°C
	Earth Cable Yes
	Bedding Material PVC
	Insulation Material PVC
	Cable Shape Multicore
	Core Strands 50/0.25 mm
	Minimum Operating Temperature -15°C

COO (Country of Origin):: GB

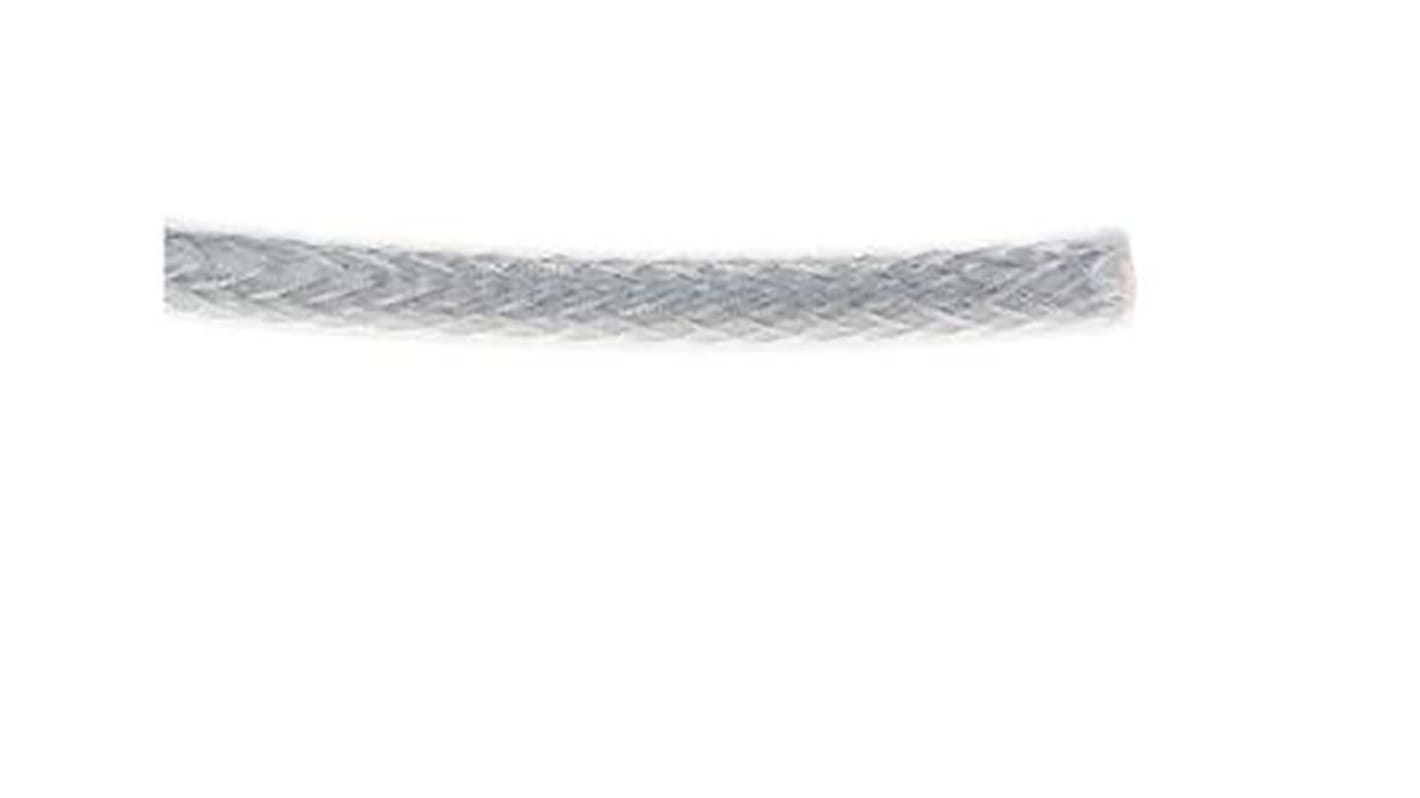

RS PRO 5-Core SY Control Cable 2.5 mm², 50 m, Screened

This 5-core SY control cable, part of the RS PRO range, allows you to connect control units to equipment such as production lines and conveyors.

The cable is manufactured to withstand damage or stress, while remaining flexible. It can do this thanks to its steel braiding, which is covered with a transparent plastic sheath. The braiding is also galvanised for extra protection against corrosion. This cable is best suited to internal dry, damp or wet environments but can also be used outdoors with additional protection. As it comes in a length of 50 metres, you can use it for long-distance or short-distance applications.

This cabling is used in many industries including manufacturing, construction and transport. It meets safety standard BS EN 50525 (British Standard, European Norm) for rigid and flexible cables. It's also compliant with RoHS (Restrictions of Hazardous Substances).

Features and Benefits

• SY Control Cable
• Cross-sectional area of 2.5 mm²
• Outer diameter of 13.3 mm
• Length of 50 m
• Core strands of 50 / 0.25 mm
• Minimum bend radius of 6 x Ø (six times the diameter)
• Minimum operating temperature of -15°C
• Maximum operating temperature of +70°C
• Voltage rating of 300 / 500 V
• Meets standard BS EN (British Standard, European Norm) 50525 for rigid and flexible cables
