RS PRO Control Cable, 3 Cores, 4 mm², SY, Screened, 50m, Transparent PVC Sheath
- RS Stock No.:
- 196-4689
- Brand:
- RS PRO
Subtotal (1 reel of 50 metres)*
£213.80
(exc. VAT)
£256.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
- Plus 6 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £213.80 | £4.276 |
*price indicative
- RS Stock No.:
- 196-4689
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Cores | 3 | |
Cross Sectional Area | 4 mm² | |
Conductor Material | Annealed Copper | |
Sheath Material | PVC | |
Control Cable Type | SY | |
Sheath Colour | Transparent | |
Screened/Unscreened | Screened | |
Screen Type | Galvanised Steel | |
Armoured | Yes | |
Length | 50m | |
Outer Diameter | 13mm | |
Minimum Bend Radius | 6 x Diameter | |
Voltage Rating | 300/500 V | |
Standards Met | BS EN 50525 | |
CPR Certification | Eca | |
Maximum Operating Temperature | +70°C | |
Cable Shape | Multicore | |
Minimum Operating Temperature | -15°C | |
Core Strands | 56/0.3 mm | |
Insulation Material | PVC | |
Earth Cable | Yes | |
Bedding Material | PVC | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Cores 3 | ||
Cross Sectional Area 4 mm² | ||
Conductor Material Annealed Copper | ||
Sheath Material PVC | ||
Control Cable Type SY | ||
Sheath Colour Transparent | ||
Screened/Unscreened Screened | ||
Screen Type Galvanised Steel | ||
Armoured Yes | ||
Length 50m | ||
Outer Diameter 13mm | ||
Minimum Bend Radius 6 x Diameter | ||
Voltage Rating 300/500 V | ||
Standards Met BS EN 50525 | ||
CPR Certification Eca | ||
Maximum Operating Temperature +70°C | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -15°C | ||
Core Strands 56/0.3 mm | ||
Insulation Material PVC | ||
Earth Cable Yes | ||
Bedding Material PVC | ||
- COO (Country of Origin):
- GB

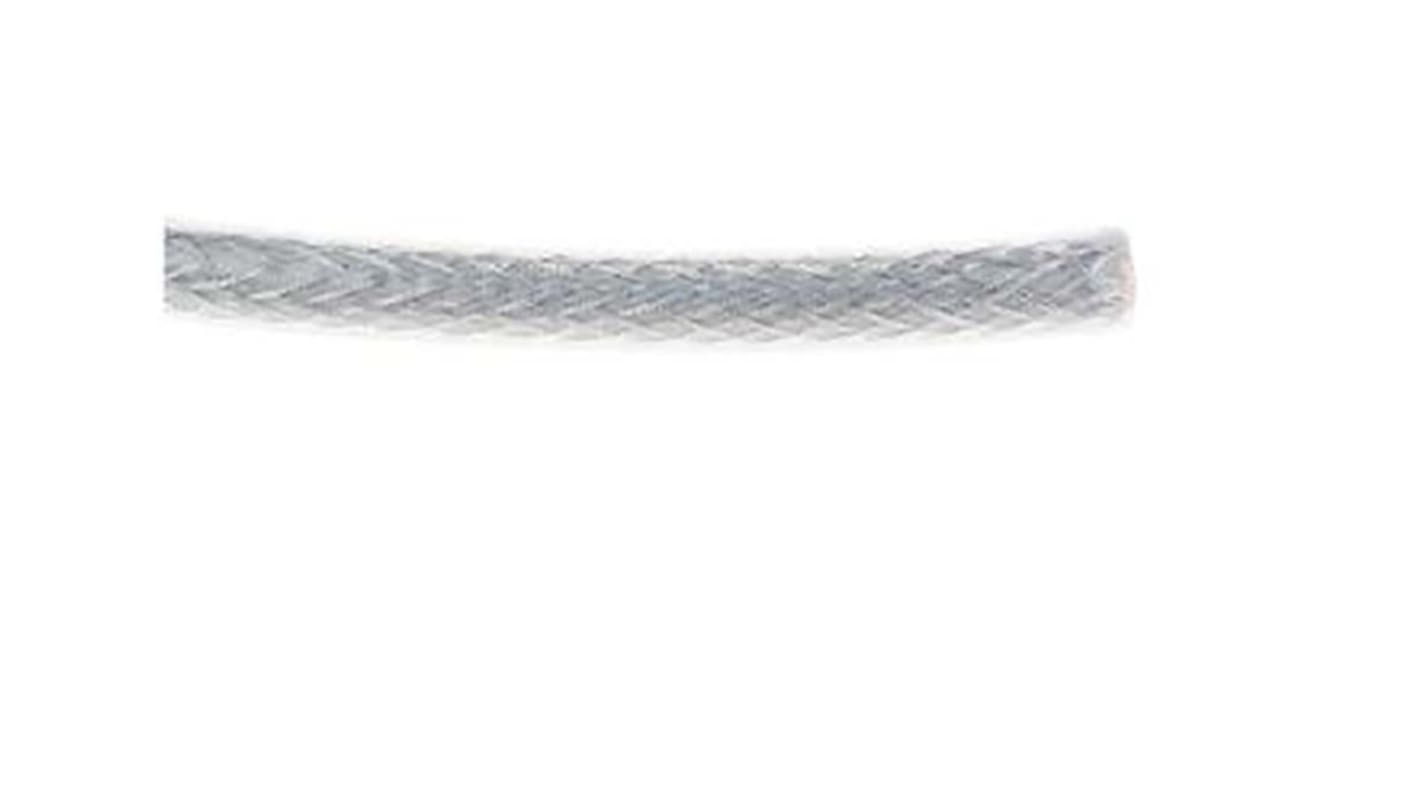

RS PRO 3 Core SY Control Cable 4 mm², 50 m, Screened
Use this RS PRO three-core SY control cable to manage your electrical systems in harsh conditions. Fit the cable into hard to reach ports and outlets with the flexible cable design.
The wire is encased in a galvanised steel wire braid (GSWB) to stop rust developing and connection problems. If connection issues do occur, the transparent polyvinyl chloride (PVC) sheath will allow you to locate precisely if there is any wear and tear on the cable.
Any water drips or spikes in temperature are resisted by the layered and durable construction of the cable. You can use it in automation industries such as conveyors, assemblies and production lines.
The wire is encased in a galvanised steel wire braid (GSWB) to stop rust developing and connection problems. If connection issues do occur, the transparent polyvinyl chloride (PVC) sheath will allow you to locate precisely if there is any wear and tear on the cable.
Any water drips or spikes in temperature are resisted by the layered and durable construction of the cable. You can use it in automation industries such as conveyors, assemblies and production lines.
Features and Benefits
• Armoured
• Polyvinyl chloride (PVC) insulation, bedding and sheath material
• Multicore cable shape
• Annealed copper conductor material
• 56 core strands of 0.3 mm
• Cross-sectional area of 4 mm²
• Earth cable
• Length of 50 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -15°C
• Minimum bend radius of 6 x diameter
• Three cores
• Outer diameter of 13 mm
• Galvanised steel screen type
• Screened
• Transparent sheath colour
• Galvanised steel wire braid (GSWB) shielding
• Conforms to BS EN 50525 standards
• Voltage rating of 300/500 V
• Polyvinyl chloride (PVC) insulation, bedding and sheath material
• Multicore cable shape
• Annealed copper conductor material
• 56 core strands of 0.3 mm
• Cross-sectional area of 4 mm²
• Earth cable
• Length of 50 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -15°C
• Minimum bend radius of 6 x diameter
• Three cores
• Outer diameter of 13 mm
• Galvanised steel screen type
• Screened
• Transparent sheath colour
• Galvanised steel wire braid (GSWB) shielding
• Conforms to BS EN 50525 standards
• Voltage rating of 300/500 V
