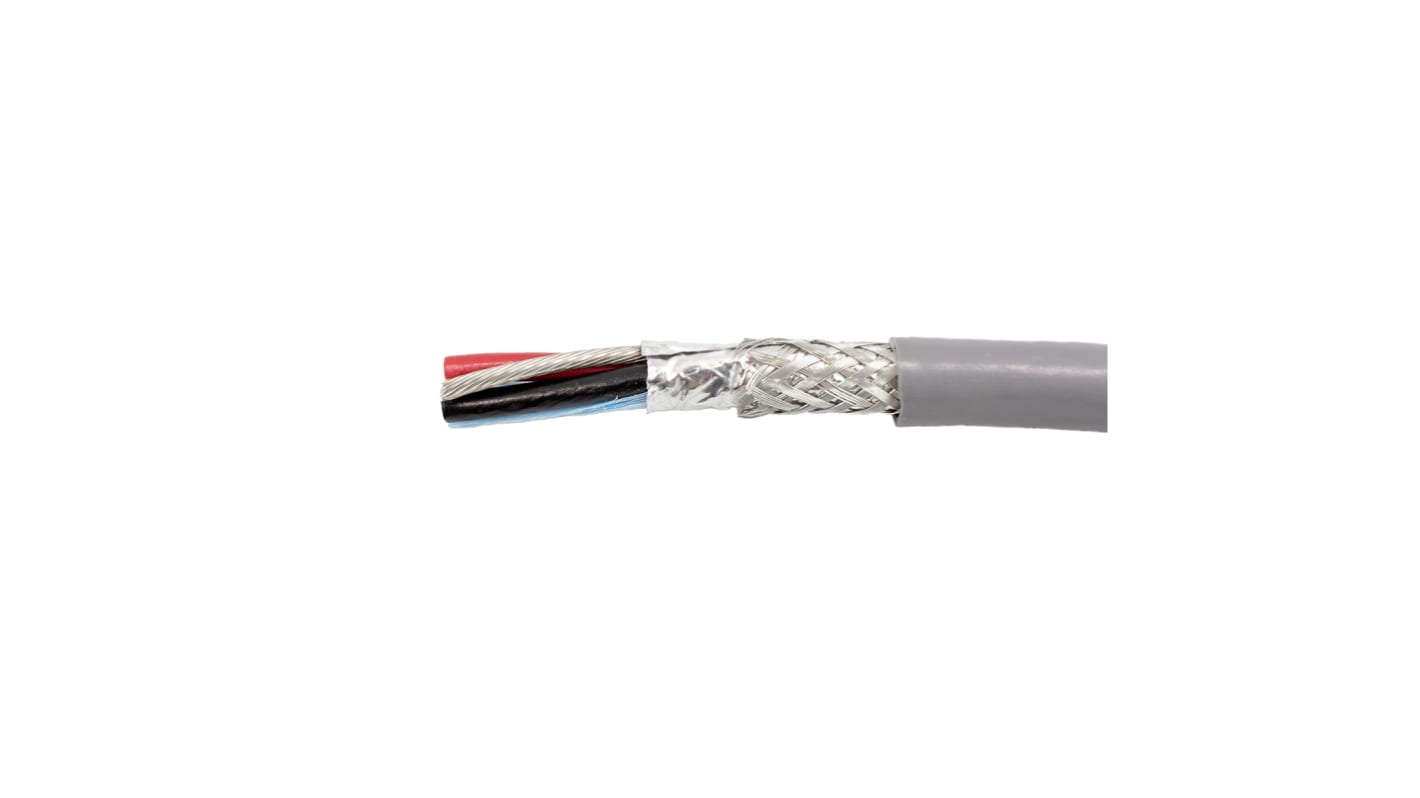

Alpha Wire Alpha Essentials Communication & Control Control Cable, 3 Cores, Screened, 305m, Grey PVC Sheath, 22 AWG
- RS Stock No.:
- 187-2054
- Mfr. Part No.:
- 6339 SL001
- Brand:
- Alpha Wire
Available to back order for despatch 25/07/2024
Added
Price Each
£1.813
(exc. VAT)
£2.176
(inc. VAT)
Units | Per unit | Per Reel* |
305 + | £1.813 | £552.965 |
*price indicative |
- RS Stock No.:
- 187-2054
- Mfr. Part No.:
- 6339 SL001
- Brand:
- Alpha Wire
Technical Reference
Legislation and Compliance
Product Details
Our line-up of standard communication and control cables gives you maximum choice and fewer trade-offs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems
Specifications
Attribute | Value |
---|---|
Series | Alpha Essentials Communication & Control |
Number of Cores | 3 |
Screened/Unscreened | Screened |
Length | 305m |
Sheath Colour | Grey |
American Wire Gauge | 22 AWG |
Outer Diameter | 5.28mm |
Sheath Material | PVC |
Conductor Resistance | 16.3 Ω |
Minimum Bend Radius | 10 x Cable Diameter |
Insulation Material | PVC |
Conductor Material | Tinned Copper |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -20°C |
Drain Wire | Yes |
Screen Type | Aluminium Foil |
Core Strands | 7/30 AWG |
Voltage Rating | 300 V |
