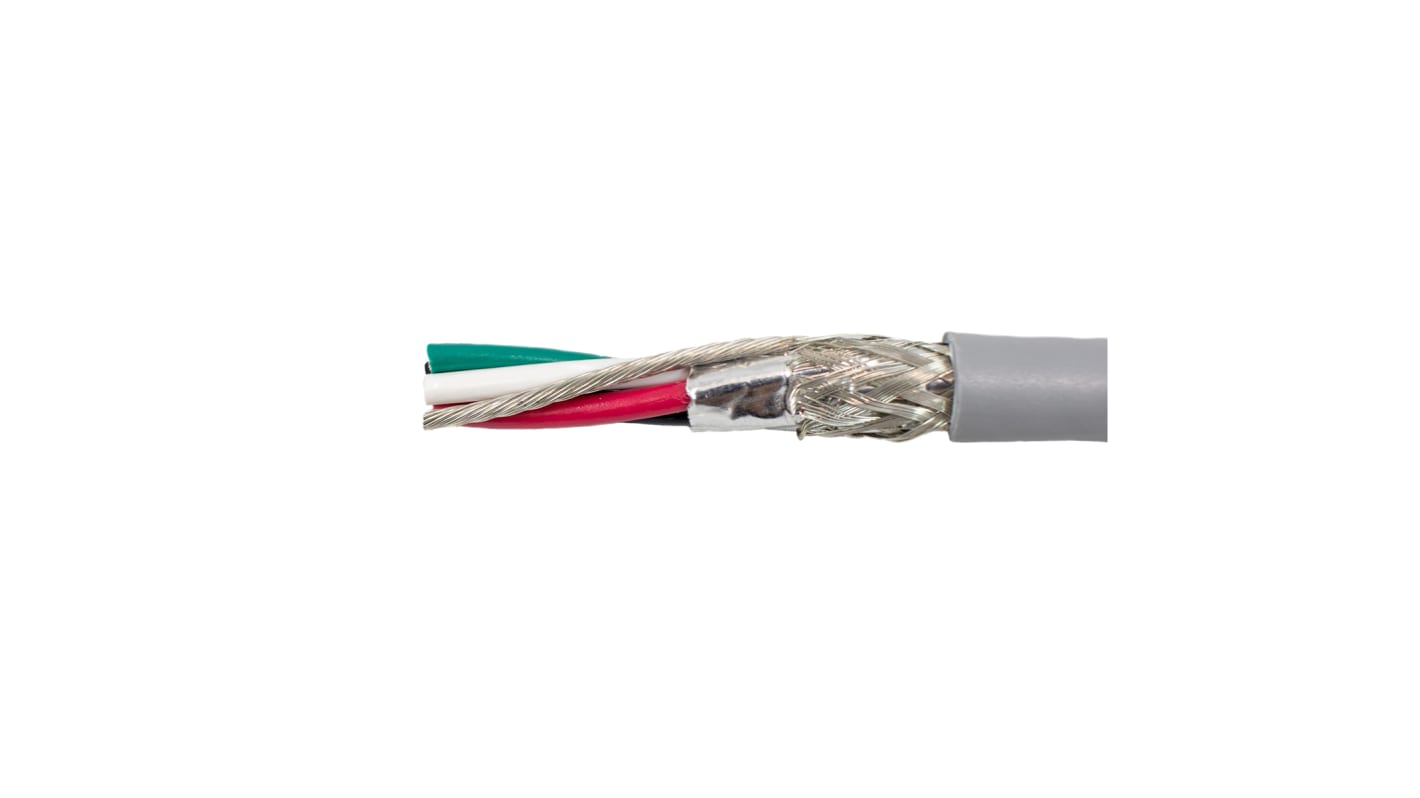

Alpha Wire Alpha Essentials Communication & Control Control Cable, 4 Cores, Screened, 305m, Grey PVC Sheath, 24 AWG
- RS Stock No.:
- 187-2044
- Mfr. Part No.:
- 6328 SL001
- Brand:
- Alpha Wire
Subtotal (1 reel of 305 metres)*
£631.35
(exc. VAT)
£756.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 305 + | £2.07 | £631.35 |
*price indicative
- RS Stock No.:
- 187-2044
- Mfr. Part No.:
- 6328 SL001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Series | Alpha Essentials Communication & Control | |
| Number of Cores | 4 | |
| American Wire Gauge | 24 AWG | |
| Conductor Material | Tinned Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Screen Type | Aluminium Foil | |
| Screened/Unscreened | Screened | |
| Minimum Bend Radius | 10 x Cable Diameter | |
| Outer Diameter | 4.98mm | |
| Length | 305m | |
| Voltage Rating | 300 V | |
| Maximum Operating Temperature | +80°C | |
| Insulation Material | PVC | |
| Minimum Operating Temperature | -20°C | |
| Conductor Resistance | 26 Ω | |
| Core Strands | 7/32 AWG | |
| Drain Wire | Yes | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Series Alpha Essentials Communication & Control | ||
Number of Cores 4 | ||
American Wire Gauge 24 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screen Type Aluminium Foil | ||
Screened/Unscreened Screened | ||
Minimum Bend Radius 10 x Cable Diameter | ||
Outer Diameter 4.98mm | ||
Length 305m | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +80°C | ||
Insulation Material PVC | ||
Minimum Operating Temperature -20°C | ||
Conductor Resistance 26 Ω | ||
Core Strands 7/32 AWG | ||
Drain Wire Yes | ||
Our line-up of standard communication and control cables gives you maximum choice and fewer trade-offs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems
