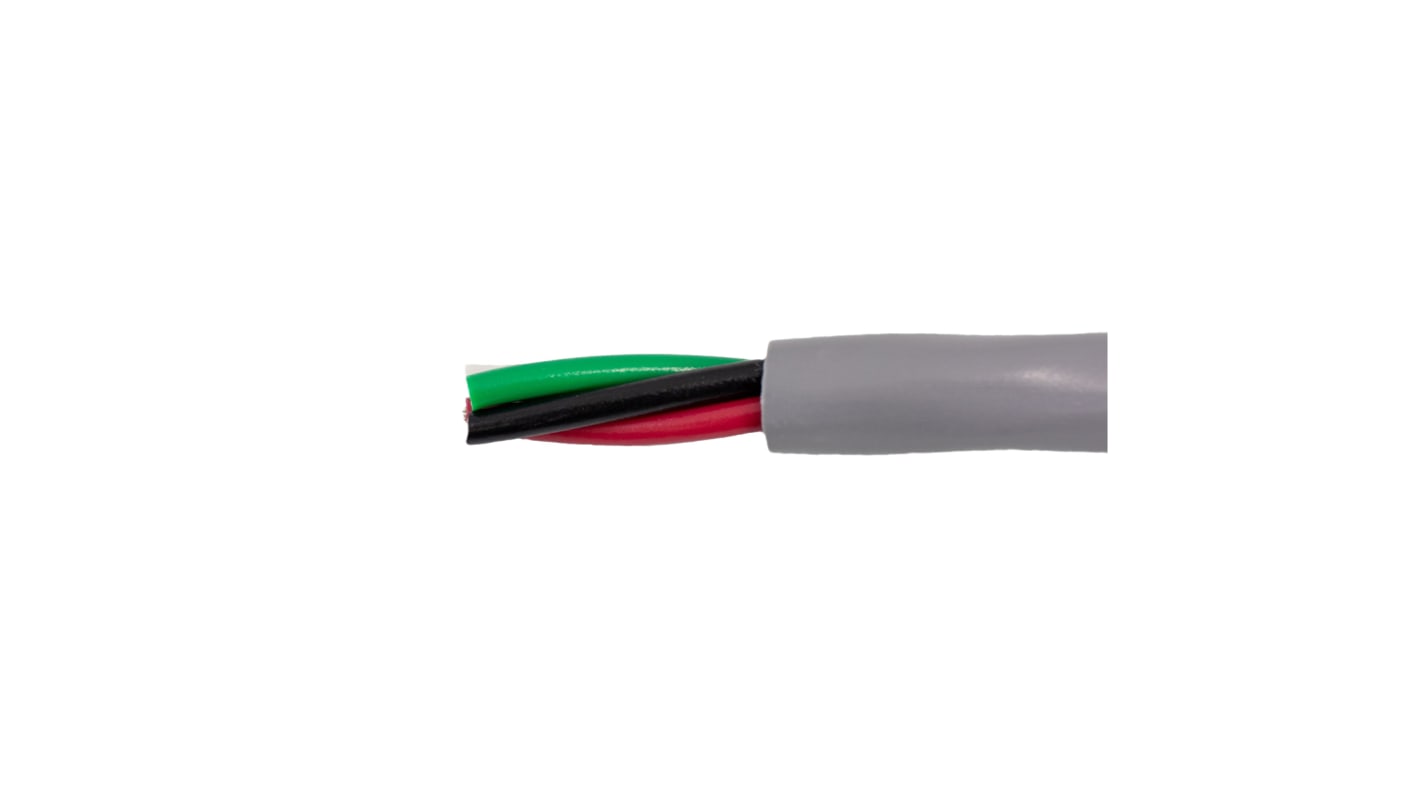

Alpha Wire Alpha Essentials Communication & Control Control Cable, 6 Cores, 0.56 mm², Unscreened, 305m, Grey PVC
- RS Stock No.:
- 187-1936
- Distrelec Article No.:
- 301-51-157
- Mfr. Part No.:
- 1896/6C SL001
- Brand:
- Alpha Wire
Subtotal (1 reel of 305 metres)*
£776.225
(exc. VAT)
£931.47
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Reel* |
---|---|---|
305 + | £2.545 | £776.23 |
*price indicative
- RS Stock No.:
- 187-1936
- Distrelec Article No.:
- 301-51-157
- Mfr. Part No.:
- 1896/6C SL001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Alpha Wire | |
Series | Alpha Essentials Communication & Control | |
Number of Cores | 6 | |
Cross Sectional Area | 0.56 mm² | |
American Wire Gauge | 20 AWG | |
Conductor Material | Tinned Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Screened/Unscreened | Unscreened | |
Length | 305m | |
Outer Diameter | 6.71mm | |
Minimum Bend Radius | 10 x Cable Diameter | |
Voltage Rating | 300 V | |
Standards Met | CE, CSA, UL | |
Maximum Operating Temperature | +80°C | |
Drain Wire | No | |
Core Strands | 7/28 AWG | |
Insulation Material | PVC | |
Minimum Operating Temperature | -20°C | |
Conductor Resistance | 10.2 Ω | |
Select all | ||
---|---|---|
Brand Alpha Wire | ||
Series Alpha Essentials Communication & Control | ||
Number of Cores 6 | ||
Cross Sectional Area 0.56 mm² | ||
American Wire Gauge 20 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screened/Unscreened Unscreened | ||
Length 305m | ||
Outer Diameter 6.71mm | ||
Minimum Bend Radius 10 x Cable Diameter | ||
Voltage Rating 300 V | ||
Standards Met CE, CSA, UL | ||
Maximum Operating Temperature +80°C | ||
Drain Wire No | ||
Core Strands 7/28 AWG | ||
Insulation Material PVC | ||
Minimum Operating Temperature -20°C | ||
Conductor Resistance 10.2 Ω | ||
Belden Alpha Essentials Communication & Control Series Control Cable, 6 Cores, 0.56mm² Cross Sectional Area - 1896/6C SL001
This control cable is designed for various communication and control applications, featuring six cores with a cross-sectional area of 0.56mm². Constructed from tinned copper, it is encased in a durable grey PVC sheath. The cable is 305m in length and has an outer diameter of 6.71mm, making it suitable for demanding installations while maintaining flexibility and ease of handling.
Features & Benefits
• Unscreened design reduces manufacturing complexity and cost
• Tinned copper conductors enhance corrosion resistance and conductivity
• PVC insulation and sheath provide durability in various environments
• Supports a wide temperature range of -20°C to +80°C
• Meets multiple industry standards including CE, CSA, and UL
• Minimum bend radius allows for easier installation in tight spaces
• Tinned copper conductors enhance corrosion resistance and conductivity
• PVC insulation and sheath provide durability in various environments
• Supports a wide temperature range of -20°C to +80°C
• Meets multiple industry standards including CE, CSA, and UL
• Minimum bend radius allows for easier installation in tight spaces
Applications
• Ideal for industrial automation systems
• Used in control circuits within manufacturing equipment
• Suitable for communication networks in commercial settings
• Employed in data acquisition systems for real-time monitoring
• Used in control circuits within manufacturing equipment
• Suitable for communication networks in commercial settings
• Employed in data acquisition systems for real-time monitoring
What core configuration does this cable include and what advantages does it bring?
The six-core configuration facilitates efficient connections for multiple signals, ideal for comprehensive control systems in industrial settings.
How does the temperature rating affect usability in different environments?
With a voltage rating of 300V and an operating range from -20°C to +80°C, it is versatile enough for both indoor and outdoor applications.
What materials are used in the construction of this cable and why are they significant?
Utilising tinned copper and PVC offers a balance of conductivity and protection against environmental factors, enhancing long-term performance in harsh settings.
Can this cable be used for outdoor applications?
While designed primarily for indoor use, its robust PVC sheath does provide a degree of resistance to moisture and UV exposure, making it suitable for certain outdoor applications if protected.
