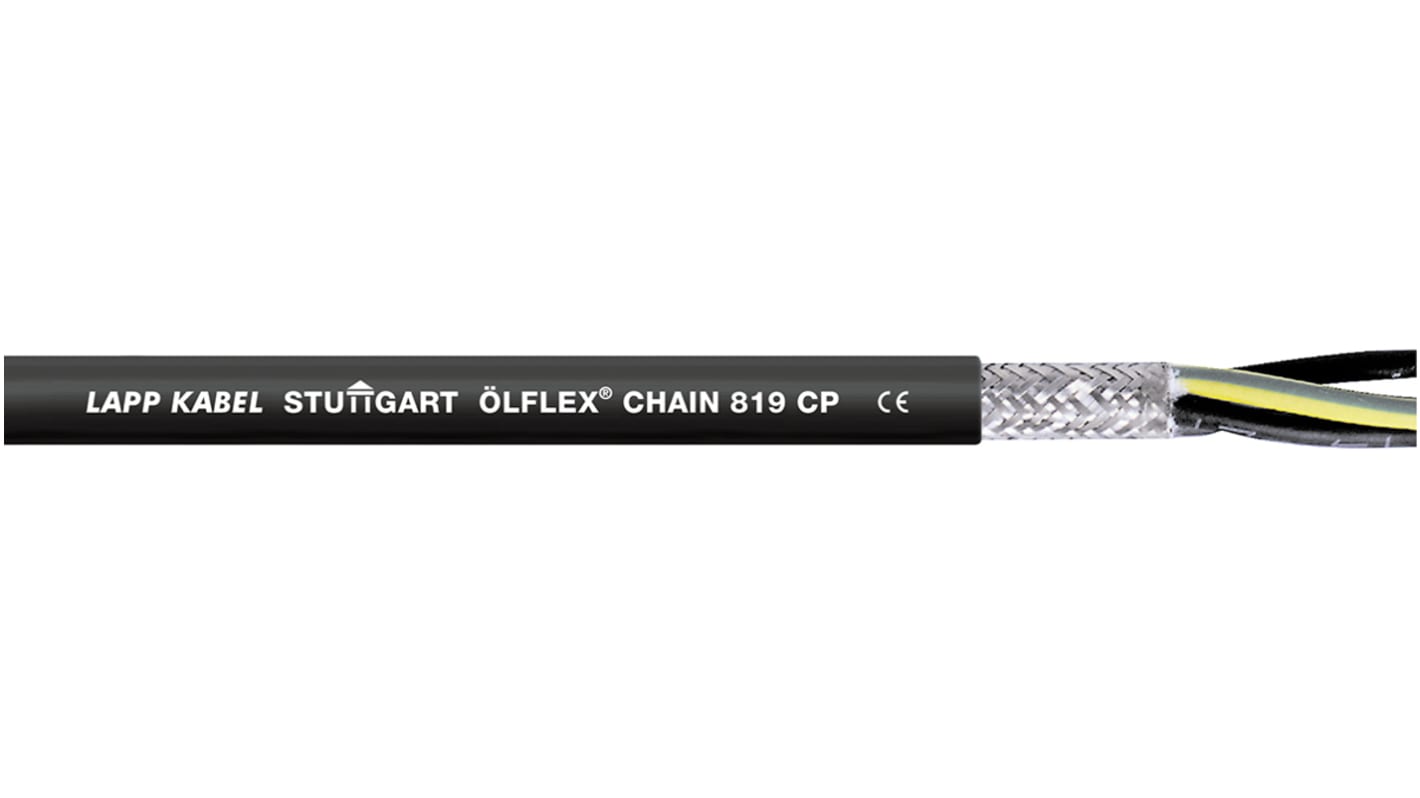

Lapp ÖLFLEX CHAIN 819 CP Control Cable, 25 Cores, 1.5 mm², CY, Screened, 50m, Black PUR Sheath

View all Control Cable

Subtotal (1 reel of 50 metres)*

£1,204.46

(exc. VAT)

£1,445.35

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£1,204.46£24.089

*price indicative

RS Stock No.:
185-5116
Distrelec Article No.:
304-03-803
Mfr. Part No.:
1027937
Brand:
Lapp
Find similar products by selecting one or more attributes.
Select all

Brand

Lapp

Series

ÖLFLEX CHAIN 819 CP

Number of Cores

25

Cross Sectional Area

1.5 mm²

Conductor Material

Copper

Sheath Material

PUR

Control Cable Type

CY

Sheath Colour

Black

Screen Type

Tinned Copper Braid

Screened/Unscreened

Screened

Outer Diameter

18.7mm

Length

50m

Minimum Bend Radius

10 x Diameter (Flexing), 4 x Diameter (Fixed Installation)

Voltage Rating

300/500 V

Standards Met

CSA, cUL Listed, IEC/EN: 60332-1-2, UL File No. E63634, UL Listed, USA

CPR Certification

Eca

Fire Behaviour

Flame Retardant

Maximum Operating Temperature

+80°C

Insulation Material

PVC

Minimum Operating Temperature

-40°C

LAPP Control Cable, 25 Cores, CY Type - ÖLFLEX Series - 1027937


Connect your power supplies and control systems with this LAPP control cable. It has 25 cores for use in light-duty to medium-duty energy supply chains. The cable is flame-retardant, so you can be sure it will stop burning in 20 seconds. It also resists UV radiation, so exposure to sunlight won't degrade the cable sheath. As the outer jacket is made from strong PUR (polyurethane), it's reliable and resists strain and fraying when bent around corners. You can rely on it for use in demanding industrial environments.

Features & Benefits


• PVC insulation material protects the copper cores from oil and chemical contaminants
• Operating temperature range between -40°C and +80°C for use in harsh conditions
• Halogen-free to prevent toxic emissions in the event of fire
• Tinned-copper braided wires safeguard against corrosion wear

Applications


• Computer networks
• Telecommunication equipment
• Industrial machinery
• Instrumentation and measuring

How do I join this cable's unterminated ends to connectors?


Add connectors to the unterminated ends by using a pair of wire strippers to remove a portion of the cable coat. Once the cores are visible, wrap them around the conductors on the connector terminals.

Note

For suitable cable gland see part number 839-5347
