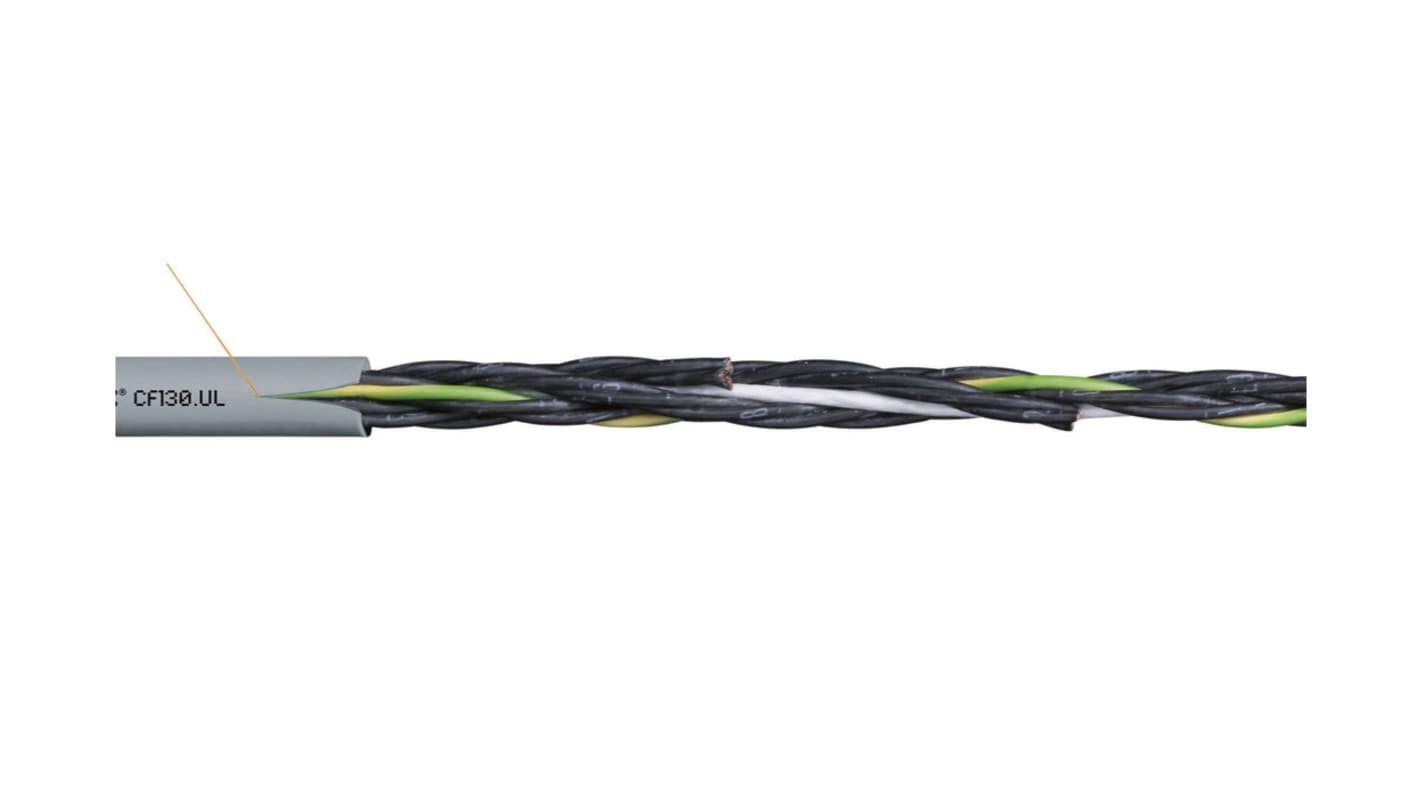

Igus chainflex CF130.UL Control Cable, 7 Cores, 0.5 mm², Unscreened, 50m, Grey PVC Sheath, 20 AWG
- RS Stock No.:
- 185-4807
- Mfr. Part No.:
- CF130.05.07.UL
- Brand:
- Igus
Subtotal (1 reel of 50 metres)*
£163.99
(exc. VAT)
£196.79
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £163.99 | £3.28 |
*price indicative
- RS Stock No.:
- 185-4807
- Mfr. Part No.:
- CF130.05.07.UL
- Brand:
- Igus
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Igus | |
| Series | chainflex CF130.UL | |
| Number of Cores | 7 | |
| Cross Sectional Area | 0.5 mm² | |
| American Wire Gauge | 20 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Screen Type | Unscreened | |
| Screened/Unscreened | Unscreened | |
| Armoured | No | |
| Length | 50m | |
| Outer Diameter | 7.5mm | |
| Minimum Bend Radius | 4 x D | |
| Voltage Rating | 300 V | |
| Current Rating | 10 A | |
| Standards Met | CE, CEI 20-35, cRUus, CSA, CTP, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 | |
| Maximum Operating Temperature | +70°C | |
| Fire Behaviour | Flame Retardant | |
| Earth Cable | Yes | |
| Insulation Material | TPE | |
| Conductor Resistance | 39 Ω/km | |
| Minimum Operating Temperature | -5°C | |
| Cable Shape | Multicore | |
| Oil Resistant | No | |
Select all | ||
|---|---|---|
Brand Igus | ||
Series chainflex CF130.UL | ||
Number of Cores 7 | ||
Cross Sectional Area 0.5 mm² | ||
American Wire Gauge 20 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screen Type Unscreened | ||
Screened/Unscreened Unscreened | ||
Armoured No | ||
Length 50m | ||
Outer Diameter 7.5mm | ||
Minimum Bend Radius 4 x D | ||
Voltage Rating 300 V | ||
Current Rating 10 A | ||
Standards Met CE, CEI 20-35, cRUus, CSA, CTP, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 | ||
Maximum Operating Temperature +70°C | ||
Fire Behaviour Flame Retardant | ||
Earth Cable Yes | ||
Insulation Material TPE | ||
Conductor Resistance 39 Ω/km | ||
Minimum Operating Temperature -5°C | ||
Cable Shape Multicore | ||
Oil Resistant No | ||
- COO (Country of Origin):
- DE
Chainflex® PVC Control Cable CF130
Chainflex® PVC control cable is designed for medium load requirements.
Features and Benefits
• Silicon-free
• Without influence of oil
• Not shielded
• Torsion resistant
• Preferably indoor applications
• Flame-retardant in accordance to IEC 60332-1-2, CEI 20-35, FT1, VW1
• Freely suspended travel distances and for gliding applications up to 50 m, Class 2
• Fine-wire stranded conductor consisting of bare copper wires (following EN 60228)
• Outer sheath: Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10)
• Without influence of oil
• Not shielded
• Torsion resistant
• Preferably indoor applications
• Flame-retardant in accordance to IEC 60332-1-2, CEI 20-35, FT1, VW1
• Freely suspended travel distances and for gliding applications up to 50 m, Class 2
• Fine-wire stranded conductor consisting of bare copper wires (following EN 60228)
• Outer sheath: Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10)
Standards
IEC 60332-1-2, CEI 20-35, FT1, VW1
Outer jacket: PVC
Flame retardant
Silicone-free
Oil resistance: No oil resistance
CFRIP®
Application
For medium duty use
Without influence of oil
Preferably indoor applications
Unsupported travel distances and up to 50 m for gliding applications
Wood/stone processing, packaging industry, supply systems, handling, adjusting equipment
Flame retardant
Silicone-free
Oil resistance: No oil resistance
CFRIP®
Application
For medium duty use
Without influence of oil
Preferably indoor applications
Unsupported travel distances and up to 50 m for gliding applications
Wood/stone processing, packaging industry, supply systems, handling, adjusting equipment
