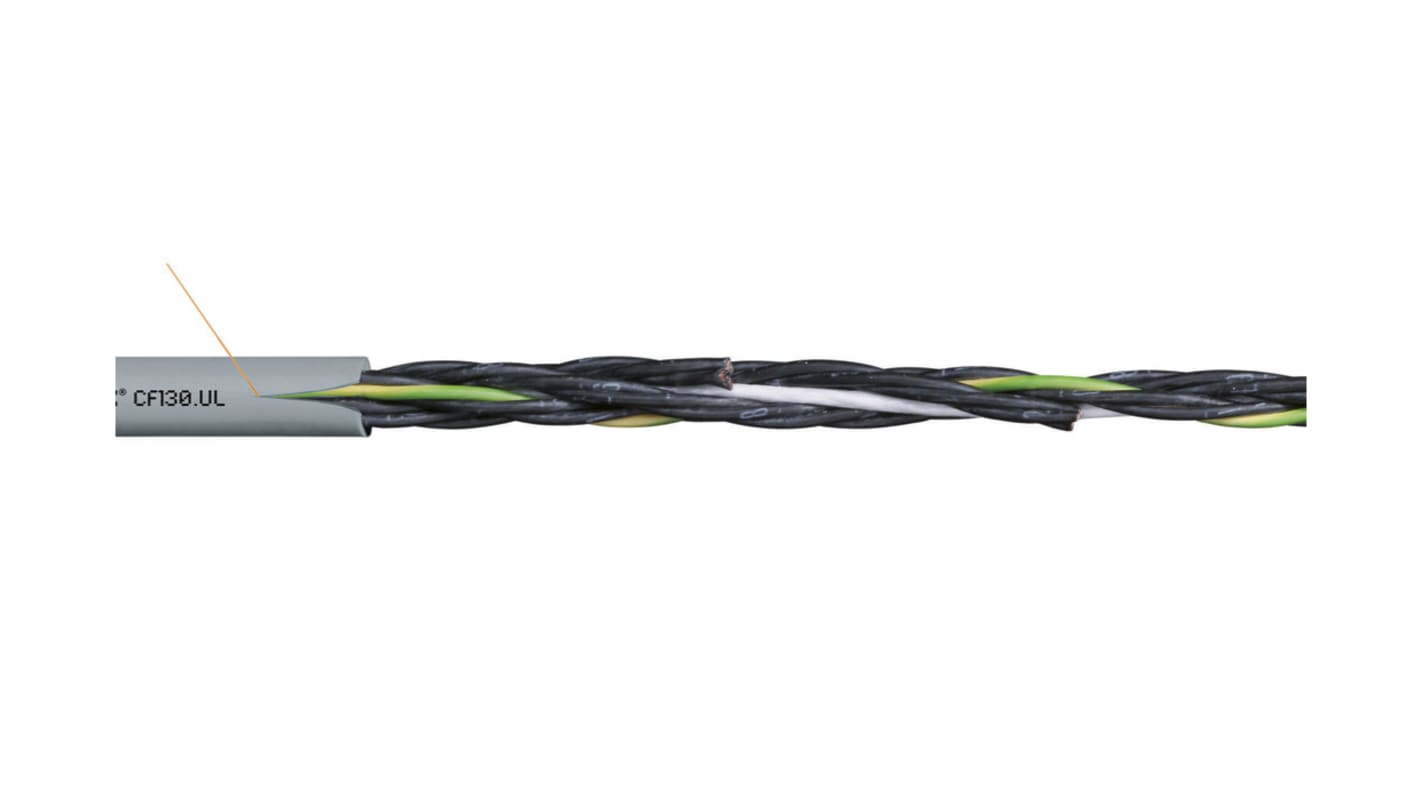

Igus chainflex CF130.UL Control Cable, 3 Cores, 0.5 mm², Unscreened, 50m, Grey PVC Sheath, 20 AWG

RS Stock No.:: 185-4804
Mfr. Part No.:: CF130.05.03.UL
Brand:: Igus

Igus chainflex CF130.UL Control Cable, 3 Cores, 0.5 mm², Unscreened, 50m, Grey PVC Sheath, 20 AWG

2 In stock - FREE next working day delivery available

Price 1 Reel of 50 Metre(s)

£74.74

(exc. VAT)

£89.69

(inc. VAT)

Reel(s)	Per Reel	Per Metre*
1 +	£74.74	£1.495

*price indicative

RS Stock No.:: 185-4804
Mfr. Part No.:: CF130.05.03.UL
Brand:: Igus

Technical Reference

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

Chainflex® PVC Control Cable CF130

Chainflex® PVC control cable is designed for medium load requirements.

Features and Benefits

• Silicon-free
• Without influence of oil
• Not shielded
• Torsion resistant
• Preferably indoor applications
• Flame-retardant in accordance to IEC 60332-1-2, CEI 20-35, FT1, VW1
• Freely suspended travel distances and for gliding applications up to 50 m, Class 2
• Fine-wire stranded conductor consisting of bare copper wires (following EN 60228)
• Outer sheath: Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10)

Standards

IEC 60332-1-2, CEI 20-35, FT1, VW1

Specifications

Attribute	Value
Series	chainflex CF130.UL
Number of Cores	3
Cross Sectional Area	0.5 mm²
Screened/Unscreened	Unscreened
Length	50m
Cable Shape	Multicore
Sheath Colour	Grey
American Wire Gauge	20 AWG
Outer Diameter	5.5mm
Sheath Material	PVC
Standards Met	CE, CEI 20-35, cRUus, CSA, CTP, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1
Insulation Material	TPE
Minimum Bend Radius	4 x D
Conductor Resistance	39 Ω/km
Armoured	No
Voltage Rating	300 V
Conductor Material	Copper
Oil Resistant	No
Maximum Operating Temperature	+70°C
Screen Type	Unscreened
Minimum Operating Temperature	-5°C
Current Rating	10 A
Earth Cable	Yes
Fire Behaviour	Flame Retardant
