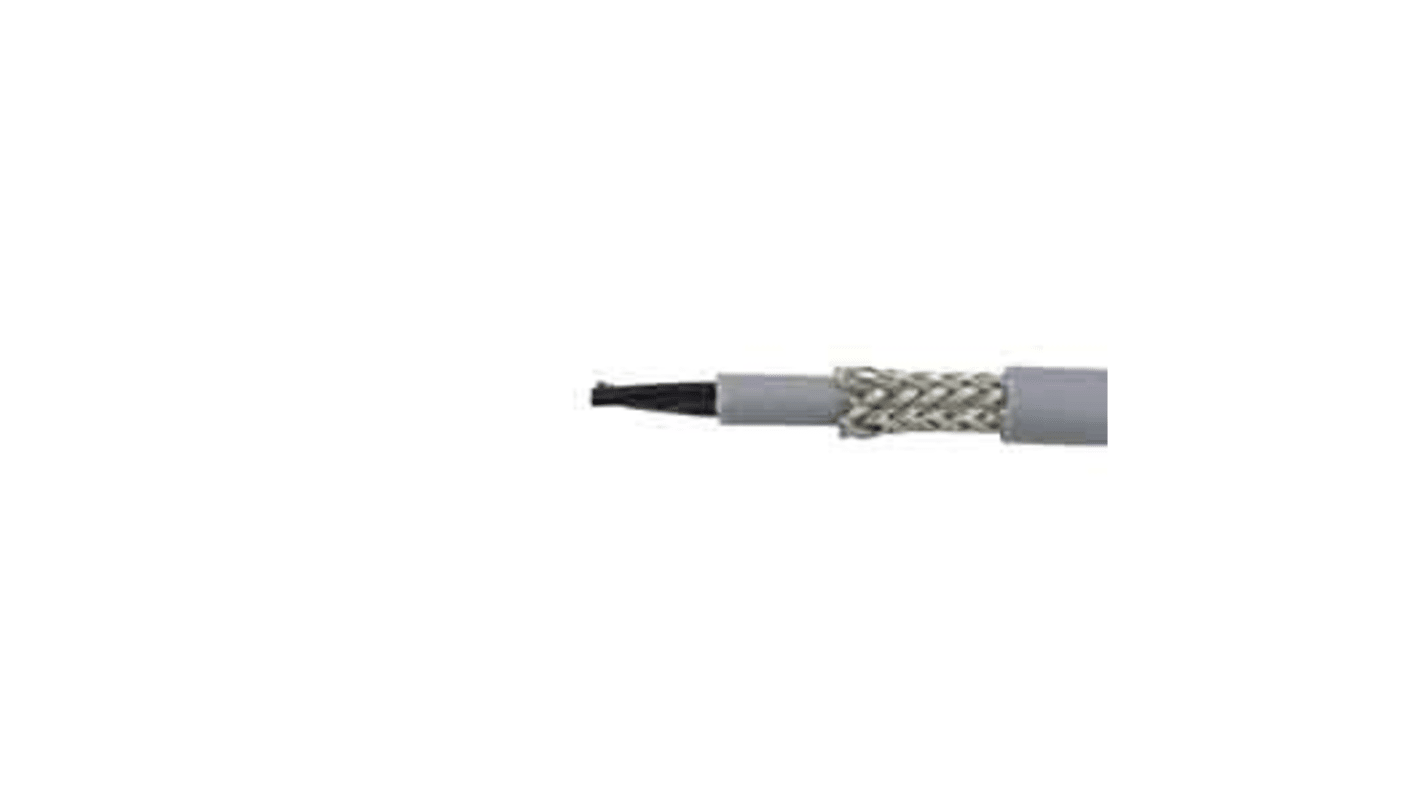

Alpha Wire Pro-Met Control Cable, 9 Cores, 0.5 mm², CY, Screened, 100m, Transparent PVC Sheath
- RS Stock No.:
- 181-1775
- Mfr. Part No.:
- 470095CY CL033
- Brand:
- Alpha Wire
Subtotal (1 reel of 100 metres)*
£359.72
(exc. VAT)
£431.66
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 26 December 2025
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £359.72 | £3.597 |
*price indicative
- RS Stock No.:
- 181-1775
- Mfr. Part No.:
- 470095CY CL033
- Brand:
- Alpha Wire
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Series | Pro-Met | |
| Number of Cores | 9 | |
| Cross Sectional Area | 0.5 mm² | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Control Cable Type | CY | |
| Sheath Colour | Transparent | |
| Screened/Unscreened | Screened | |
| Screen Type | Tinned Copper Braid | |
| Minimum Bend Radius | 18.2 (Dynamic) mm, 5.46 (Static) mm | |
| Length | 100m | |
| Outer Diameter | 0.91mm | |
| Voltage Rating | 300/500 V ac | |
| Standards Met | CE Certified, DIN EN 50290-2-22, DIN VDE 0295 Class 5, EN 60228 Class 5, IEC 60332-1, IEC Certified, REACH EC 1907/2006 | |
| Maximum Operating Temperature | (Dynamic) +70 °C, (Static) +80°C | |
| Fire Behaviour | Flame Retardant | |
| Core Strands | 20/0.177 mm | |
| Conductor Resistance | 39 Ω/km @ 20°C | |
| Minimum Operating Temperature | (Dynamic) -30 °C, (Static) -40°C | |
| Insulation Material | PVC | |
