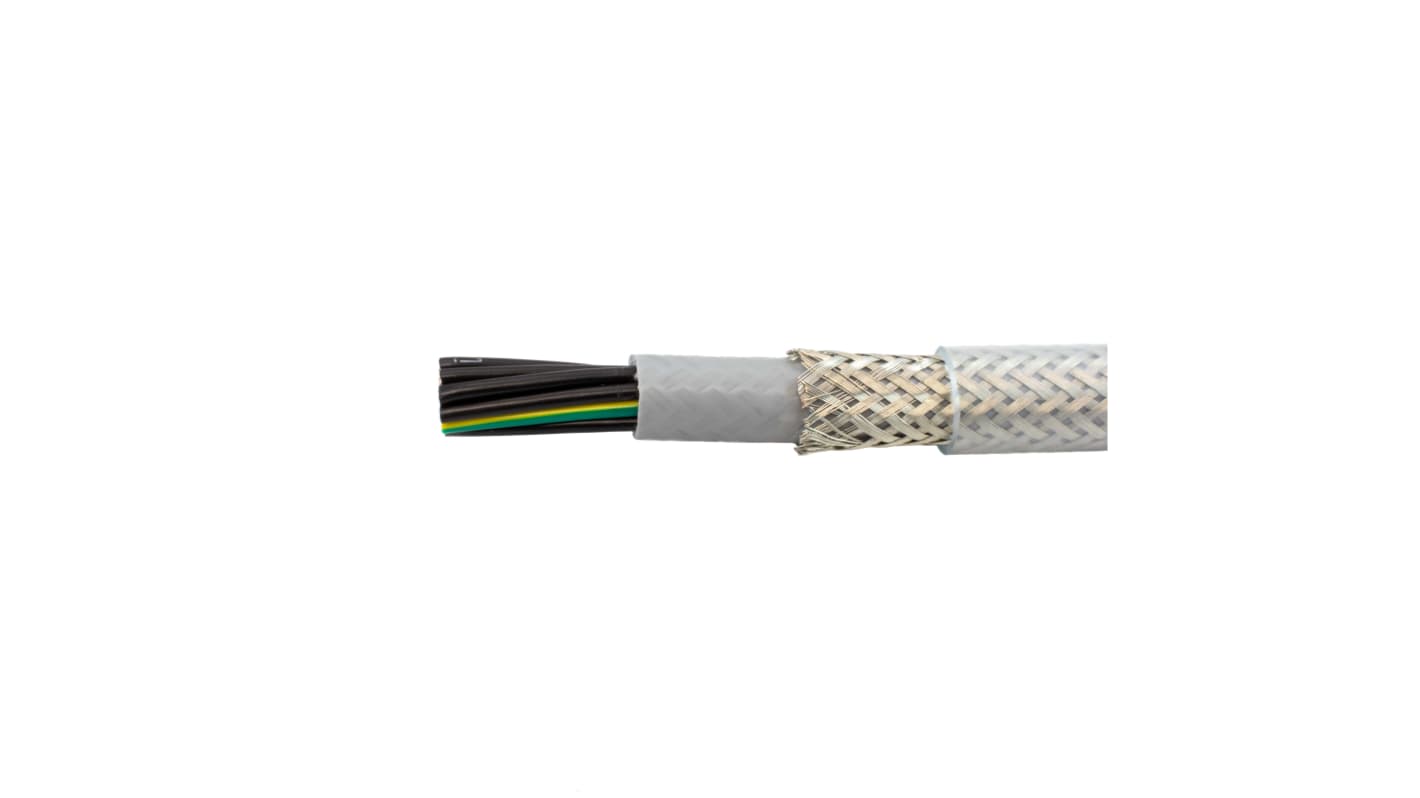

Alpha Wire Pro-Met Control Cable, 9 Cores, 1 mm², CY, Screened, 50m, Grey PVC Sheath

View all Control Cable

Subtotal (1 reel of 50 metres)*

£271.58

(exc. VAT)

£325.90

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
  • Plus 999,999,992 unit(s) shipping from 13 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£271.58£5.432

*price indicative

RS Stock No.:
181-1771
Distrelec Article No.:
301-29-106
Mfr. Part No.:
470091CY GE321
Brand:
Alpha Wire
Find similar products by selecting one or more attributes.
Select all

Brand

Alpha Wire

Series

Pro-Met

Number of Cores

9

Cross Sectional Area

1 mm²

Conductor Material

Copper

Sheath Material

PVC

Sheath Colour

Grey

Control Cable Type

CY

Screen Type

Tinned Copper Braid

Screened/Unscreened

Screened

Outer Diameter

1.26mm

Minimum Bend Radius

25.2 (Dynamic) mm, 7.56 (Static) mm

Length

50m

Voltage Rating

300/500 V ac

Standards Met

CE Certified, DIN EN 50290-2-22, DIN VDE 0295 Class 5, EN 60228 Class 5, IEC 60332-1, IEC Certified, REACH EC 1907/2006

Fire Behaviour

Flame Retardant

Maximum Operating Temperature

(Dynamic) +70 °C, (Static) +80°C

Oil Resistant

Yes

Conductor Resistance

19.5 Ω/km @ 20°C

Drain Wire

No

Insulation Material

PVC

Minimum Operating Temperature

(Dynamic) -30 °C, (Static) -40°C

Core Strands

30/0.20 mm

Belden Pro-Met Series Control Cable, 9 Cores, 1mm² Cross Sectional Area - 470091CY GE321


This control cable is an advanced solution designed for automation and electrical applications. Available in a length of 50m, it features 9 cores with a cross-sectional area of 1mm², constructed with a bare copper conductor and a robust PVC sheath. The cable operates within a voltage rating of 300/500V AC, meeting various stringent standards for safety and performance.

Features & Benefits


• Screened design minimises interference for stable performance
• Flame-retardant construction enhances safety in critical environments
• Oil-resistant materials suitable for harsh outdoor conditions
• Flexible structure allows for easy installation in confined spaces
• Operates effectively in extreme temperatures ranging from -40 °C to +80 °C
• Complies with CE and IEC standards for quality assurance

Applications


• Utilised in industrial automation systems for reliable control signalling
• Suitable for use in machinery where environmental protection is vital
• Employed in electrical distribution networks to ensure safety and efficiency
• Ideal for complex installations requiring multiple core connections

What advantages does a screened design provide in controlling interference?


The screened design helps to effectively reduce electromagnetic interference, ensuring that signals transmitted through the cable remain clear and consistent, enhancing the reliability of control systems.

How does the flame-retardant property contribute to safety?


The flame-retardant material significantly reduces the risk of fire hazards in environments where cables may be exposed to heat or flames, ensuring compliance with safety regulations in critical applications.

Can this cable be used outdoors, and what makes it suitable for such environments?


Yes, this cable is designed for outdoor use thanks to its oil-resistant properties and durable PVC sheath, providing protection against various environmental factors that could compromise performance.

What is the significance of the temperature rating for installation environments?


The temperature rating allows for versatility in installations, as the cable can function effectively in both extreme cold and heat, making it suitable for diverse operational conditions without the risk of failure.

How does the construction of this cable affect its installation?


The flexible construction allows for easier manoeuvrability in tight spaces, facilitating convenient routing during installation, which is beneficial in complex setups and reduces installation time.
