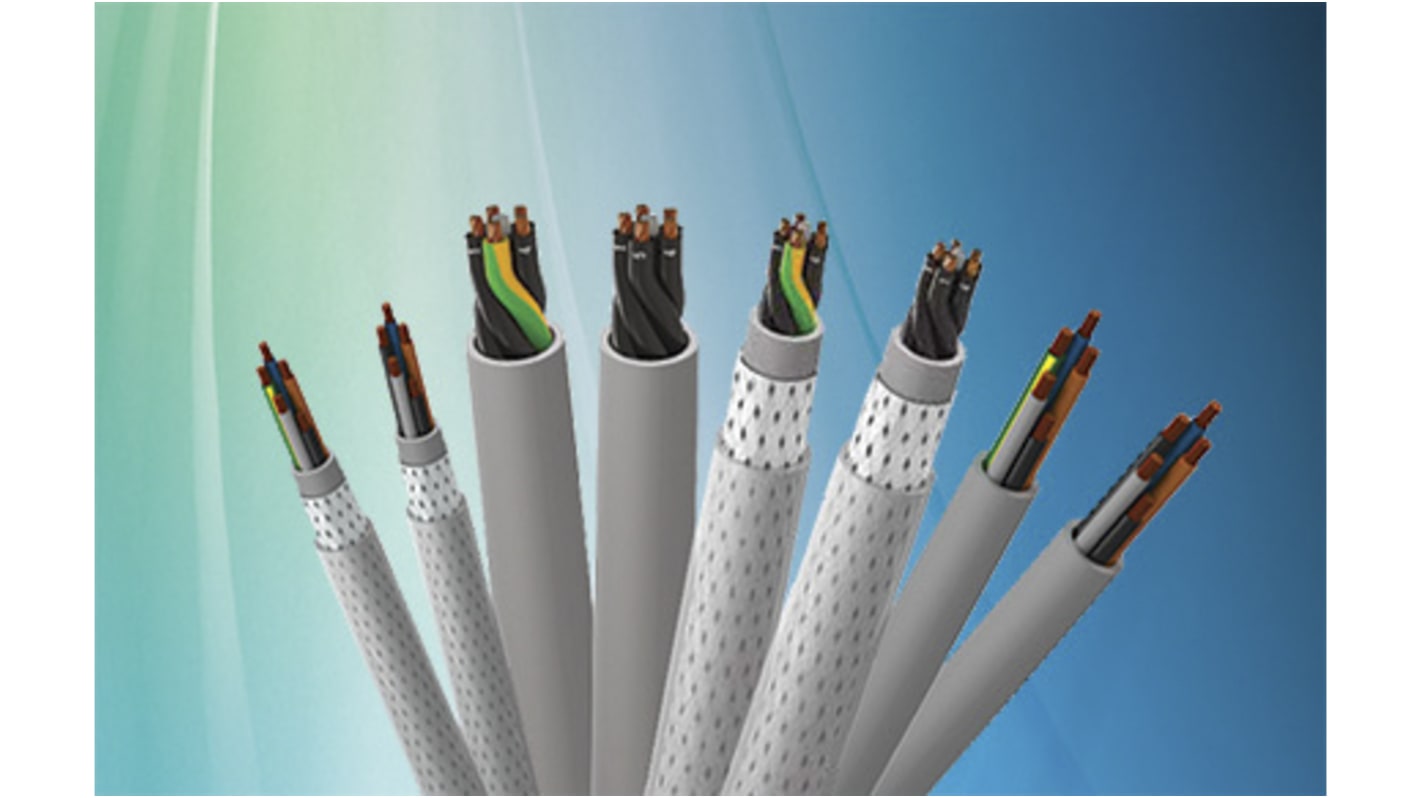

Belden 5GDSY Control Cable, 5 Cores 1.5mm², Screened, 100 m, Grey Polyvinyl Chloride Sheath
- RS Stock No.:
- 176-2409
- Mfr. Part No.:
- 5GDSY-K100
- Brand:
- Belden
Subtotal (1 reel of 100 metres)*
£246.30
(exc. VAT)
£295.56
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 10 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £246.30 | £2.463 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 10 Metre(s)
£81.00
(exc. VAT)
£97.20
(inc. VAT)
- RS Stock No.:
- 176-2409
- Mfr. Part No.:
- 5GDSY-K100
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 5GDSY | |
| Product Type | Control Cable | |
| Number of Cores | 5 | |
| Conductor Material | Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Screened | |
| Cable Length | 100m | |
| Conductor Type | Stranded | |
| Standards/Approvals | DIN VDE 0295, DIN EN 60332‐1‐2, DIN VDE 0482‐332‐1‐2, DIN VDE 0207‐363‐4‐1, IEC 60332‐1‐2, IEC 60228, REACH, DIN EN 50290‐2‐22, EN 50525‐2‐51, CEs, BS 6360, RoHS, IEC 60227‐5, VDE 0281‐13 | |
| Maximum Operating Temperature | 80°C | |
| Cable CSA | 1.5mm² | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Series 5GDSY | ||
Product Type Control Cable | ||
Number of Cores 5 | ||
Conductor Material Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Screened/Unscreened Screened | ||
Cable Length 100m | ||
Conductor Type Stranded | ||
Standards/Approvals DIN VDE 0295, DIN EN 60332‐1‐2, DIN VDE 0482‐332‐1‐2, DIN VDE 0207‐363‐4‐1, IEC 60332‐1‐2, IEC 60228, REACH, DIN EN 50290‐2‐22, EN 50525‐2‐51, CEs, BS 6360, RoHS, IEC 60227‐5, VDE 0281‐13 | ||
Maximum Operating Temperature 80°C | ||
Cable CSA 1.5mm² | ||
- COO (Country of Origin):
- CN
Machines are becoming highly systemized, smaller and compact driven by special requirements of end users and customers. These challenge machine builders who need to stay competitive while ensuring a robust performance for their machine.
Flexible conductor, insulation & sheath material
Oil resistant
Wider fixed temperature range (-40°C To+80°C)
Good shield effectiveness
Good Sunlight (UV) & Chemical Resistant
Environmental friendly cables
Precision control sensors
Multi axis motion control
Temperature controllers
Control panels
Machine cutting tools
Auxiliary equipment
Motor speed controls
Production machinery
Blade pitch control (WT)
Control & instrumentation circuits
Various conductor sizes from 0.14mm² to 35.00 mm²
Bare copper conductors
PVC insulation & jacket / sheath
Voltage (Uo/U) = 300/500V
Variety of insulation & jacket color options
Drum packaging
