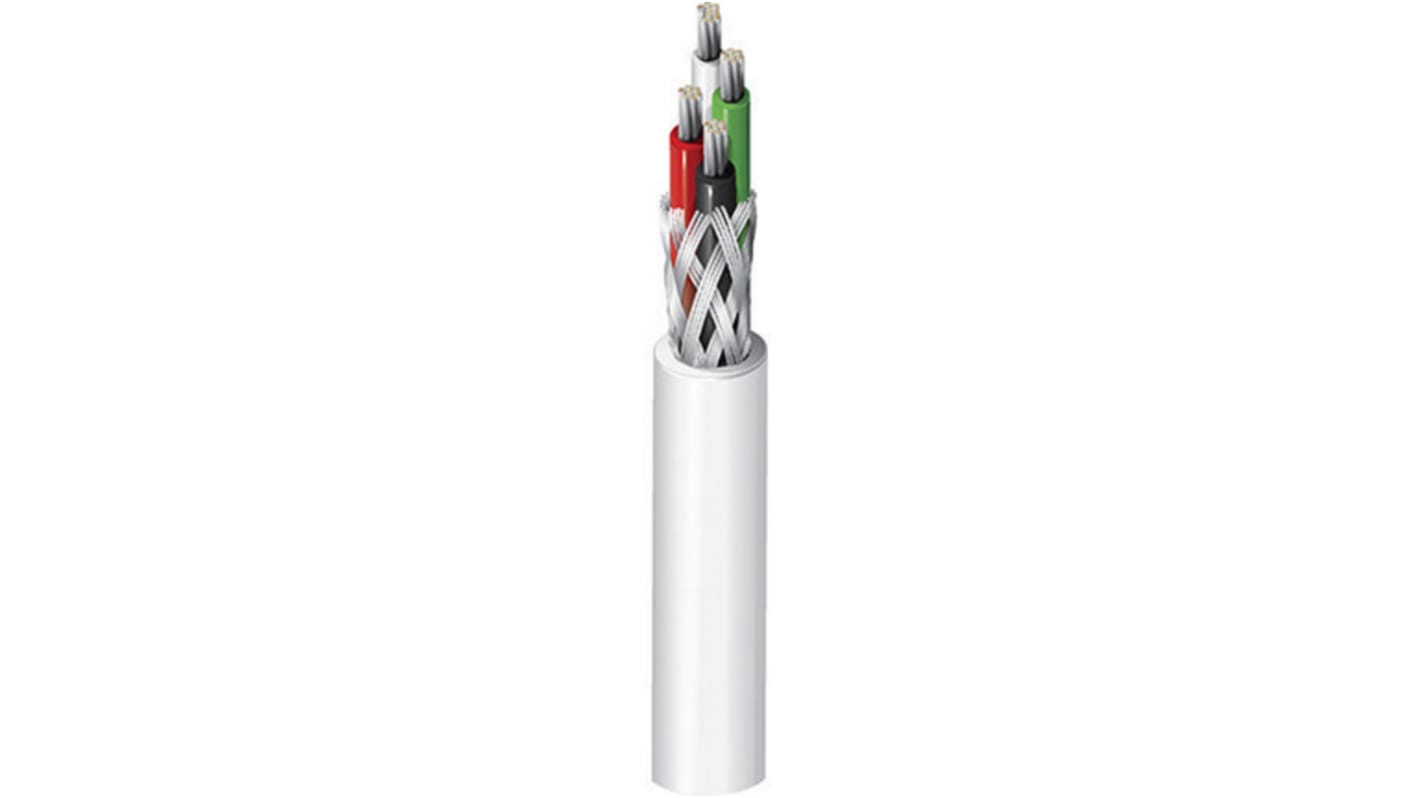

Belden Control Cable, 1 Cores, DEF STAN, Screened, 30m, White TFE Sheath, 22 AWG
- RS Stock No.:
- 176-2093
- Mfr. Part No.:
- 83305E 009100
- Brand:
- Belden
2 In stock - FREE next working day delivery available
Added
Price 1 Reel of 30 Metre(s)
£444.44
(exc. VAT)
£533.33
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £444.44 | £14.815 |
| *price indicative | ||
- RS Stock No.:
- 176-2093
- Mfr. Part No.:
- 83305E 009100
- Brand:
- Belden
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
One 22 AWG stranded (19x34) silver-plated copper conductors, Teflon® (TFE) insulation, silver plated copper braid shield (85% coverage), Teflon® (TFE) jacket.
Specifications
Attribute | Value |
|---|---|
| Number of Cores | 1 |
| Screened/Unscreened | Screened |
| Length | 30m |
| Control Cable Type | DEF STAN |
| Sheath Colour | White |
| CPR Certification | Eca |
| American Wire Gauge | 22 AWG |
| Outer Diameter | 2.286mm |
| Sheath Material | TFE |
| Current Rating | 5 A |
| Insulation Material | TFE |
| Voltage Rating | 600 V |
| Fire Behaviour | Flame Retardant, Low Smoke Zero Halogen (LSZH) |
| Minimum Operating Temperature | -65°C |
| Minimum Bend Radius | 25.4 mm |
| Screen Type | Copper Braid |
| Maximum Operating Temperature | +200°C |
| Conductor Resistance | 14.3 Ω @ 1000ft |
| Conductor Material | Copper |
| Core Strands | 19/34 AWG |
