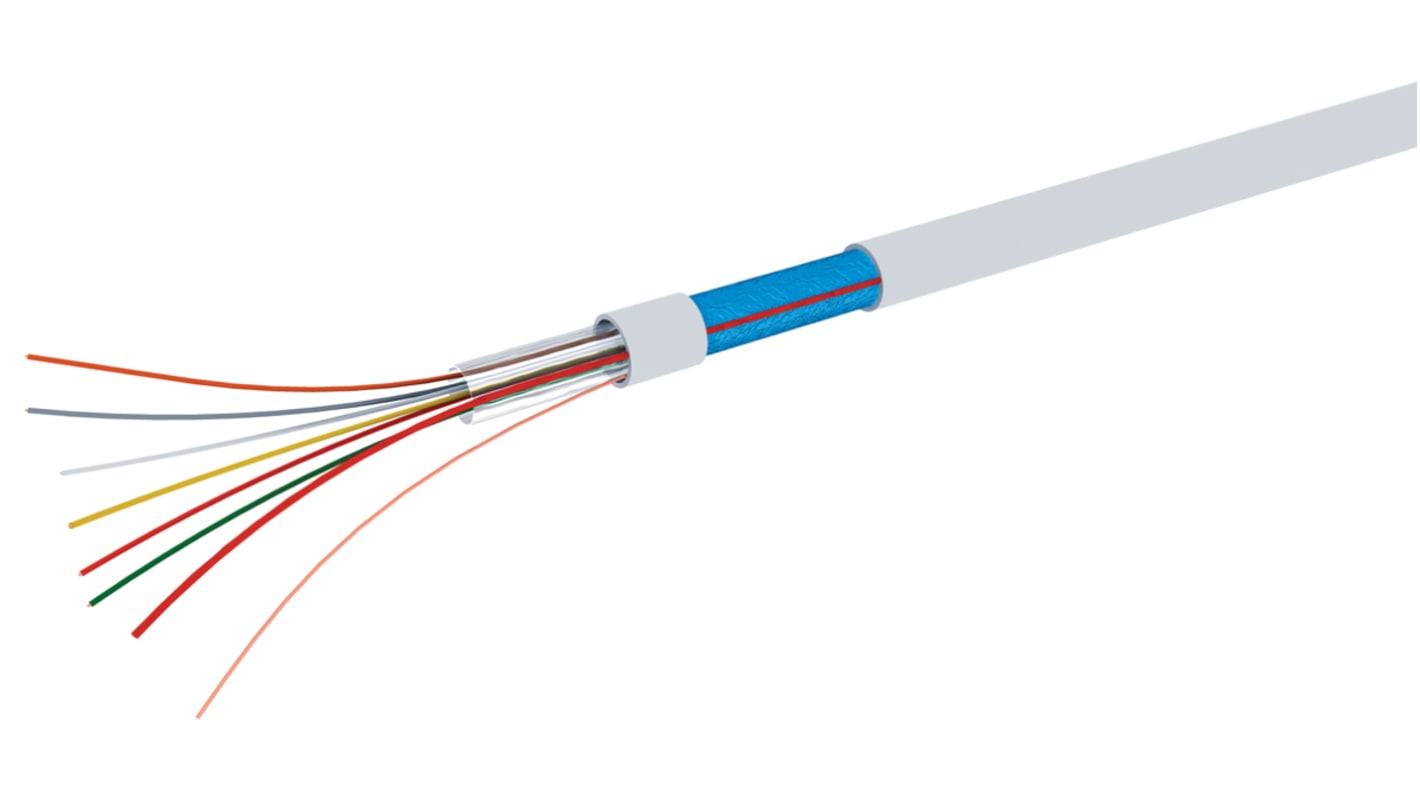

RS PRO Control Cable, 10 Cores, Tranxalarm, Screened, 100m, White PVC Sheath, 24 AWG
- RS Stock No.:
- 136-8147
- Brand:
- RS PRO
1 In stock - FREE next working day delivery available
10 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 100 Metre(s)
£139.03
(exc. VAT)
£166.84
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £139.03 | £1.39 |
| *price indicative | ||
- RS Stock No.:
- 136-8147
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS Pro Rigid Alarm Cable EV6
RS Pro flexible alarm cable comprised of multi conductor cables. Applications include connecting alarm centres to motion detectors or digicodes.
Features and Benefits
Rigid bare copper conductor
PVC Insulation
Flame retardant outer sheath
Rip cord
PVC Insulation
Flame retardant outer sheath
Rip cord
Standards
IEC 60332-1
Specifications
Attribute | Value |
|---|---|
| Number of Cores | 10 |
| Screened/Unscreened | Screened |
| Length | 100m |
| Control Cable Type | Tranxalarm |
| Cable Shape | Multi-Conductor |
| Sheath Colour | White |
| American Wire Gauge | 24 AWG |
| CPR Certification | Eca |
| Outer Diameter | 5mm |
| Sheath Material | PVC |
| Standards Met | Euroclass Eca |
| Screen Type | Aluminium Tape |
| Drain Wire | Yes |
| Minimum Operating Temperature | -10°C |
| Fire Behaviour | Flame Retardant NF C 32-070/C2, IEC 60332-1 |
| Voltage Rating | 200 V |
| Conductor Material | Bare Copper |
| Current Rating | 2.5A |
| Insulation Material | PVC |
| Oil Resistant | No |
| Maximum Operating Temperature | +70°C |
| Conductor Resistance | 96 Ω/km @ 20 °C |
