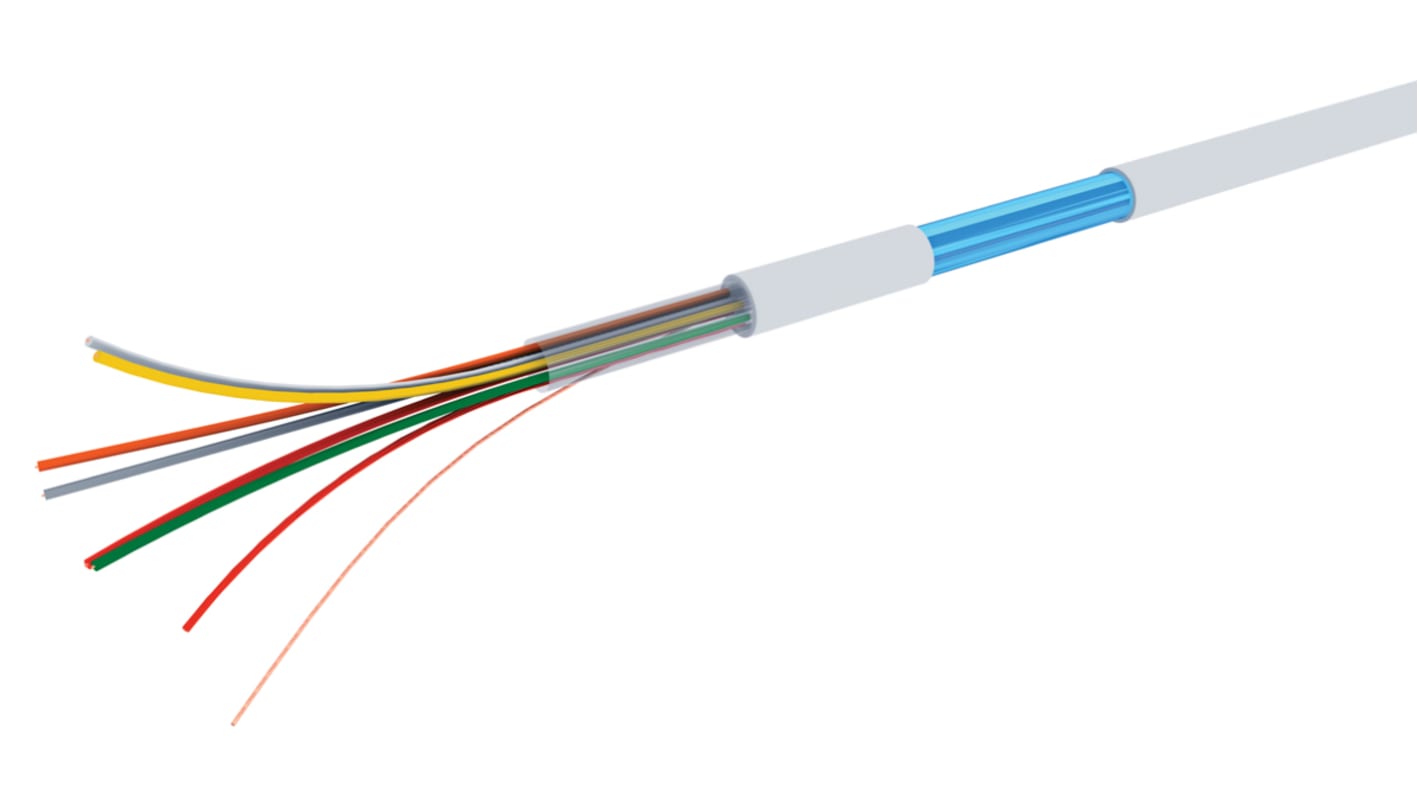

RS PRO Control Cable, 6 Cores, 0.22 mm², Screened, 100m, White PVC Sheath
- RS Stock No.:
- 136-8142
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£84.10
(exc. VAT)
£100.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £84.10 | £0.841 |
*price indicative
- RS Stock No.:
- 136-8142
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Cores | 6 | |
Cross Sectional Area | 0.22 mm² | |
Conductor Material | Copper | |
Sheath Material | PVC | |
Sheath Colour | White | |
Screen Type | Aluminium Tape | |
Screened/Unscreened | Screened | |
Length | 100m | |
Outer Diameter | 4.4mm | |
Voltage Rating | 200 V | |
CPR Certification | Eca | |
Maximum Operating Temperature | +70°C | |
Fire Behaviour | Flame Retardant, Self-extinguishing | |
Insulation Material | PVC | |
Cable Shape | Multicore | |
Minimum Operating Temperature | -10°C | |
Drain Wire | Yes | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Cores 6 | ||
Cross Sectional Area 0.22 mm² | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour White | ||
Screen Type Aluminium Tape | ||
Screened/Unscreened Screened | ||
Length 100m | ||
Outer Diameter 4.4mm | ||
Voltage Rating 200 V | ||
CPR Certification Eca | ||
Maximum Operating Temperature +70°C | ||
Fire Behaviour Flame Retardant, Self-extinguishing | ||
Insulation Material PVC | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -10°C | ||
Drain Wire Yes | ||
