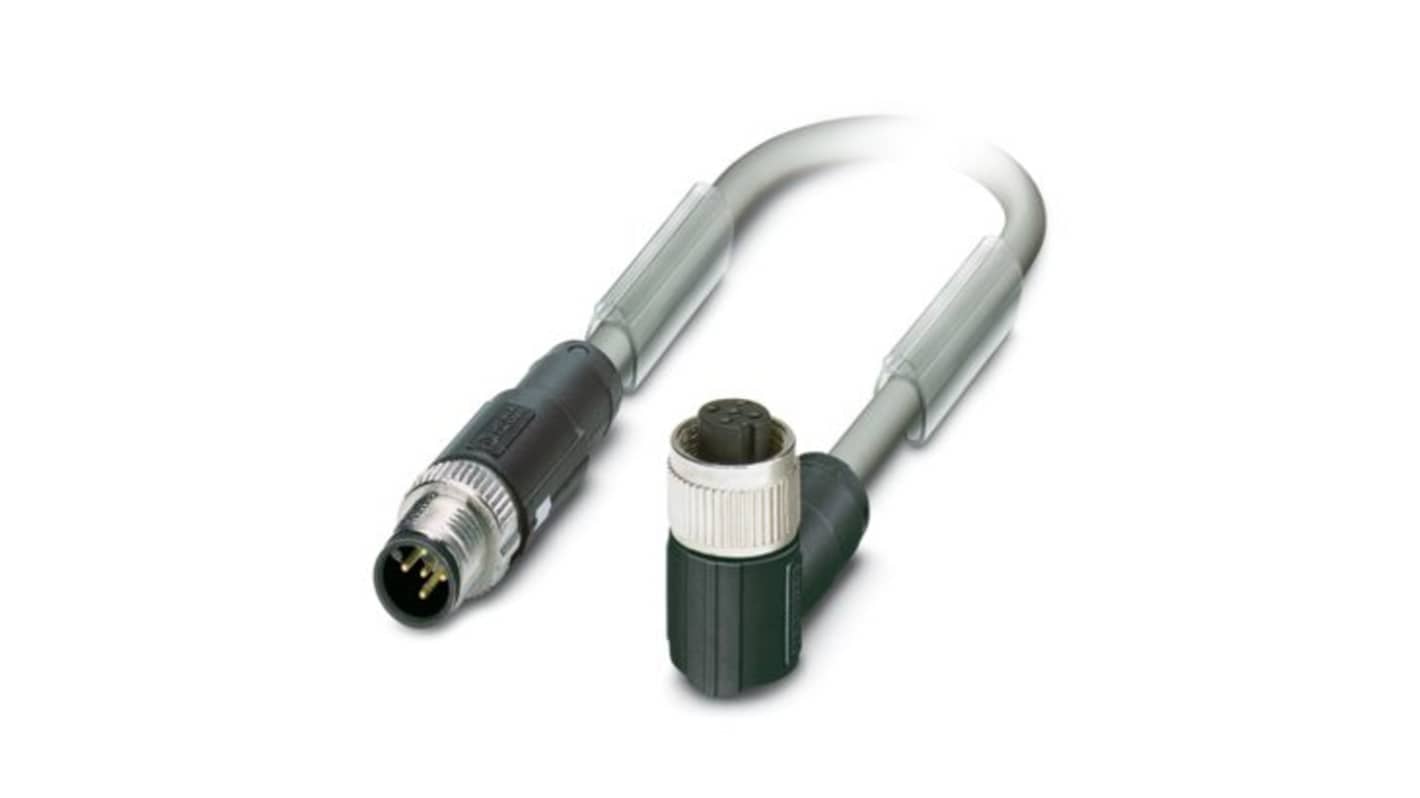

Phoenix Contact SAC Bus Cable, 5 Cores, 0.25 mm² 24 AWG, Screened, 2 m, Silver Grey Polyurethane Sheath
- RS Stock No.:
- 518-990
- Mfr. Part No.:
- 1419068
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 518-990
- Mfr. Part No.:
- 1419068
- Brand:
- Phoenix Contact
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Bus Cable | |
| Series | SAC | |
| Number of Cores | 5 | |
| Conductor Material | Tin Plated Copper | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Silver Grey | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 6.7 mm | |
| Cable Length | 2m | |
| Voltage | 300 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Standards/Approvals | UL AWM Style 21198, UL 1581, Sec. 1060 (FT-1), IEC 60754-1, IEC 60332-1 | |
| Cable CSA | 0.25 mm² | |
| Hazardous Area Certification | No | |
| Fire Behaviour | Flame Retardant | |
| American Wire Gauge | 24AWG | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Bus Cable | ||
Series SAC | ||
Number of Cores 5 | ||
Conductor Material Tin Plated Copper | ||
Jacket Material Polyurethane | ||
Jacket Colour Silver Grey | ||
Screened/Unscreened Screened | ||
Outside Diameter 6.7 mm | ||
Cable Length 2m | ||
Voltage 300 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
Standards/Approvals UL AWM Style 21198, UL 1581, Sec. 1060 (FT-1), IEC 60754-1, IEC 60332-1 | ||
Cable CSA 0.25 mm² | ||
Hazardous Area Certification No | ||
Fire Behaviour Flame Retardant | ||
American Wire Gauge 24AWG | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Bus System Cable designed for optimal integration in various industrial automation applications. Engineered with a five position configuration, this cable enables efficient data transfer for CANopen and DeviceNet systems. The PUR halogen free material ensures durability and resistance to harsh environments while maintaining flexibility, making it suitable for both fixed and dynamic installations. With an impressive operating temperature range, this cable excels in demanding conditions, and the SPEEDCON locking mechanism simplifies connections and disconnections.
Equipped with a SPEEDCON locking mechanism for secure connections
Extensive operating temperature range for versatile applications
Supports both dynamic and fixed installation requirements
Optimised for high data transmission integrity in industrial environments
