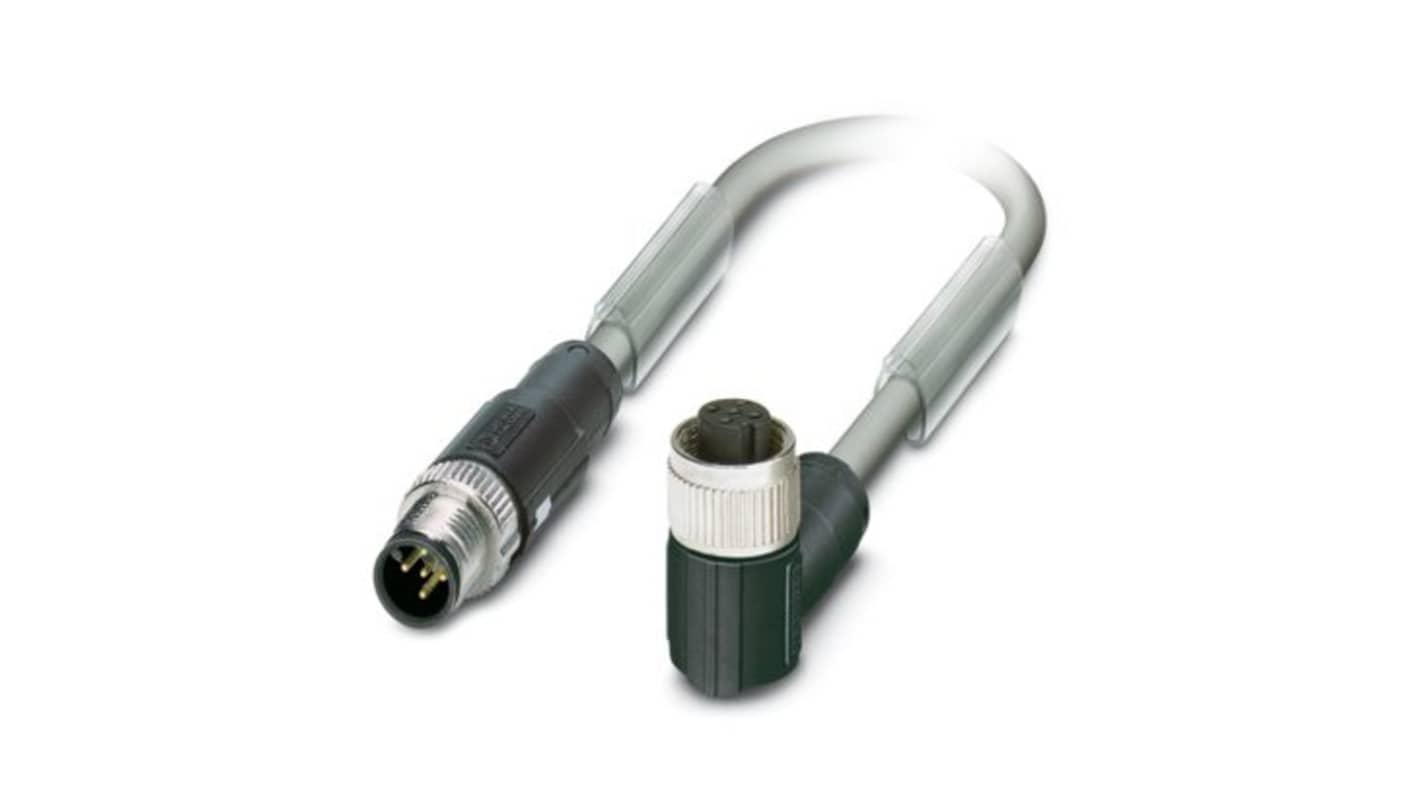

Phoenix Contact SAC Bus Cable, 5 Cores, 0.25 mm² 24 AWG, Screened, 1 m, Silver Grey Polyurethane Sheath
- RS Stock No.:
- 496-275
- Mfr. Part No.:
- 1419067
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 496-275
- Mfr. Part No.:
- 1419067
- Brand:
- Phoenix Contact
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Bus Cable | |
| Series | SAC | |
| Number of Cores | 5 | |
| Conductor Material | Tin Plated Copper | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Silver Grey | |
| Screened/Unscreened | Screened | |
| Cable Length | 1m | |
| Outside Diameter | 6.7 mm | |
| Voltage | 300 V | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | cULus, EAC-RoHS, IEC 60332-1, IEC 60754-1, Sec. 1060 (FT-1), UL 1581, UL AWM Style 21198 | |
| Maximum Operating Temperature | 90°C | |
| Hazardous Area Certification | No | |
| Cable CSA | 0.25 mm² | |
| American Wire Gauge | 24AWG | |
| Fire Behaviour | Flame Retardant | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Bus Cable | ||
Series SAC | ||
Number of Cores 5 | ||
Conductor Material Tin Plated Copper | ||
Jacket Material Polyurethane | ||
Jacket Colour Silver Grey | ||
Screened/Unscreened Screened | ||
Cable Length 1m | ||
Outside Diameter 6.7 mm | ||
Voltage 300 V | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals cULus, EAC-RoHS, IEC 60332-1, IEC 60754-1, Sec. 1060 (FT-1), UL 1581, UL AWM Style 21198 | ||
Maximum Operating Temperature 90°C | ||
Hazardous Area Certification No | ||
Cable CSA 0.25 mm² | ||
American Wire Gauge 24AWG | ||
Fire Behaviour Flame Retardant | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Bus System Cable is engineered for seamless integration in high performance automation environments. With its five position, shielded design, it supports both CANopen and DeviceNet protocols, ensuring reliable connectivity. This data cable features a durable polyurethane construction, providing robustness while maintaining flexibility. Designed for both fixed and flexible installations, it withstands extreme temperatures and dynamic movements, making it ideal for demanding industrial applications.
Quick connection feature minimises downtime during installations
Halogen free materials enhance safety and environmental compliance
Designed for both stationary and mobile applications which ensuring flexibility
Ideal for use in various industries including automotive and automation
