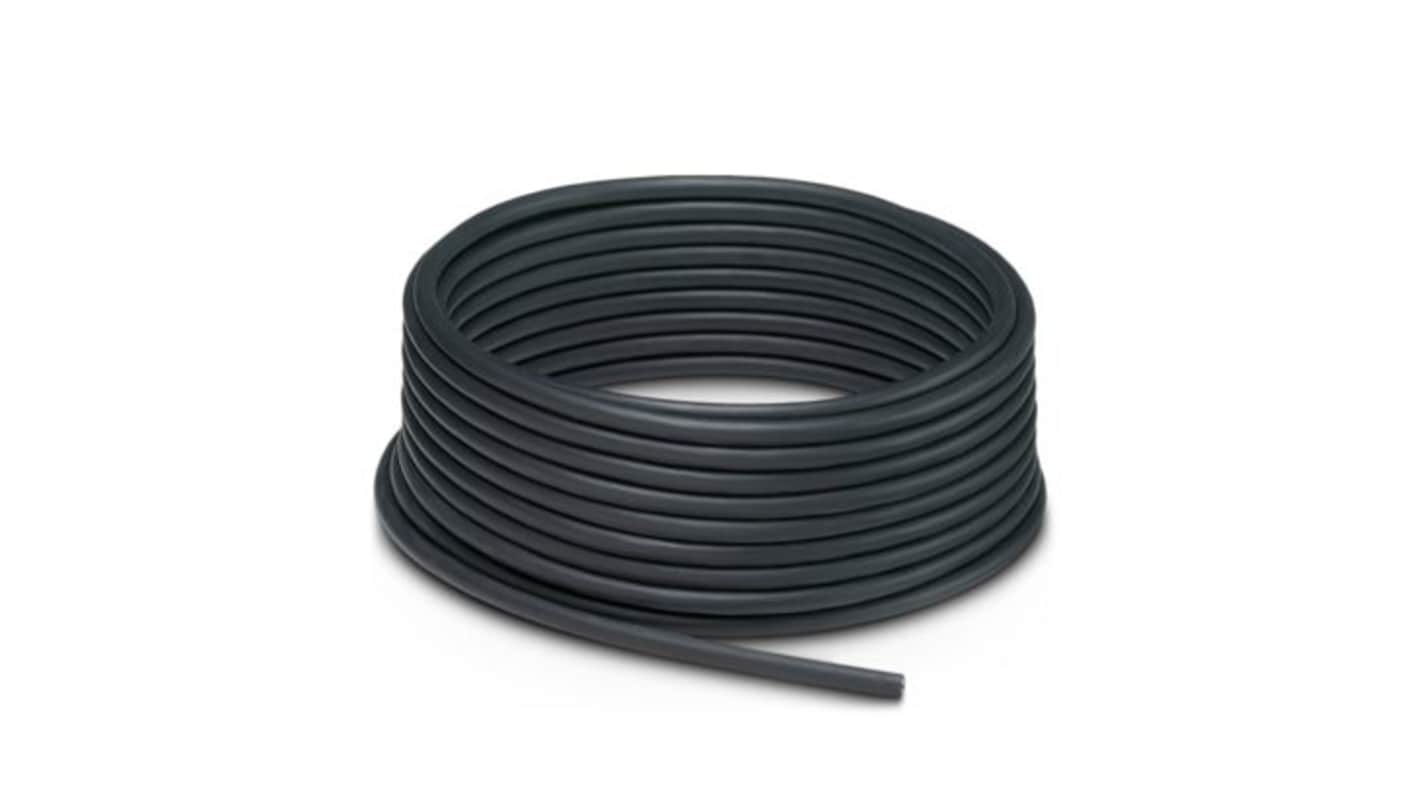

Phoenix Contact Bus Bus Cable, 5 Cores, 0.25mm² 24, Screened, 100 m, Black
- RS Stock No.:
- 496-897
- Mfr. Part No.:
- 1422415
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£862.33
(exc. VAT)
£1,034.80
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £862.33 |
*price indicative
- RS Stock No.:
- 496-897
- Mfr. Part No.:
- 1422415
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Bus Cable | |
| Series | Bus | |
| Number of Cores | 5 | |
| Conductor Material | Tin Plated Copper | |
| Jacket Colour | Black | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 6.9mm | |
| Cable Length | 100m | |
| Voltage | 30V | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | CHINA RoHS, EAC, RoHS ID: RU D DE.HB35.B.00371, IEC 60332 3 25 (Cat. D), EU REACH, EU RoHS | |
| Maximum Operating Temperature | 105°C | |
| Cable CSA | 0.25mm² | |
| Hazardous Area Certification | No | |
| American Wire Gauge | 24 | |
| Fire Behaviour | IEC 60332-3-25 (Cat.D) | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Bus Cable | ||
Series Bus | ||
Number of Cores 5 | ||
Conductor Material Tin Plated Copper | ||
Jacket Colour Black | ||
Screened/Unscreened Screened | ||
Outside Diameter 6.9mm | ||
Cable Length 100m | ||
Voltage 30V | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals CHINA RoHS, EAC, RoHS ID: RU D DE.HB35.B.00371, IEC 60332 3 25 (Cat. D), EU REACH, EU RoHS | ||
Maximum Operating Temperature 105°C | ||
Cable CSA 0.25mm² | ||
Hazardous Area Certification No | ||
American Wire Gauge 24 | ||
Fire Behaviour IEC 60332-3-25 (Cat.D) | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Bus System Cable is engineered for robust outdoor applications, ensuring reliable data transmission in demanding environments. This advanced cable supports both CANopen and DeviceNet protocols, making it versatile for a range of automation tasks. With a carefully designed 4 wire structure comprising insulated conductors, it provides optimal connectivity while maintaining compliance with FRNC halogen free standards. Its exceptional durability against extreme temperatures further enhances its suitability, ensuring longevity and performance stability.
Standardised conductor structure enhancing reliability in signal transmission
Lightweight design simplifies installation without compromising performance
UV resistant providing additional longevity against sunlight exposure
Backed by various approvals reflecting its adherence to industry standards for quality and safety
