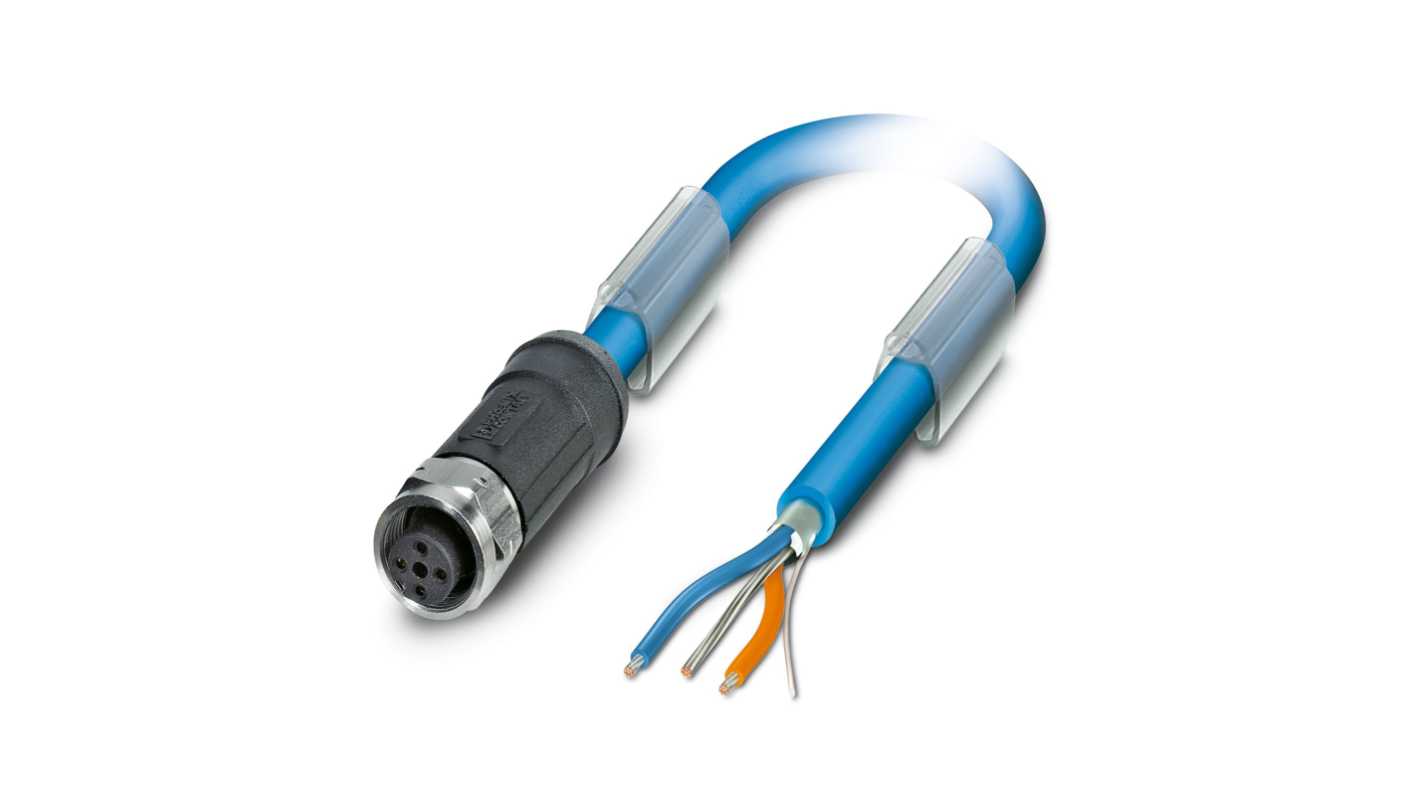

Phoenix Contact SAC Bus Cable, 3 Cores, 0.75 mm² 18 AWG, Screened, 2 m, Blue Polyvinyl Chloride Sheath
- RS Stock No.:
- 494-608
- Mfr. Part No.:
- 1419082
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 494-608
- Mfr. Part No.:
- 1419082
- Brand:
- Phoenix Contact
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Bus Cable | |
| Series | SAC | |
| Number of Cores | 3 | |
| Conductor Material | Tin Plated Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Blue | |
| Screened/Unscreened | Screened | |
| Cable Length | 2m | |
| Outside Diameter | 7.5 mm | |
| Voltage | 60 V dc, 48 V ac | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | EAC-RoHS ID: RU D-DE.HB35.B.00387, cULus ID: E221474 | |
| Maximum Operating Temperature | 105°C | |
| Cable CSA | 0.75 mm² | |
| Hazardous Area Certification | No | |
| Fire Behaviour | Flame resistance according to UL | |
| American Wire Gauge | 18AWG | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Bus Cable | ||
Series SAC | ||
Number of Cores 3 | ||
Conductor Material Tin Plated Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Blue | ||
Screened/Unscreened Screened | ||
Cable Length 2m | ||
Outside Diameter 7.5 mm | ||
Voltage 60 V dc, 48 V ac | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals EAC-RoHS ID: RU D-DE.HB35.B.00387, cULus ID: E221474 | ||
Maximum Operating Temperature 105°C | ||
Cable CSA 0.75 mm² | ||
Hazardous Area Certification No | ||
Fire Behaviour Flame resistance according to UL | ||
American Wire Gauge 18AWG | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Bus System Cable is designed for robust performance in process technology applications. This high quality data cable guarantees reliable communication within PROFIBUS PA installations, ensuring a continuous flow of information at 31.25 kbps. Encased in durable PVC with a striking blue RAL 5015 finish, this shielded cable provides exceptional protection against external interference, making it ideal for environments where safety is paramount, especially in Ex areas. Its flexible design, combined with a preassembled configuration and a 2 metre length, allows for easy integration into existing systems, supporting various industrial applications.
Compatible with PROFIBUS PA systems for seamless integration
Elevated flame resistance ensures safety in critical environments
Robust PVC material withstands challenging operational conditions
Suitable for applications in circuits requiring intrinsic safety protection
Established degradation levels under extensive operational cycles
Environmentally compliant with EU RoHS standards
