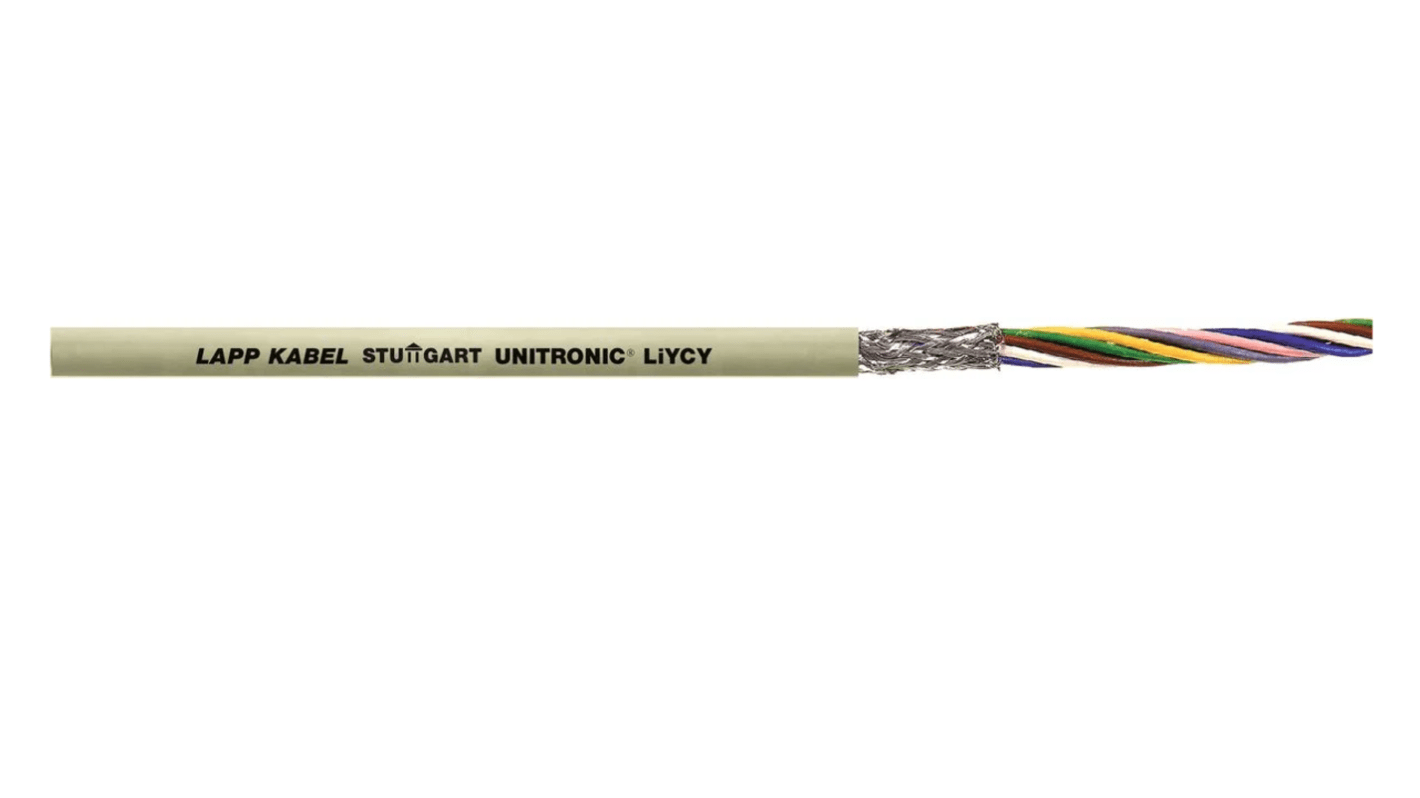

Lapp UNITRONIC LiYCY Control Cable, 2 Cores, 1 mm², Screened, 100m, Grey PVC Sheath, 17 AWG

View all Control Cable

Subtotal (1 reel of 100 metres)*

£206.18

(exc. VAT)

£247.42

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 6 unit(s) shipping from 21 November 2025
  • Plus 3 unit(s) shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£206.18£2.062

*price indicative

RS Stock No.:
437-594
Mfr. Part No.:
0034802-100
Brand:
Lapp
Find similar products by selecting one or more attributes.
Select all

Brand

Lapp

Series

UNITRONIC LiYCY

Number of Cores

2

Cross Sectional Area

1 mm²

American Wire Gauge

17 AWG

Conductor Material

Copper

Sheath Material

PVC

Sheath Colour

Grey

Screen Type

Tinned Copper Braid

Screened/Unscreened

Screened

Outer Diameter

6.8mm

Length

100m

Minimum Bend Radius

Fixed - 6 x D Occasional Flexing - 15 x D

Voltage Rating

250 V

Current Rating

15 A

CPR Certification

Eca

Maximum Operating Temperature

+80°C

Core Strands

32/0.20 mm

Insulation Material

PVC

Earth Cable

Yes

Bedding Material

Mylar

Oil Resistant

Yes

Filler Material

Non-Wicking Filler

Minimum Operating Temperature

-40°C

Conductor Resistance

19.5 Ω/km

COO (Country of Origin):
DE

LAPP UNITRONIC LiYCY Series Data Cable, 1mm² Cross Sectional Area, Screened Type - 0034802-100


This data cable is designed for reliable, high-performance data transmission in various environments. The 100m length is equipped with two cores, each featuring a cross-sectional area of 1mm². The flexible structure allows for efficient use in both fixed installations and occasional flexing applications, making it suitable across different operational contexts.

Features & Benefits


• Screened design minimises electrical interference for clear signals
• Bare copper conductor enhances conductivity for better performance
• PVC sheath ensures durability and resistance against environmental factors
• Lightweight structure facilitates easy handling and installation

Applications


• Used in computer systems for efficient data transfer
• Ideal for instrumentation technology, ensuring reliable performance
• Suitable for office equipment where consistent connectivity is required
• Excellent choice for balances in industrial settings with precise needs
• Effective in both dry and damp rooms, enhancing versatility

What temperature range can be accommodated during operation?


This cable operates effectively within a temperature range from -40°C to +80°C, allowing it to withstand extreme conditions without compromising performance.

How does the cable's construction benefit data integrity?


The cable features a tinned copper braid shield which safeguards data transmission from external interference, ensuring consistent signal quality.

Is this cable suitable for flexible applications?


Yes, it is designed for both fixed installations and occasional movement, adhering to minimum bending radii of 6x D for fixed and 15x D for flexible uses.


LAPP Industrial Cable


IBS cables for industrial communications and field bus in sensors / actuators.


• Peak working voltage 250V (not for power purposes)
• Test Voltage 1500V
• Temperature range -40°C to +80°C
