Lapp OLFLEX CLASSIC Control Cable, 4 Cores, 1 mm² 18 AWG, Screened, Silver Grey Polyvinyl Chloride Sheath
- RS Stock No.:
- 433-319
- Mfr. Part No.:
- 0026232
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£522.07
(exc. VAT)
£626.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £522.07 | £5.221 |
*price indicative
- RS Stock No.:
- 433-319
- Mfr. Part No.:
- 0026232
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | OLFLEX CLASSIC | |
| Product Type | Control Cable | |
| Number of Cores | 4 | |
| Conductor Material | Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Silver Grey | |
| Screened/Unscreened | Screened | |
| Armoured | No | |
| Voltage | 500 V | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Extra Fine | |
| Standards/Approvals | EN 50334, EN 50363-3, EN 50363-4-1, EN 50395, EN 50396, EN 50525-2-51, EN 60228, EN 60332-1-2, EN 60811, EU Directive 2011/65/EU (RoHS), EU-Directives 2014/35/EU, IEC 60228, IEC 60332-1-2, IEC 60811 | |
| Maximum Operating Temperature | 80°C | |
| Cable CSA | 1 mm² | |
| Hazardous Area Certification | No | |
| Fire Behaviour | Flammability acc. to IEC 60332-1-2 resp. EN 60332-1-2 | |
| American Wire Gauge | 18AWG | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Series OLFLEX CLASSIC | ||
Product Type Control Cable | ||
Number of Cores 4 | ||
Conductor Material Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Silver Grey | ||
Screened/Unscreened Screened | ||
Armoured No | ||
Voltage 500 V | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Extra Fine | ||
Standards/Approvals EN 50334, EN 50363-3, EN 50363-4-1, EN 50395, EN 50396, EN 50525-2-51, EN 60228, EN 60332-1-2, EN 60811, EU Directive 2011/65/EU (RoHS), EU-Directives 2014/35/EU, IEC 60228, IEC 60332-1-2, IEC 60811 | ||
Maximum Operating Temperature 80°C | ||
Cable CSA 1 mm² | ||
Hazardous Area Certification No | ||
Fire Behaviour Flammability acc. to IEC 60332-1-2 resp. EN 60332-1-2 | ||
American Wire Gauge 18AWG | ||
- COO (Country of Origin):
- DE

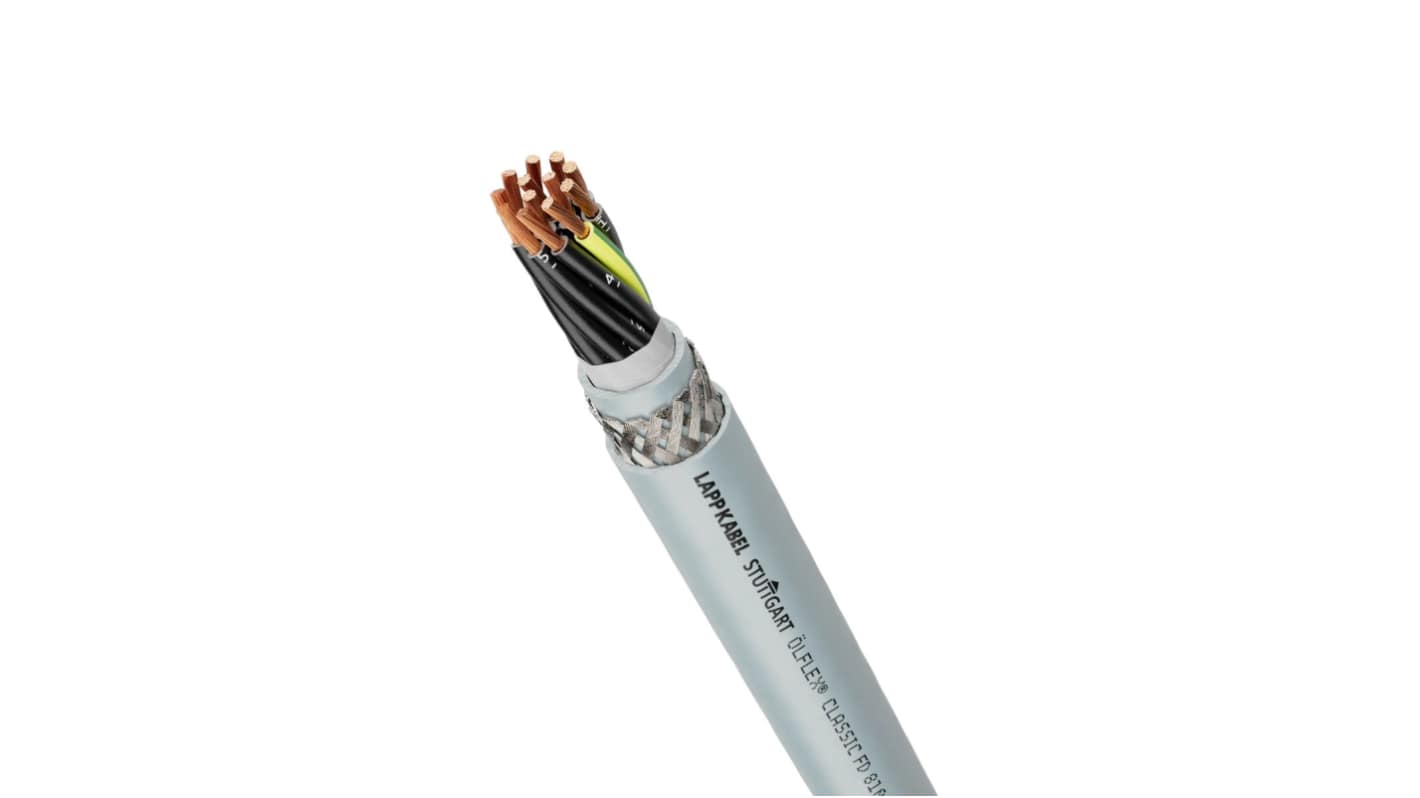

The Lapp Cable is a highly flexible power and control cable with a PVC sheath, suitable for flexible use and fixed installation under normal mechanical load conditions. It can be used in dry, damp, or wet areas. If used outdoors, the indicated temperature range must be observed and UV protection is required.
Increased resistant to oils and at room temperature largely resistant to acids and alkalis
Maximum tensile load is 15 N/mm² of conductor cross section
Outer sheath made of PVC compound
