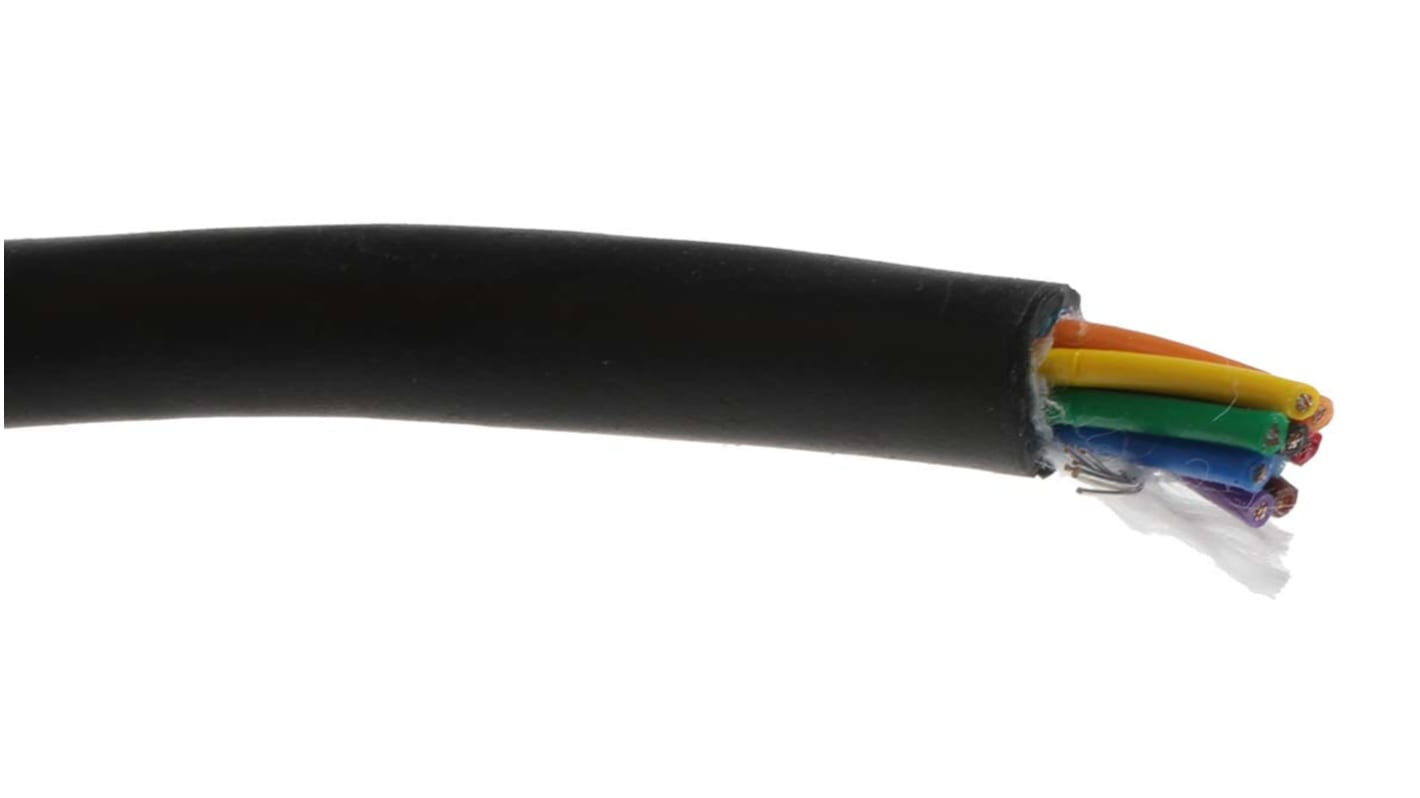

Alpha Wire Xtra-Guard 2 Control Cable, 8 Cores, 0.23 mm², Screened, 30m, Black PE Sheath, 24 AWG
- RS Stock No.:
- 409-107
- Mfr. Part No.:
- 25098 BK005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£318.01
(exc. VAT)
£381.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £318.01 | £10.60 |
*price indicative
- RS Stock No.:
- 409-107
- Mfr. Part No.:
- 25098 BK005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Alpha Wire | |
Series | Xtra-Guard 2 | |
Number of Cores | 8 | |
Cross Sectional Area | 0.23 mm² | |
American Wire Gauge | 24 AWG | |
Conductor Material | Tinned Copper | |
Sheath Material | PE | |
Sheath Colour | Black | |
Screened/Unscreened | Screened | |
Screen Type | Foil | |
Length | 30m | |
Minimum Bend Radius | 10 x Diameter | |
Outer Diameter | 5.56mm | |
Voltage Rating | 300 V | |
Standards Met | CE, CSA, UL | |
Maximum Operating Temperature | +90°C | |
Core Strands | 7/0.2 mm | |
Conductor Resistance | 26 Ω/1000ft | |
Drain Wire | Yes | |
Minimum Operating Temperature | -20°C | |
Insulation Material | PVC | |
Select all | ||
---|---|---|
Brand Alpha Wire | ||
Series Xtra-Guard 2 | ||
Number of Cores 8 | ||
Cross Sectional Area 0.23 mm² | ||
American Wire Gauge 24 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material PE | ||
Sheath Colour Black | ||
Screened/Unscreened Screened | ||
Screen Type Foil | ||
Length 30m | ||
Minimum Bend Radius 10 x Diameter | ||
Outer Diameter 5.56mm | ||
Voltage Rating 300 V | ||
Standards Met CE, CSA, UL | ||
Maximum Operating Temperature +90°C | ||
Core Strands 7/0.2 mm | ||
Conductor Resistance 26 Ω/1000ft | ||
Drain Wire Yes | ||
Minimum Operating Temperature -20°C | ||
Insulation Material PVC | ||
Belden Xtra-Guard 2 Series Control Cable, 8 Cores, 30m Length - 25098 BK005
This control cable is a high-performance 8 core shielded solution designed for various demanding applications. With a total length of 30m, this cable combines robust construction with reliable electrical characteristics. With a cross-sectional area of 0.23mm² and a diameter of 5.56mm, it ensures effective signal transmission while meeting industry standards such as CE, CSA, and UL.
Features & Benefits
• 8 core layout supports complex electrical systems
• Tinned copper conductors enhance durability and conductivity
• PVC insulation ensures reliable performance in diverse environments
• Screened design reduces electromagnetic interference
• Minimum bend radius of 10x diameter allows flexible installation
• Suitable for high-temperature environments up to +90°C
• Tinned copper conductors enhance durability and conductivity
• PVC insulation ensures reliable performance in diverse environments
• Screened design reduces electromagnetic interference
• Minimum bend radius of 10x diameter allows flexible installation
• Suitable for high-temperature environments up to +90°C
Applications
• Used for industrial automation systems requiring multiple signals
• Ideal for control in robotics and machinery
• Employed in HVAC systems for sensor and actuator connections
• Suitable for wiring in conveyor and assembly lines
• Utilised in data transmission for complex setups
• Ideal for control in robotics and machinery
• Employed in HVAC systems for sensor and actuator connections
• Suitable for wiring in conveyor and assembly lines
• Utilised in data transmission for complex setups
What materials contribute to the durability of this cable?
The use of tinned copper for the conductors ensures better corrosion resistance and reliability, while PVC insulation provides additional protection against environmental factors.
How does the screened design benefit installations?
The screened design effectively reduces the risk of electromagnetic interference, ensuring reliable signal integrity, which is critical in sensitive applications.
What are the temperature limits for safe operation?
This cable is designed to function reliably within a temperature range of -20°C to +90°C, making it suitable for a variety of environments.
What is the significance of the minimum bend radius?
A minimum bend radius of 10 times the cable diameter allows for easier installation without risking damage to the cable structure, promoting longevity and performance.
How does the core arrangement affect performance?
The 8 core arrangement allows for efficient signal distribution and flexibility in wiring configurations, enabling enhanced performance in complex setups.
