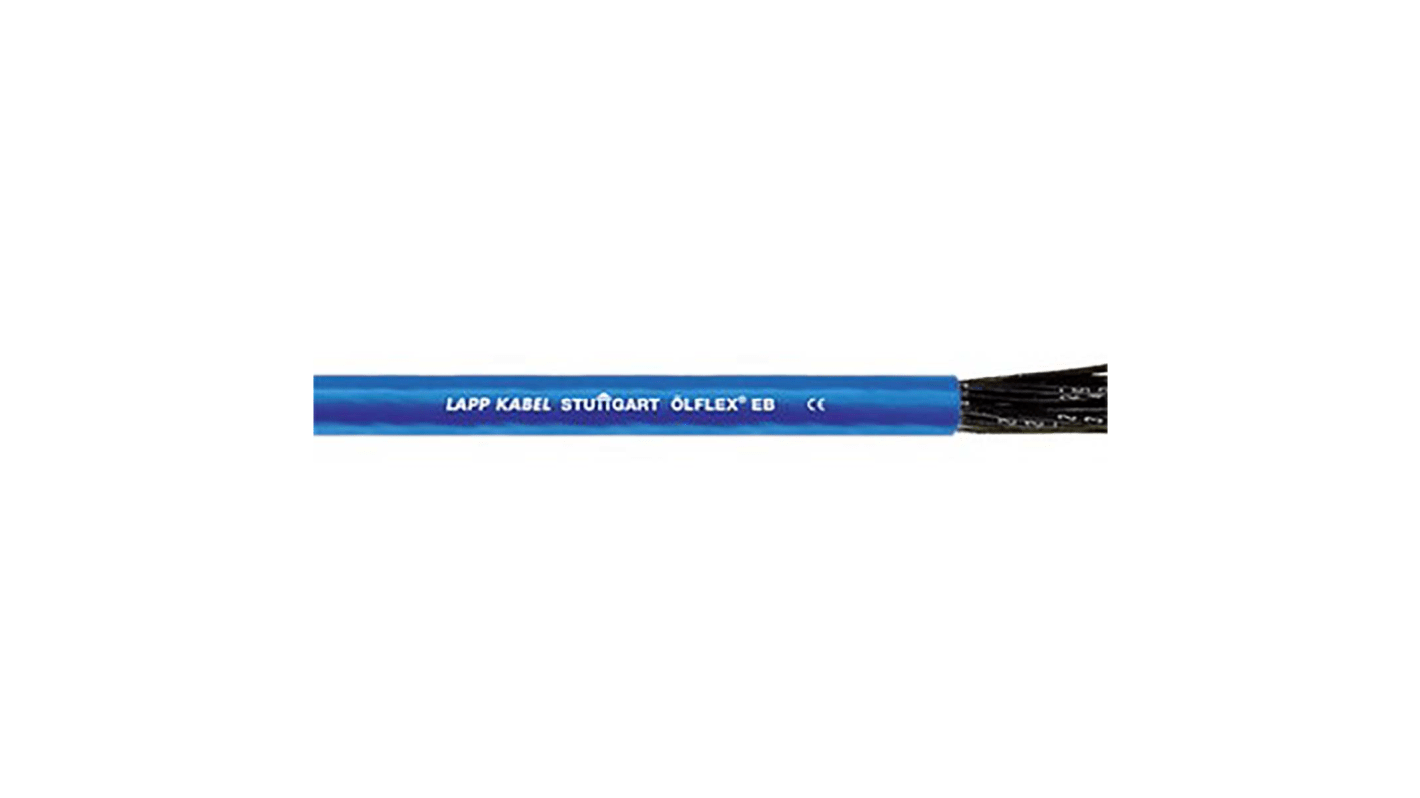

Lapp ÖLFLEX EB Control Cable, 5 Cores, 0.75 mm², YY, Unscreened, 50m, Blue PVC Sheath, 18 AWG
- RS Stock No.:
- 141-586
- Mfr. Part No.:
- 12422
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£86.43
(exc. VAT)
£103.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £86.43 | £1.729 |
*price indicative
- RS Stock No.:
- 141-586
- Mfr. Part No.:
- 12422
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX EB | |
| Number of Cores | 5 | |
| Cross Sectional Area | 0.75 mm² | |
| American Wire Gauge | 18 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Blue | |
| Control Cable Type | YY | |
| Screen Type | Unscreened | |
| Screened/Unscreened | Unscreened | |
| Length | 50m | |
| Minimum Bend Radius | 4 x Diameter | |
| Outer Diameter | 6.7mm | |
| Voltage Rating | 500 V | |
| Standards Met | CE | |
| CPR Certification | Eca | |
| Hazardous Area Certification | ATEX | |
| Fire Behaviour | Flame Retardant | |
| Maximum Operating Temperature | +80°C | |
| Insulation Material | PVC | |
| Minimum Operating Temperature | -40°C | |
| Cable Shape | Twisted | |
| Drain Wire | No | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX EB | ||
Number of Cores 5 | ||
Cross Sectional Area 0.75 mm² | ||
American Wire Gauge 18 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Blue | ||
Control Cable Type YY | ||
Screen Type Unscreened | ||
Screened/Unscreened Unscreened | ||
Length 50m | ||
Minimum Bend Radius 4 x Diameter | ||
Outer Diameter 6.7mm | ||
Voltage Rating 500 V | ||
Standards Met CE | ||
CPR Certification Eca | ||
Hazardous Area Certification ATEX | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +80°C | ||
Insulation Material PVC | ||
Minimum Operating Temperature -40°C | ||
Cable Shape Twisted | ||
Drain Wire No | ||
- COO (Country of Origin):
- DE
LAPP Control Cable, 500V Voltage Rating, 6.7mm Outer Diameter - ÖLFLEX EB Series - 12422
Need a delicate wire for your sensitive devices? Choose this control cable from LAPP. It's a secure option for intrinsically safe "i"-type protection circuits, so you can use it in setups where flammable gases or dust are present. The bare copper cores are highly conductive to transmit signals at high speeds with minimal loss. As this control cable comes on a 50m reel, you have plenty of supply for use in multiple tasks.
Features & Benefits
• Performs reliably in extreme environments, thanks to a wide operating temperature range between -5°C and +70°C in a flexible installation
• Cores are numbered for ease of identification
• Cores are numbered for ease of identification
Applications
• Manufacturing sector
• Power generation
• Transportation industry
• Power generation
• Transportation industry
Can I use this cable outside?
Yes, the PVC sheath resists UV radiation and moisture, so you can use this cable safely in outdoor installations.
