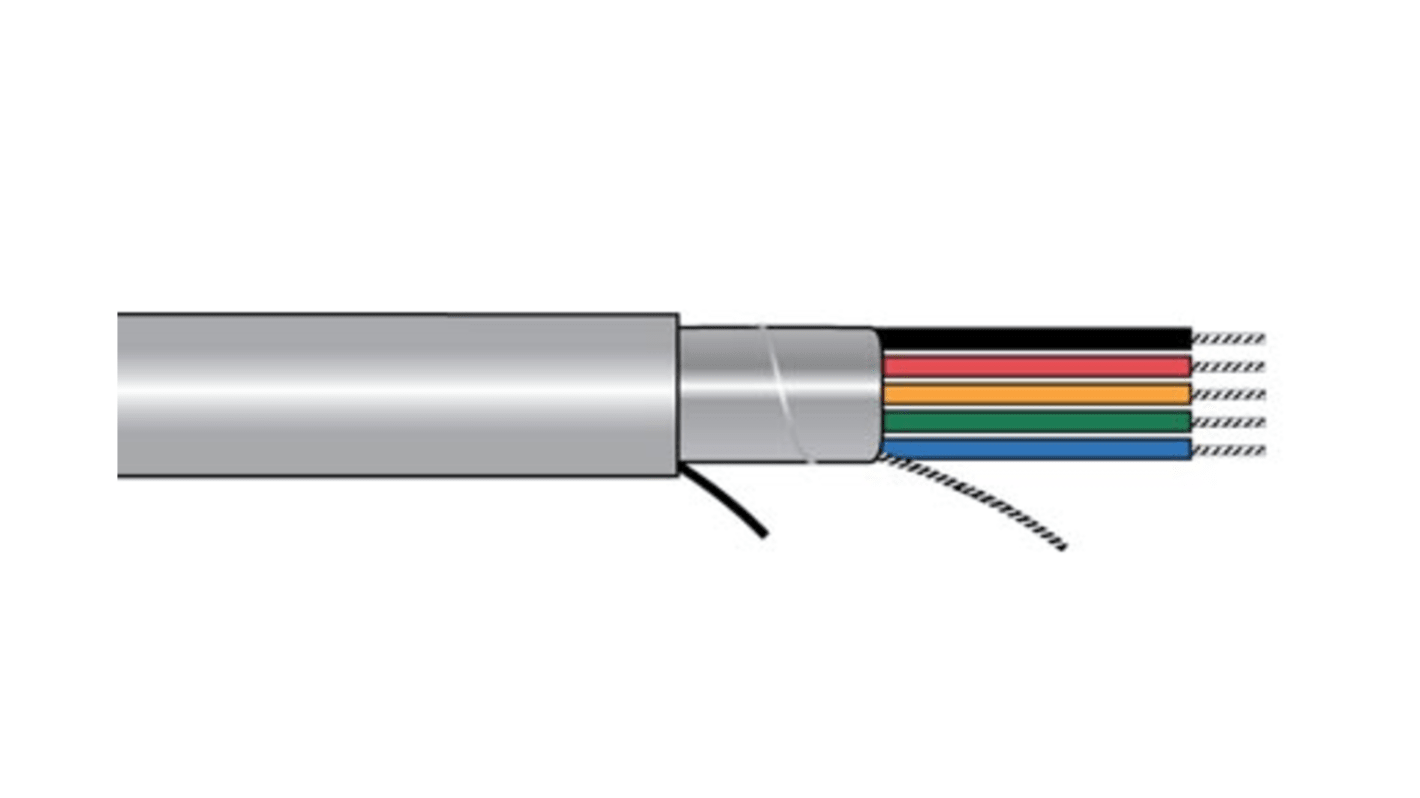

Alpha Wire 5366 Multicore Cable, 6 Cores, 1.5 mm² 16 AWG, Screened, 500 ft, Grey Polyvinyl Chloride Sheath

View all Control Cable

Subtotal (1 reel of 153 metres)*

£6,097.49

(exc. VAT)

£7,316.99

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£6,097.49£39.853

*price indicative

RS Stock No.:
105-255
Mfr. Part No.:
5366C SL002
Brand:
Alpha Wire
Find similar products by selecting one or more attributes.
Select all

Brand

Alpha Wire

Series

5366

Product Type

Multicore Cable

Number of Cores

6

Conductor Material

Tin Copper Wire

Jacket Material

Polyvinyl Chloride

Jacket Colour

Grey

Screened/Unscreened

Screened

Cable Length

500ft

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

105°C

Standards/Approvals

UL AWM/STYLE 1569 105C / 300 VRMS, Overall AWM/STYLE 2517 105C / 300 VRMS SUN RES AWM/STYLE 2464 80C / 300 VRMS CM 105C VW-1, CSA International C(UL) TYPE CMG 105C FT4

Hazardous Area Certification

EU

Cable CSA

1.5 mm²

American Wire Gauge

16AWG

Fire Behaviour

EN 60332-1, EN 60332-2

COO (Country of Origin):
US
The Alphawire multiconductor control cable is a high-performance cable for general-purpose applications features a unique, premium-grade PVC insulation and jacket for easier routing of cable in small spaces and designed for use in ambient temperatures up to 105 degree Celsius.

Provides resistance to oils per UL Oil Res I (60C OIL RES) and Class 43

Provides exceptional protection contre EMI interference when Supra-Shield is specified
