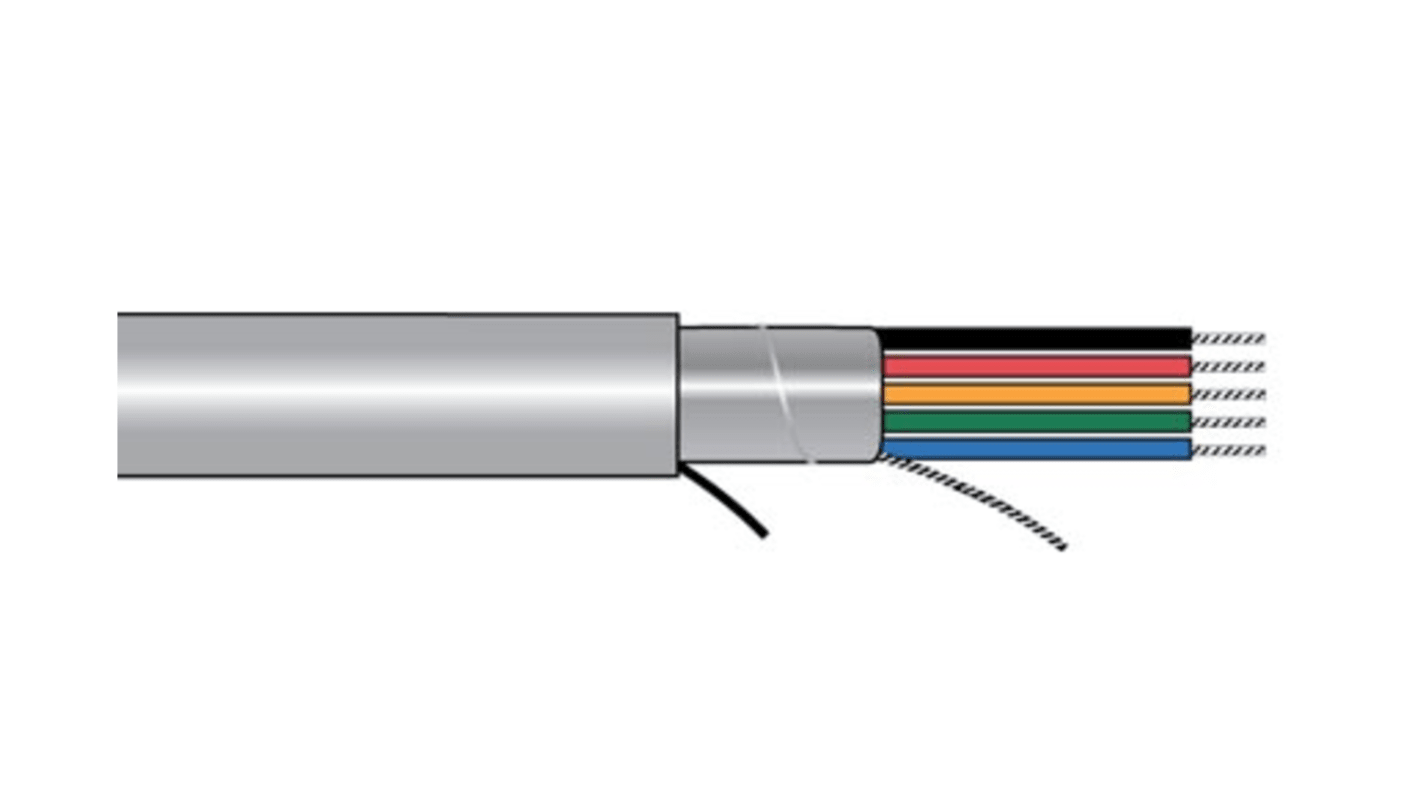

Alpha Wire 5562 Cable, 12 Cores, 0.5 mm² 20 AWG, Screened, 1000 ft, Grey Polyvinyl Chloride Sheath

View all Control Cable

Subtotal (1 reel of 305 metres)*

£9,180.57

(exc. VAT)

£11,016.68

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£9,180.57£30.10

*price indicative

RS Stock No.:
104-990
Mfr. Part No.:
5562C SL001
Brand:
Alpha Wire
Find similar products by selecting one or more attributes.
Select all

Brand

Alpha Wire

Product Type

Cable

Series

5562

Number of Cores

12

Conductor Material

Tin Copper Wire

Jacket Material

Polyvinyl Chloride

Jacket Colour

Grey

Screened/Unscreened

Screened

Cable Length

1000ft

Voltage

300 Vrms

Minimum Operating Temperature

-30°C

Standards/Approvals

REACH, RoHS, CE: EU Directive 2011/65/EU(RoHS2), CE: EU Low Voltage Directive 2014/35/EU, EU Directive 2015/863/EU, IEC

Maximum Operating Temperature

105°C

Cable CSA

0.5 mm²

Hazardous Area Certification

No

Fire Behaviour

EN 60332-2, EN 60332-1

American Wire Gauge

20AWG

COO (Country of Origin):
US
The Alphawire multiconductor control cable is a high-performance cable for general-purpose applications features a unique, premium-grade PVC insulation and jacket for easier routing of cable in small spaces and designed for use in ambient temperatures up to 105 degree Celsius.

Provides resistance to oils per UL Oil Res I (60C OIL RES) and Class 43

Provides exceptional protection contre EMI interference when Supra-Shield is specified
