Alpha Wire 5316 Multicore Cable, 37 Cores, 0.34 mm², Screened, 500ft, Grey PVC Sheath, 22 AWG

View all Control Cable

Subtotal (1 reel of 153 metres)*

£20,444.46

(exc. VAT)

£24,533.35

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£20,444.46£133.624

*price indicative

RS Stock No.:
104-366
Mfr. Part No.:
5316C SL002
Brand:
Alpha Wire
Find similar products by selecting one or more attributes.
Select all

Brand

Alpha Wire

Series

5316

Number of Cores

37

Cross Sectional Area

0.34 mm²

American Wire Gauge

22 AWG

Sheath Material

Polyvinyl Chloride PVC

Sheath Colour

Grey

Screened/Unscreened

Screened

Length

500ft

COO (Country of Origin):
US

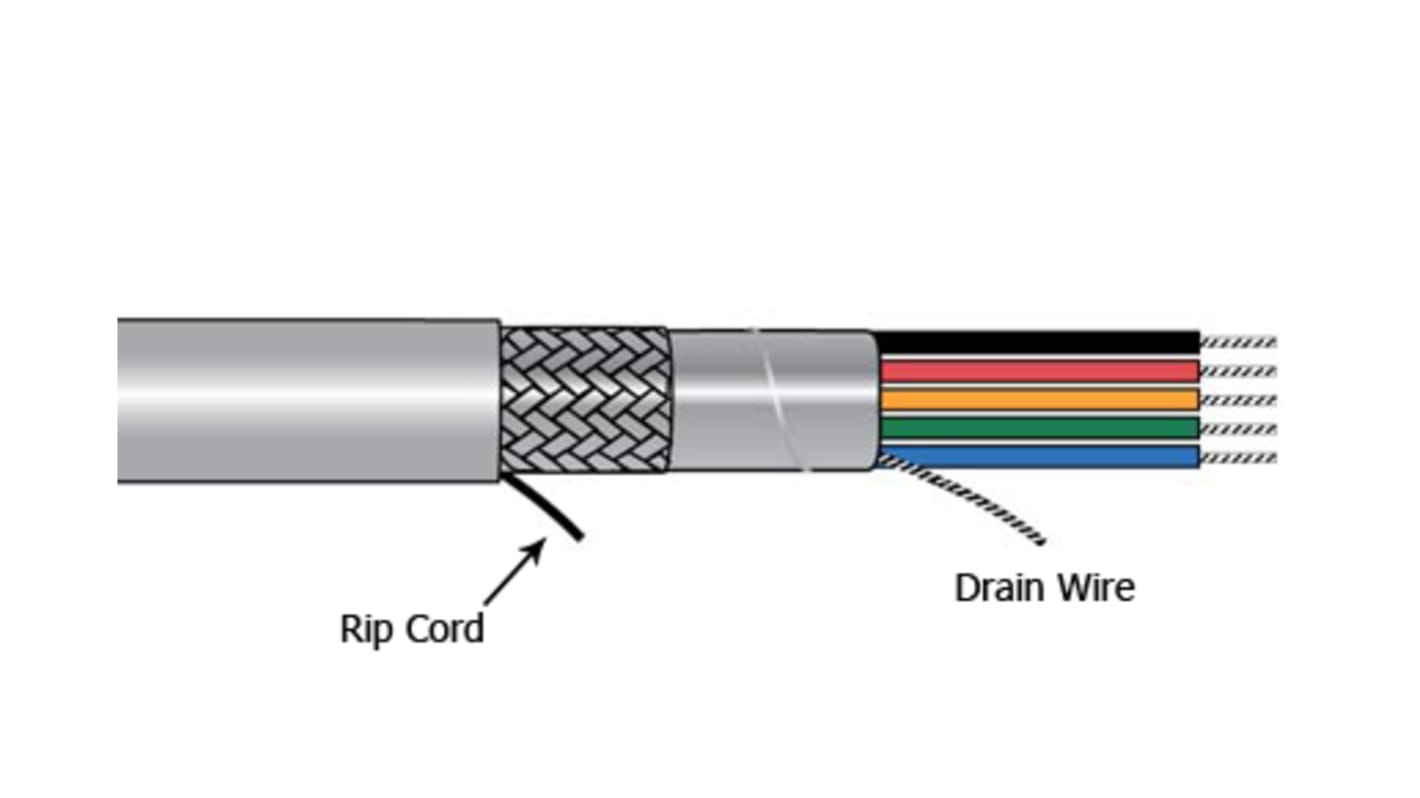

The Alphawire multiconductor control cable is a high-performance cable for general-purpose applications features a unique, premium-grade PVC insulation and jacket for easier routing of cable in small spaces and designed for use in ambient temperatures up to 105 degree Celsius.

Provides resistance to oils per UL Oil Res I (60C OIL RES) and Class 43
Provides exceptional protection contre EMI interference when Supra-Shield is specified
