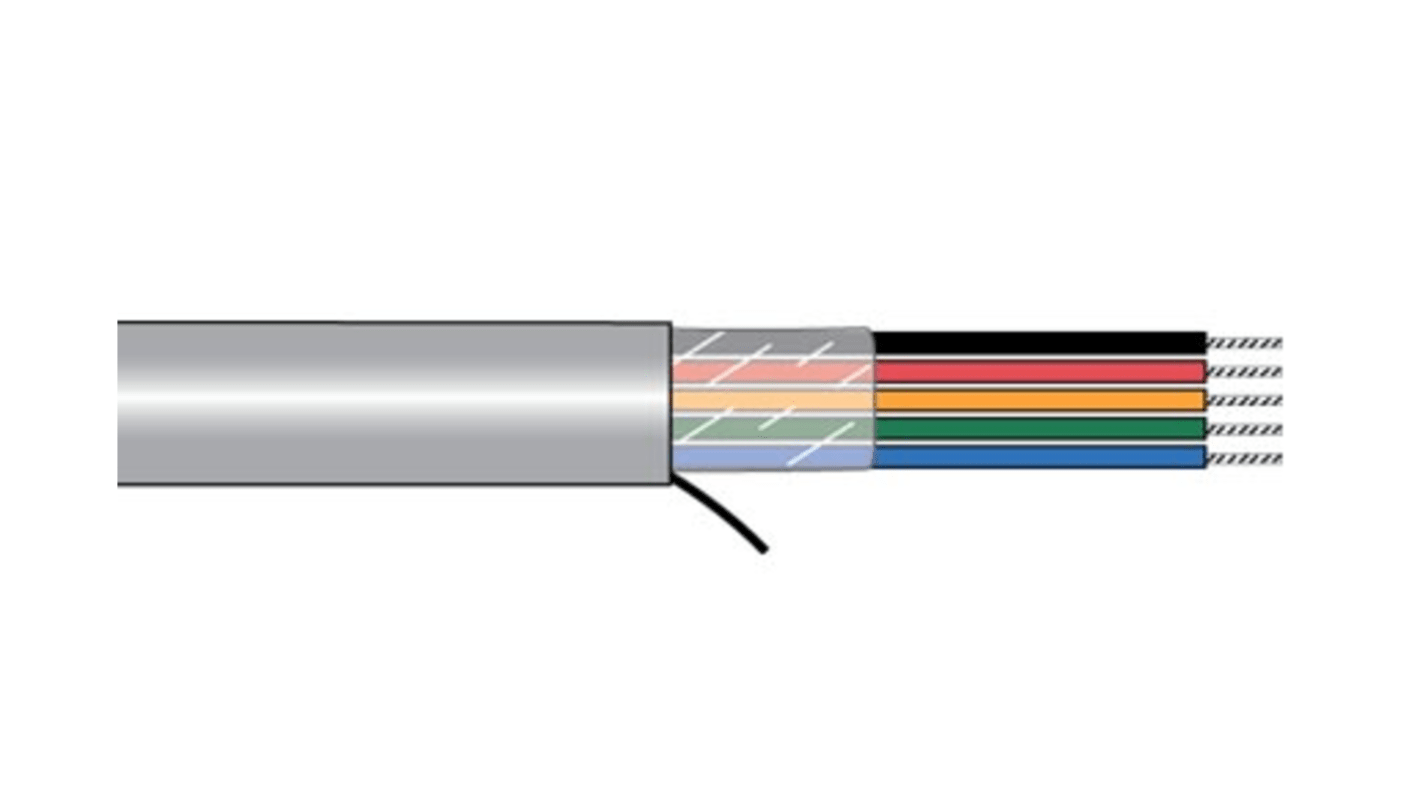

Alpha Wire 5070 Multicore Cable, 10 Cores, 0.75 mm² 18 AWG, Unscreened, 1000 ft, Grey Polyvinyl Chloride Sheath
- RS Stock No.:
- 103-627
- Mfr. Part No.:
- 5070C SL001
- Brand:
- Alpha Wire
Subtotal (1 reel of 305 metres)*
£6,013.87
(exc. VAT)
£7,216.64
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 09 March 2026
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £6,013.87 | £19.718 |
*price indicative
- RS Stock No.:
- 103-627
- Mfr. Part No.:
- 5070C SL001
- Brand:
- Alpha Wire
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Series | 5070 | |
| Product Type | Multicore Cable | |
| Number of Cores | 10 | |
| Conductor Material | Tin Copper Wire | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Cable Length | 1000ft | |
| Minimum Operating Temperature | -30°C | |
| Standards/Approvals | AWM/STYLE 2517 105C / 300 VRMS SUN RES AWM/STYLE 2464 80C / 300 VRMS CM 105C VW 1, California Proposition 65, CSA International C(UL) TYPE CMG 105C FT4, EU 2011/65/EU(RoHS2), EU 2015/863/EU (RoHS3), EU Low Voltage 2014/35/EU, IEC EN 60332 1 Flame Behavior EN 60332 2 Flame Behavior, REACH (EC 1907/2006), UL AWM/STYLE 1569 105C / 300 VRMS | |
| Maximum Operating Temperature | 105°C | |
| Cable CSA | 0.75 mm² | |
| Hazardous Area Certification | No | |
| Fire Behaviour | EN 60332-1, EN 60332-2 | |
| American Wire Gauge | 18AWG | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Series 5070 | ||
Product Type Multicore Cable | ||
Number of Cores 10 | ||
Conductor Material Tin Copper Wire | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Screened/Unscreened Unscreened | ||
Cable Length 1000ft | ||
Minimum Operating Temperature -30°C | ||
Standards/Approvals AWM/STYLE 2517 105C / 300 VRMS SUN RES AWM/STYLE 2464 80C / 300 VRMS CM 105C VW 1, California Proposition 65, CSA International C(UL) TYPE CMG 105C FT4, EU 2011/65/EU(RoHS2), EU 2015/863/EU (RoHS3), EU Low Voltage 2014/35/EU, IEC EN 60332 1 Flame Behavior EN 60332 2 Flame Behavior, REACH (EC 1907/2006), UL AWM/STYLE 1569 105C / 300 VRMS | ||
Maximum Operating Temperature 105°C | ||
Cable CSA 0.75 mm² | ||
Hazardous Area Certification No | ||
Fire Behaviour EN 60332-1, EN 60332-2 | ||
American Wire Gauge 18AWG | ||
- COO (Country of Origin):
- US
