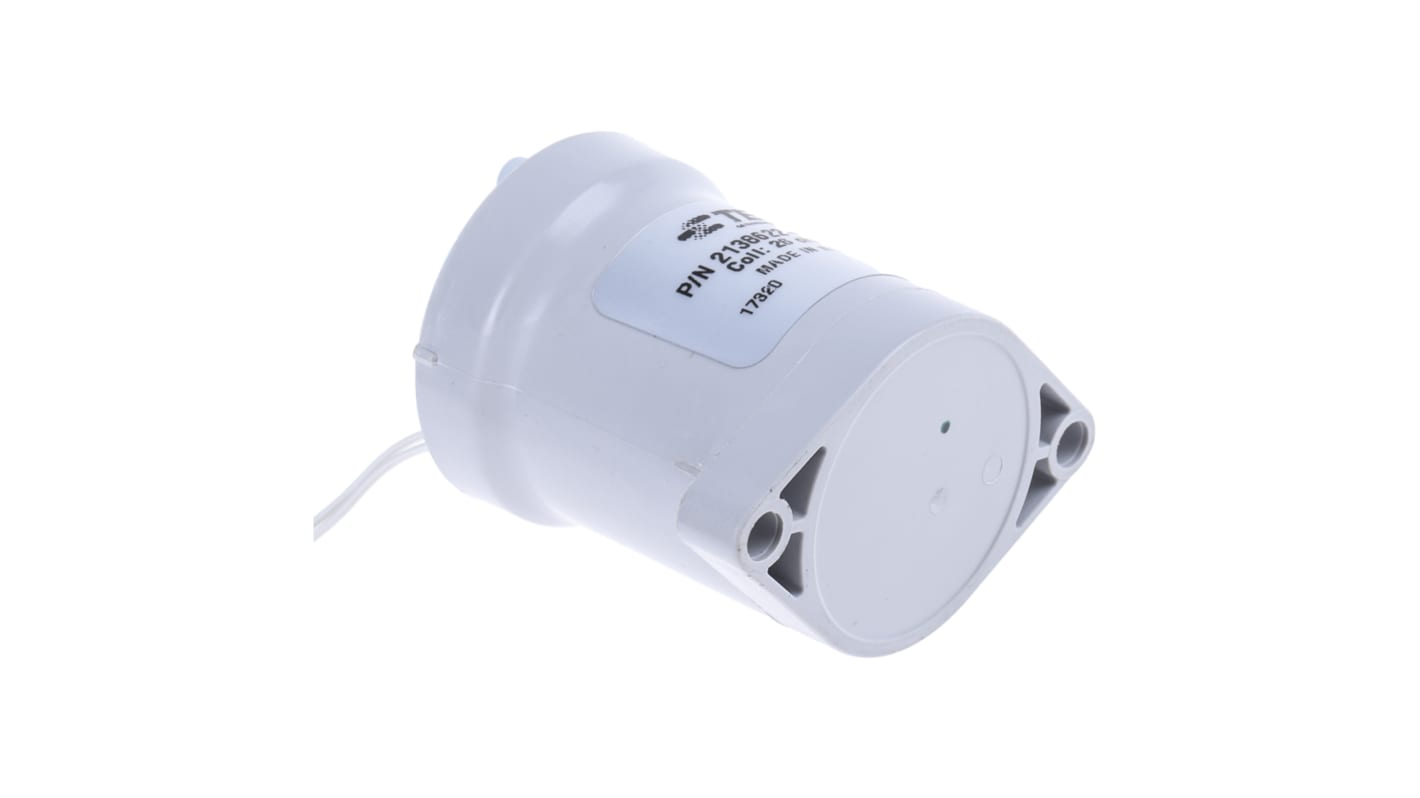

    TE Connectivity AMP+ EVC 135 Series Contactor, 1-Pole, 135 A

    RS Stock No.:
    808-6771
    Mfr. Part No.:
    2138622-1
    Brand:
    TE Connectivity
    TE Connectivity
    View all Contactors
    52 In stock - FREE next working day delivery available
    Add to Basket
    Units

    Added

    Price Each

    £66.31

    (exc. VAT)

    £79.57

    (inc. VAT)

    UnitsPer unit
    1 +£66.31
    RS Stock No.:
    808-6771
    Mfr. Part No.:
    2138622-1
    Brand:
    TE Connectivity
    COO (Country of Origin):
    MX

    Legislation and Compliance

    COO (Country of Origin):
    MX

    Product Details

    TE Connectivity AMP+ Electric Vehicle Contactor


    The AMP+ high voltage contactor range from TE Connectivity are a hermetically sealed and intrinsically safe solution that will provide both fast and reliable switching of a high voltage battery to the vehicle systems found in both hybrid and electric vehicles. The AMP+ high voltage contactor 500-500L offers 900 VDC and 500 Amps continuous current carrying capabilities in a compact package Capable of 2000 Amp interrupt at 320 VDC, the 135 model offers 900Vdc and 135 Amps continuous current capacity. AMP+ high voltage contactors reliably provide current switching capability in harsh and explosive operating environments with no oxidation or contamination of contacts during long periods of non-operation.

    • Hermetically sealed
    • 8kv (135) / 12kV (500) isolation
    • Gas filled inert contact chamber
    • Flying leads for coil connections
    • Coil voltage 12Vdc
    • Bottom mounting

    Versions Available


    808-6771 – 135A, 900V dc (135) 1 million cycle Mechanical life
    808-6774 – 500A, 450V dc (500) 500k cycle Mechanical Life
    808-6778 – 500A, 900V dc (500) 500k cycles Mechanical Life

    Note

    Connection hardware included for 808-6774 , 808-6778. No connection hardware included for 808-6771 (M5 thread)

    Approvals

    RoHS


    TE Connectivity AMP+

    Specifications

    AttributeValue
    Contact Current Rating135 A
    Number of Poles1
    SeriesAMP+ EVC 135
    Terminal TypeScrew
    Mounting StylePanel Mount
    Maximum Operating Temperature+40°C
