Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Coil Voltage	230 V ac
	Number of Poles	3
	Contact Voltage Rating	690 V ac
	Contact Current Rating	70 A
	Series	AF
	Power Rating	18.5 kW
	Range	AF40-30-00-13
	Normal State Configuration	3NO
	Number Of Auxiliary Contacts	0
	Terminal Type	Screw
	Width	125.5mm
	Length	55mm
	Depth	111mm
	Control Voltage	100 → 250 V
	Minimum Operating Temperature	-40°C
	Pole and Throw Configuration	3P
	Mounting Style	DIN Rail Mount
	Maximum Operating Temperature	+70°C

	Select all
	Brand ABB
	Coil Voltage 230 V ac
	Number of Poles 3
	Contact Voltage Rating 690 V ac
	Contact Current Rating 70 A
	Series AF
	Power Rating 18.5 kW
	Range AF40-30-00-13
	Normal State Configuration 3NO
	Number Of Auxiliary Contacts 0
	Terminal Type Screw
	Width 125.5mm
	Length 55mm
	Depth 111mm
	Control Voltage 100 → 250 V
	Minimum Operating Temperature -40°C
	Pole and Throw Configuration 3P
	Mounting Style DIN Rail Mount
	Maximum Operating Temperature +70°C

RoHS Status: Not Applicable

COO (Country of Origin):: FR

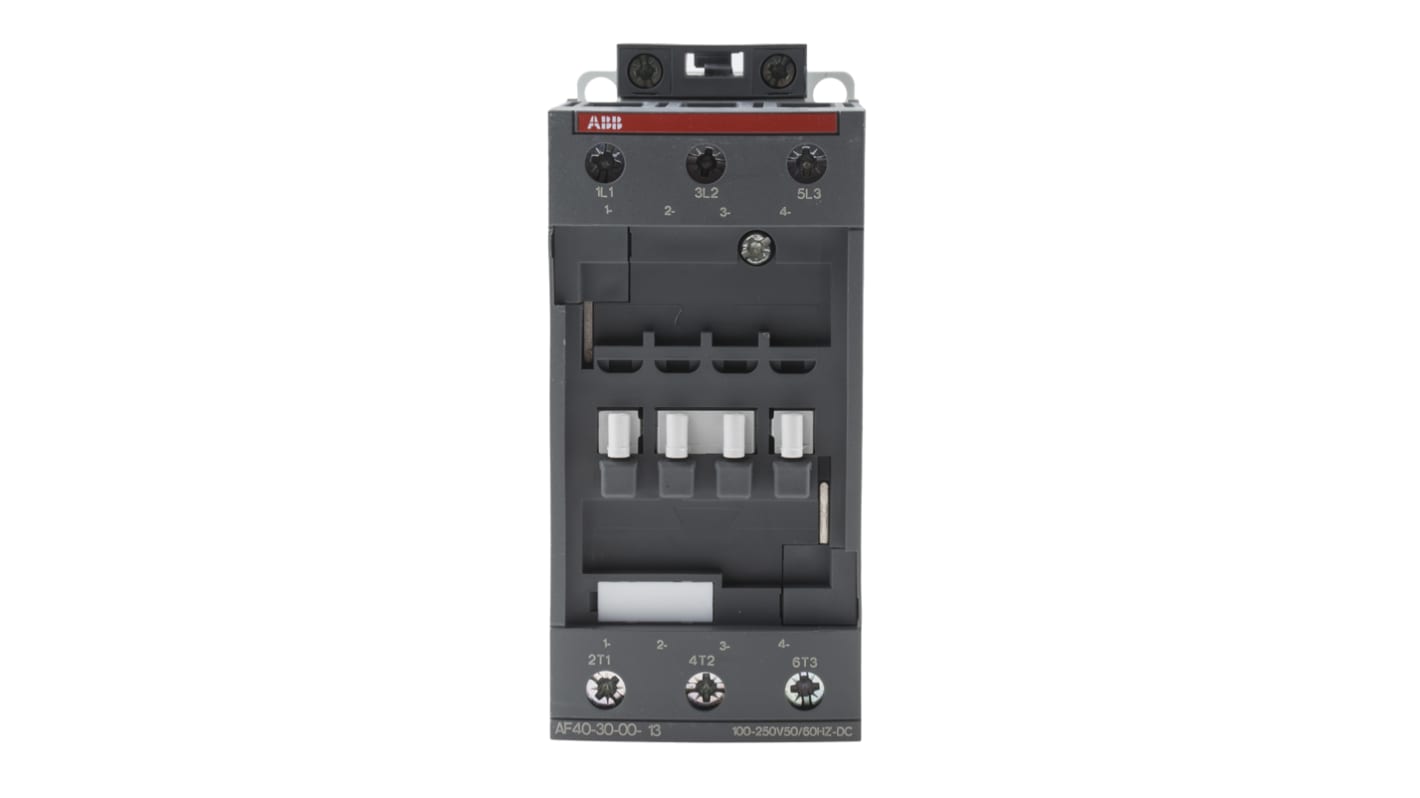

ABB AF Series Contactor, 3NO Configuration, 3 Pole - 1SBL347001R1300 AF40-30-00-13

This ABB contactor is a vital component in the field of industrial automation, electronics, electrical, and mechanical industries. It serves as a reliable solution for various applications due to its superior quality and ability to operate in challenging environments. The contactor from the ABB AF series offers exceptional performance and ensures optimal power switching, making it an industry benchmark.

Features & Benefits

• 3 pole contactor design for efficient power management
• 70A contactor suitable for high voltage applications
• 18.5kW power rating for robust performance
• Screw terminal connection for easy installation and maintenance
• 230VAC input voltage for versatility
• Industrial-grade construction for durability and longevity
• Reduces energy consumption by up to 80%, making it cost-effective and energy-efficient

Applications

• Used for motor protection and control in industrial machinery
• Ideal for contactors and overload relays in automation systems
• Suitable for capacitor switching and circuit control in electronic devices
• Used in slip ring motor control and field discharge applications
• Perfect for applications requiring high operational current and power switching capacity

Can it handle high voltage applications?

The ABB contactor is designed to efficiently manage high voltage applications, ensuring reliable performance.

Will it reduce energy consumption?

Yes, the contactor reduces energy consumption by up to 80%, making it a cost-effective solution for various industrial applications.

Is it suitable for motor protection and control?

The contactor is ideal for motor protection and control, offering superior quality and reliability in demanding environments.

ABB AF40-30-00-13 AF Contactor, 230 V ac Coil, 3-Pole, 70 A, 18.5 kW, 3NO, 690 V ac
