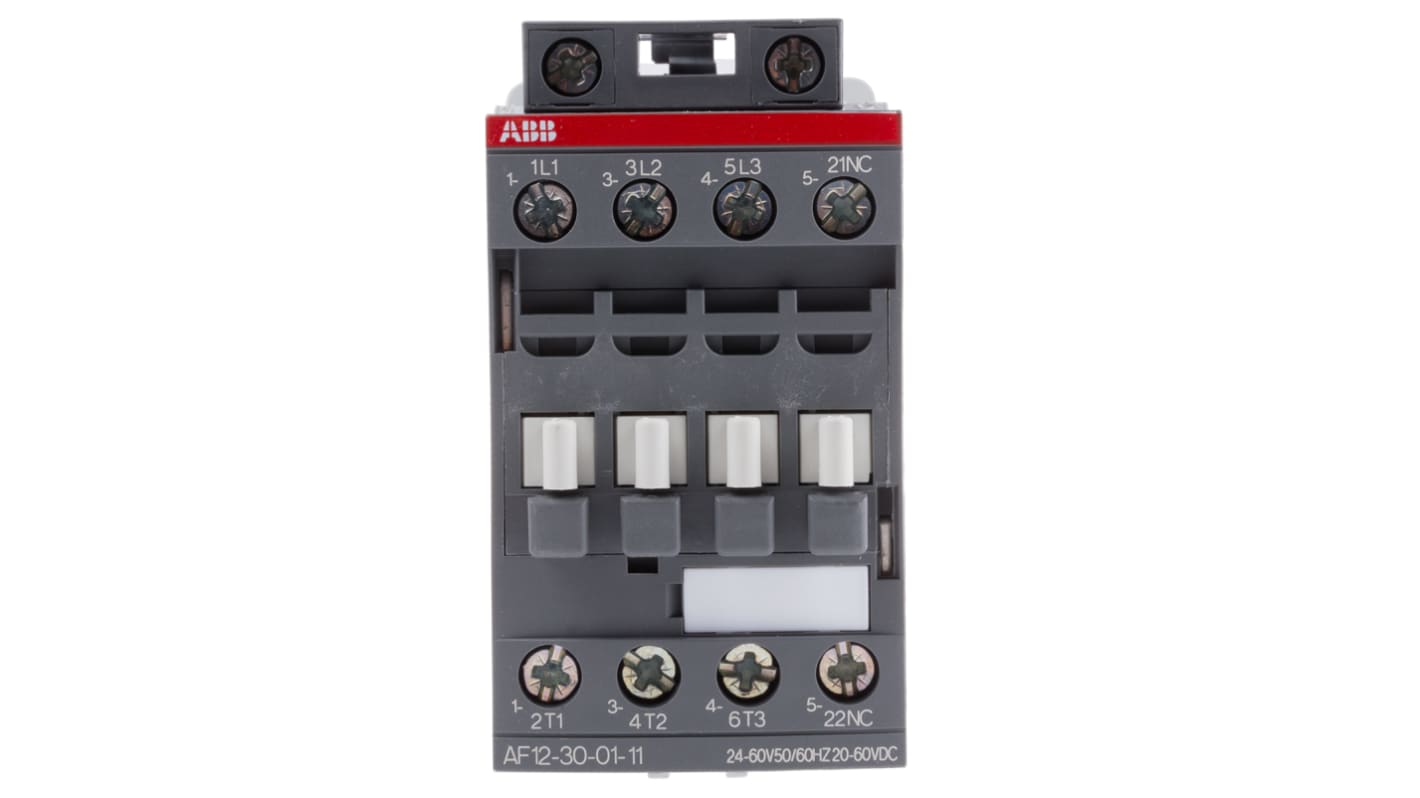

ABB AF12-30-01-11 AF Contactor, 24 V ac/dc Coil, 3-Pole, 28 A, 5.5 kW, 3NO, 690 V ac
- RS Stock No.:
- 764-8999
- Mfr. Part No.:
- 1SBL157001R1101 AF12-30-01-11
- Brand:
- ABB
Subtotal (1 unit)*
£44.49
(exc. VAT)
£53.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £44.49 |
*price indicative
- RS Stock No.:
- 764-8999
- Mfr. Part No.:
- 1SBL157001R1101 AF12-30-01-11
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Coil Voltage | 24 V ac/dc | |
Number of Poles | 3 | |
Contact Voltage Rating | 690 V ac | |
Contact Current Rating | 28 A | |
Power Rating | 5.5 kW | |
Range | AF12-30-01-11 | |
Series | AF | |
Normal State Configuration | 3NO | |
Auxiliary Contact Configuration | 1NC | |
Number Of Auxiliary Contacts | 1 | |
Terminal Type | Screw | |
Length | 86mm | |
Width | 45mm | |
Depth | 77mm | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand ABB | ||
Coil Voltage 24 V ac/dc | ||
Number of Poles 3 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 28 A | ||
Power Rating 5.5 kW | ||
Range AF12-30-01-11 | ||
Series AF | ||
Normal State Configuration 3NO | ||
Auxiliary Contact Configuration 1NC | ||
Number Of Auxiliary Contacts 1 | ||
Terminal Type Screw | ||
Length 86mm | ||
Width 45mm | ||
Depth 77mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -25°C | ||
ABB AF Series Contactor, 24V AC/DC Coil Voltage, 5.5kW Power Rating - 1SBL157001R1101 AF12-30-01-11
This contactor is suitable for efficient motor control and switching operations in both industrial and automation settings. Its robust construction allows for effective performance in high voltage applications.
Features & Benefits
• A control voltage range of 24V to 60V offers flexibility
• Features surge protection for consistent operation in unstable networks
• Compact design facilitates easy integration into existing systems
• Designed for DIN rail mounting, simplifying installation in various environments
• Can be enhanced with various auxiliary contact blocks for greater functionality
• Features surge protection for consistent operation in unstable networks
• Compact design facilitates easy integration into existing systems
• Designed for DIN rail mounting, simplifying installation in various environments
• Can be enhanced with various auxiliary contact blocks for greater functionality
Applications
• Controls motors in industrial machinery
• Ideal for switching power circuits in manufacturing environments
• Utilised in automation processes that require consistent circuit control
• Applicable in electrical distribution systems for managing high voltage
• Ideal for switching power circuits in manufacturing environments
• Utilised in automation processes that require consistent circuit control
• Applicable in electrical distribution systems for managing high voltage
How is it installed within an electrical panel?
It is designed for straightforward installation on DIN rails using screws.
Can it handle high current loads?
Yes, it has a contact current rating of 28A, making it suitable for various electrical applications.
What auxiliary contacts can be added for extended functionality?
One auxiliary contact is included, with options to add more blocks as needed.
What environmental conditions can it withstand?
It operates effectively within a temperature range of -25 to +60°C.
