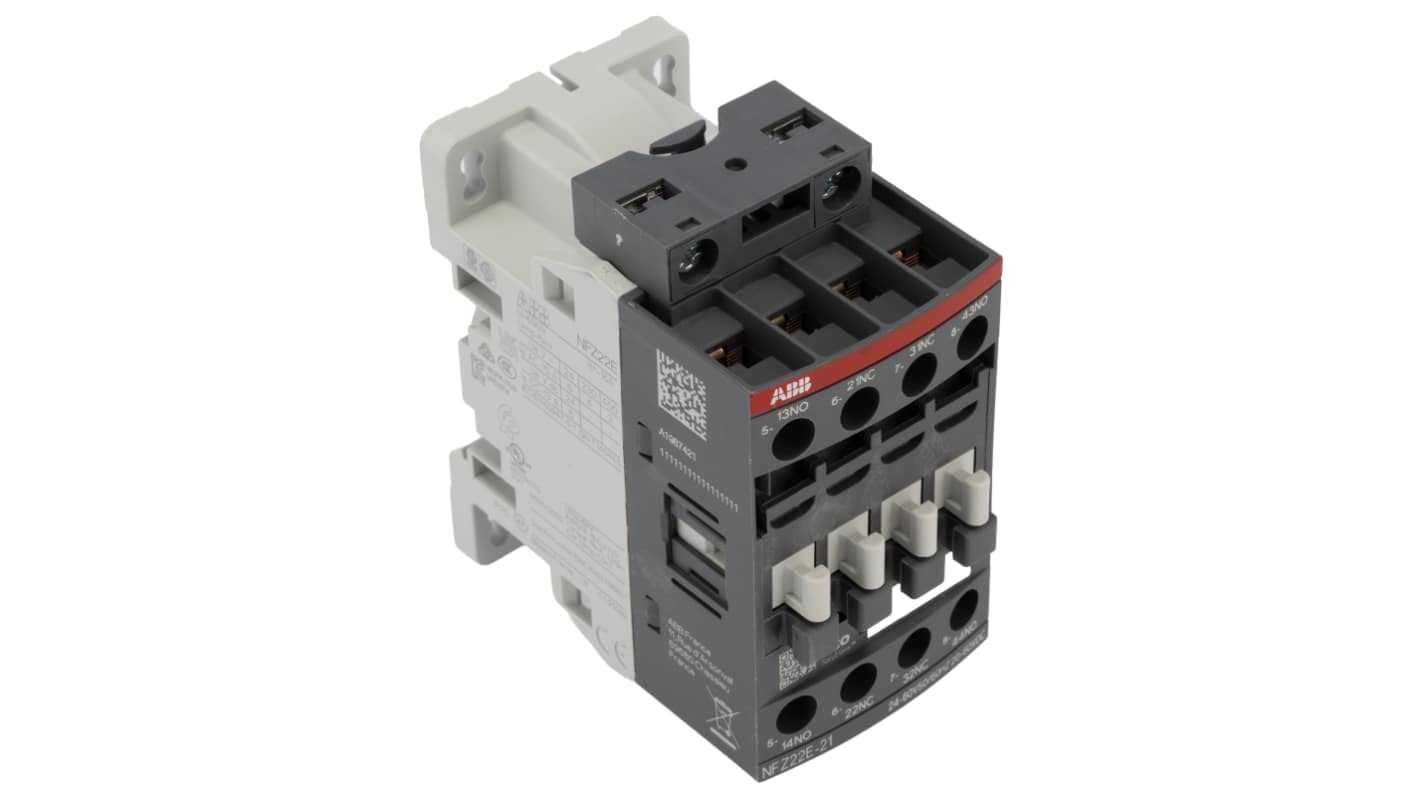

ABB NF Contactor Relay, 4-Pole, 6 A, 1500 kW 60V dc, 2 NO/2 NC, 690V ac
- RS Stock No.:
- 711-6281
- Mfr. Part No.:
- 1SBH136001R2122 NFZ22E-21
- Brand:
- ABB
Subtotal (1 unit)*
£76.56
(exc. VAT)
£91.87
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £76.56 |
*price indicative
- RS Stock No.:
- 711-6281
- Mfr. Part No.:
- 1SBH136001R2122 NFZ22E-21
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor Relay | |
| Number of Poles | 4 | |
| Contact Voltage | 690V ac | |
| Contact Current | 6A | |
| Series | NF | |
| Power Rating | 1500kW | |
| Mount Type | DIN Rail | |
| Function | Motor Control | |
| Normal State Configuration | 2 NO/2 NC | |
| Auxiliary Contact Configuration | 1 NO/1 NC | |
| Number of Auxiliary Contacts | 4 | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -40°C | |
| Control Circuit Voltage Uc | 60V dc | |
| Contactor Application | Latching Contactor | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CSA, CSA C22.2 No. 14-13, IEC, IEC/EN 60947-1, IEC/EN 60947-5-1, NEMA, UL, UL 508 | |
| Length | 86mm | |
| Depth | 77mm | |
| Width | 45mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor Relay | ||
Number of Poles 4 | ||
Contact Voltage 690V ac | ||
Contact Current 6A | ||
Series NF | ||
Power Rating 1500kW | ||
Mount Type DIN Rail | ||
Function Motor Control | ||
Normal State Configuration 2 NO/2 NC | ||
Auxiliary Contact Configuration 1 NO/1 NC | ||
Number of Auxiliary Contacts 4 | ||
Terminal Type Screw | ||
Minimum Operating Temperature -40°C | ||
Control Circuit Voltage Uc 60V dc | ||
Contactor Application Latching Contactor | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CSA, CSA C22.2 No. 14-13, IEC, IEC/EN 60947-1, IEC/EN 60947-5-1, NEMA, UL, UL 508 | ||
Length 86mm | ||
Depth 77mm | ||
Width 45mm | ||
ABB Series NF Contactor Relay, 20 to 60V DC Coil Voltage, 4 Poles - 1SBH136001R2122 NFZ22E-21
This contactor relay is a versatile control unit designed for various automation applications. With dimensions of 77mm in length, 45mm in width, and a depth of 77mm, it fits seamlessly onto DIN rail systems. Capable of operating under a coil voltage range of 20 to 60V DC and 24 to 60V AC, this relay's robust construction ensures reliability in demanding environments.
Features & Benefits
• 4 pole design allows for flexible configuration in circuits
• Contact voltage rating up to 690V AC enhances electrical robustness
• Maximum current rating of 6A supports diverse load requirements
• Dual configuration of auxiliary contacts ensures reliable performance
• Wide operating temperature range from -40 °C to +70 °C enables versatility
• Screw terminal type ensures secure and straightforward installations
Applications
• Utilised in automation systems requiring reliable control
• Suitable for high voltage in industrial settings
• Ideal for use in electrical control panels
• Supports various configurations for specific circuit requirements
What are the operating temperature limits for reliable performance?
The device operates efficiently between -40 °C and +70 °C, making it suitable for extreme environments.
How does the auxiliary contact configuration enhance functionality?
With 2 normally open (NO) and 2 normally closed (NC) contacts, this configuration allows for flexible circuit control and signalling.
What is the significance of the coil voltage range in this product?
The coil voltage range of 20 to 60V DC and 24 to 60V AC accommodates a variety of applications, ensuring compatibility with different power sources.
