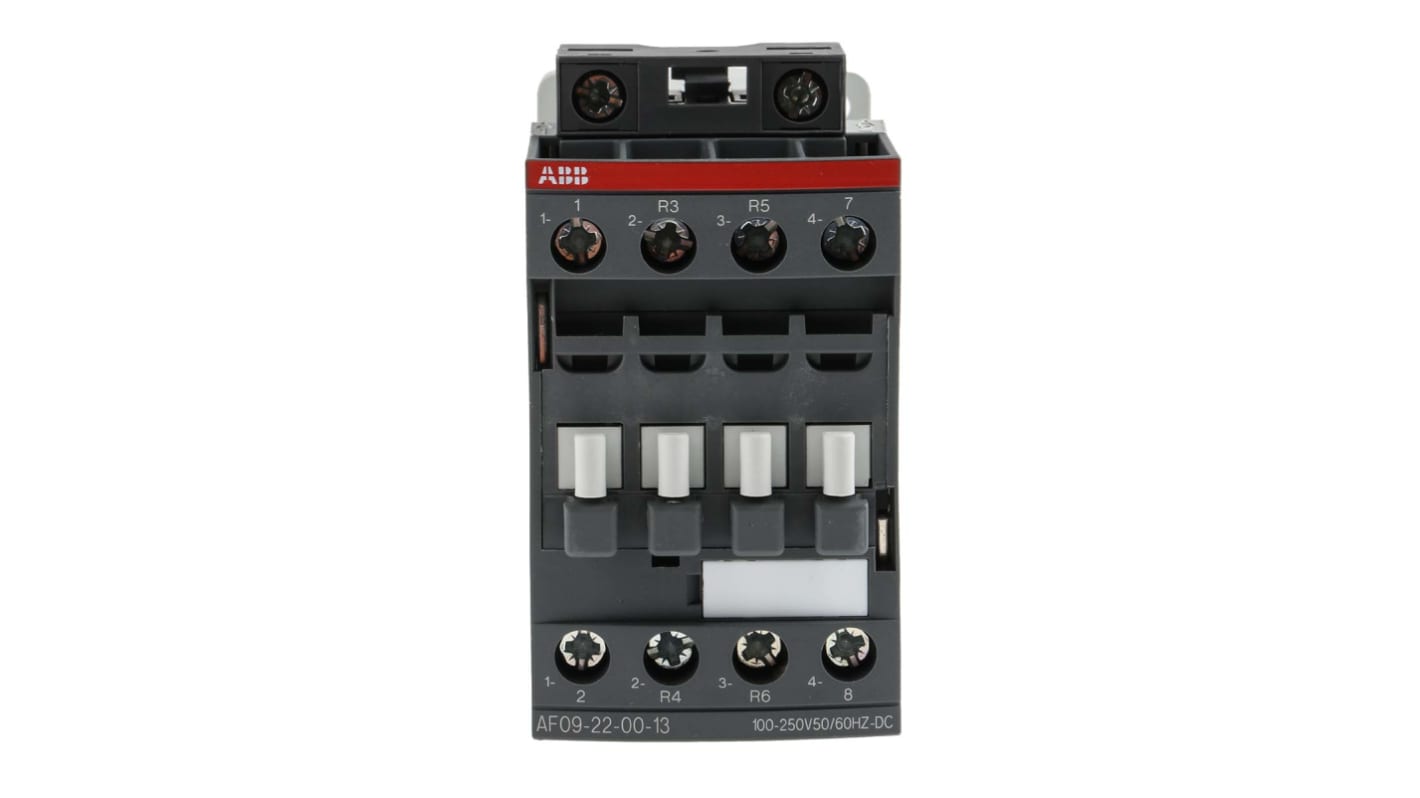

ABB AF09 AF Contactor, 230 V ac Coil, 4-Pole, 25 A, 4 kW, 2NO + 2NC, 690 V ac
- RS Stock No.:
- 711-6231
- Distrelec Article No.:
- 304-22-305
- Mfr. Part No.:
- 1SBL137501R1300 AF09-22-00-13
- Brand:
- ABB
Subtotal (1 unit)*
£38.53
(exc. VAT)
£46.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 49 unit(s) ready to ship
- Plus 23 unit(s) ready to ship from another location
- Plus 999,999,950 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £38.53 |
*price indicative
- RS Stock No.:
- 711-6231
- Distrelec Article No.:
- 304-22-305
- Mfr. Part No.:
- 1SBL137501R1300 AF09-22-00-13
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 230 V ac | |
| Number of Poles | 4 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 25 A | |
| Series | AF | |
| Range | AF09 | |
| Power Rating | 4 kW | |
| Function | Motor Control | |
| Normal State Configuration | 2NO + 2NC | |
| Number Of Auxiliary Contacts | 0 | |
| Terminal Type | Screw | |
| Length | 80mm | |
| Width | 45mm | |
| Depth | 77mm | |
| Control Voltage | 100 → 250 V | |
| Mounting Style | DIN Rail | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -40°C | |
| Pole and Throw Configuration | 4P | |
Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 230 V ac | ||
Number of Poles 4 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 25 A | ||
Series AF | ||
Range AF09 | ||
Power Rating 4 kW | ||
Function Motor Control | ||
Normal State Configuration 2NO + 2NC | ||
Number Of Auxiliary Contacts 0 | ||
Terminal Type Screw | ||
Length 80mm | ||
Width 45mm | ||
Depth 77mm | ||
Control Voltage 100 → 250 V | ||
Mounting Style DIN Rail | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Pole and Throw Configuration 4P | ||
ABB Contactor, 10mm Wire Stripping Length, 690V AC Contact Rating - AF Series - 1SBL137501R1300
Keep your motor control operations ticking over safely with this contactor from ABB. It's ideal for dealing with high start-up loads that might otherwise strain your infrastructure. This makes it suited to pump control, elevator or heating systems in 3-phase arrangements. The assembly's block-shaped design lends itself to stacking in rows for more complex electrical networks. An IP20 rating means it's touch-proof and resistant to tools, fixings or wires that are bigger than 12mm.
Features & Benefits
• Inbuilt 6kV surge protection prevents overvoltage from damaging your equipment
• Screw terminals mean a screwdriver is all that's needed for installation
• Space-efficient dimensions of 86 (H) x 45 (W) x 77mm (D) slot neatly into smaller enclosures
• Light 270g weight ensures it's easy to handle and won't strain the mounting surface
• Handles temperatures from -40°C to +70°C so it won't break a sweat in harsh factory conditions
• Screw terminals mean a screwdriver is all that's needed for installation
• Space-efficient dimensions of 86 (H) x 45 (W) x 77mm (D) slot neatly into smaller enclosures
• Light 270g weight ensures it's easy to handle and won't strain the mounting surface
• Handles temperatures from -40°C to +70°C so it won't break a sweat in harsh factory conditions
Applications
• Bottling plants
• Liquid management
• Industrial automation
• Cooling equipment
• Liquid management
• Industrial automation
• Cooling equipment
How many times an hour can I operate this product?
This contactor delivers up to 3,600 operating cycles per hour, so it's ideal for use with demanding installations.
