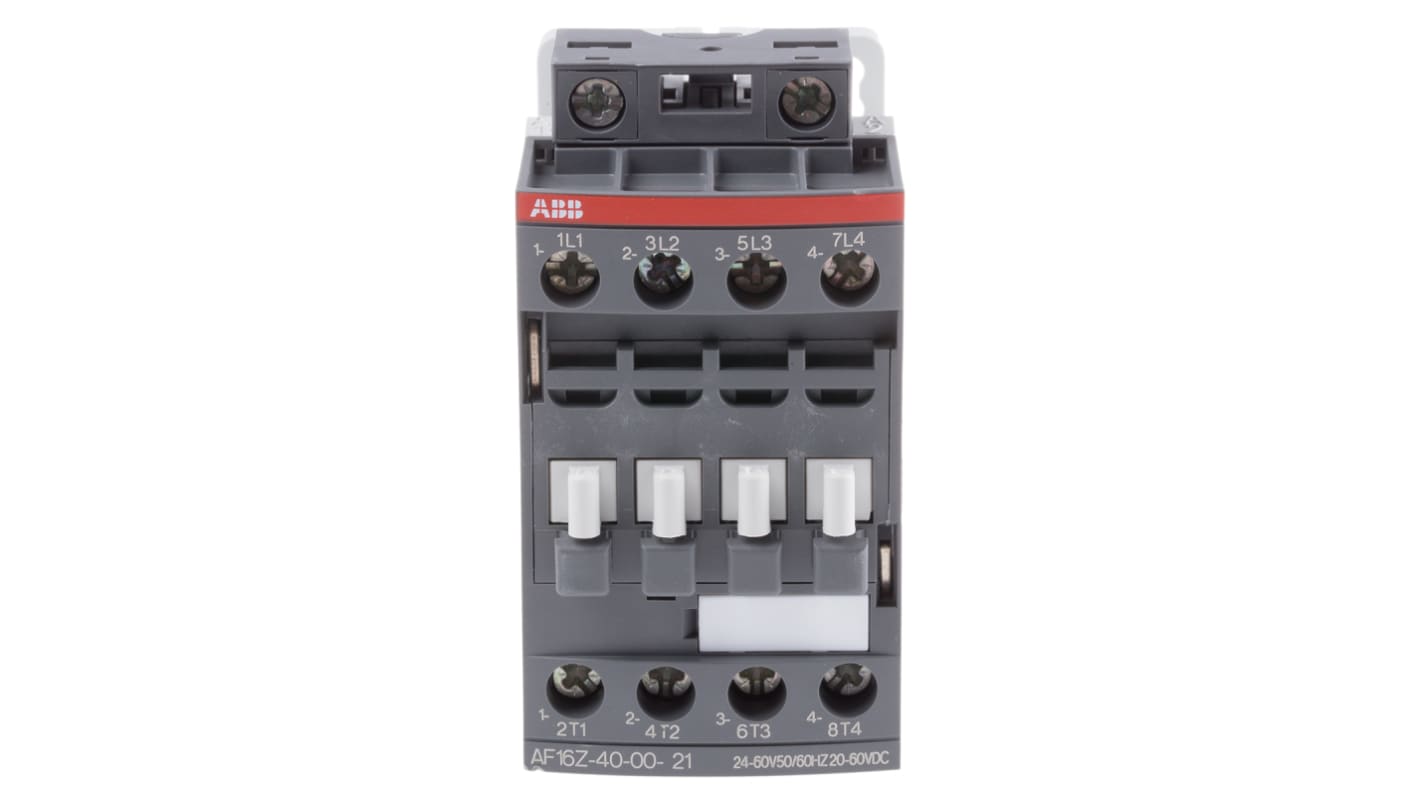

ABB AF16Z-40-00-21 AF Contactor, 24 V ac/dc Coil, 4-Pole, 10.5 A, 7.5 kW, 4NO, 690 V ac
- RS Stock No.:
- 711-6199
- Mfr. Part No.:
- 1SBL176201R2100 AF16Z-40-00-21
- Brand:
- ABB
Subtotal (1 unit)*
£103.90
(exc. VAT)
£124.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 27 October 2025
- Plus 12 unit(s) shipping from 27 October 2025
- Plus 999,999,997 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £103.90 |
*price indicative
- RS Stock No.:
- 711-6199
- Mfr. Part No.:
- 1SBL176201R2100 AF16Z-40-00-21
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 24 V ac/dc | |
| Number of Poles | 4 | |
| Contact Voltage Rating | 690 V ac | |
| Contact Current Rating | 10.5 A | |
| Range | AF16Z-40-00-21 | |
| Power Rating | 7.5 kW | |
| Series | AF | |
| Normal State Configuration | 4NO | |
| Terminal Type | Screw | |
| Length | 86mm | |
| Width | 45mm | |
| Depth | 77mm | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 24 V ac/dc | ||
Number of Poles 4 | ||
Contact Voltage Rating 690 V ac | ||
Contact Current Rating 10.5 A | ||
Range AF16Z-40-00-21 | ||
Power Rating 7.5 kW | ||
Series AF | ||
Normal State Configuration 4NO | ||
Terminal Type Screw | ||
Length 86mm | ||
Width 45mm | ||
Depth 77mm | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
ABB AF Series Contactor, 24V AC/DC Coil Voltage, 7.5kW Power Rating - 1SBL176201R2100 AF16Z-40-00-21
This contactor is engineered for effective motor control, ensuring dependable performance across a range of electrical applications. It can manage motors up to 7.5 kW and functions efficiently in environments with varying temperatures. The model features a versatile control voltage range, making it suitable for numerous electrical installations.
Features & Benefits
• Accommodates control voltages from 24V to 60V for increased flexibility
• High current rating of 10.5A promotes efficient operation
• IEC certified, ensuring compliance with industrial standards
• Compact design enables straightforward DIN rail mounting
• Integrated surge protection improves electrical stability
• High current rating of 10.5A promotes efficient operation
• IEC certified, ensuring compliance with industrial standards
• Compact design enables straightforward DIN rail mounting
• Integrated surge protection improves electrical stability
Applications
• Controls motors in industrial environments
• Well-suited for areas with variable power supply conditions
• Well-suited for areas with variable power supply conditions
What type of terminals does it have for connections?
It is equipped with screw terminals, allowing for secure and easy connections.
Can it operate effectively in high-temperature environments?
Yes, it reliably functions at temperatures of up to +70°C.
What is the maximum power it can manage?
It can control motors with a maximum power rating of 7.5 kW.
Is there any specific mounting requirement for installation?
It is designed for effortless installation on DIN rails, simplifying the setup process.
