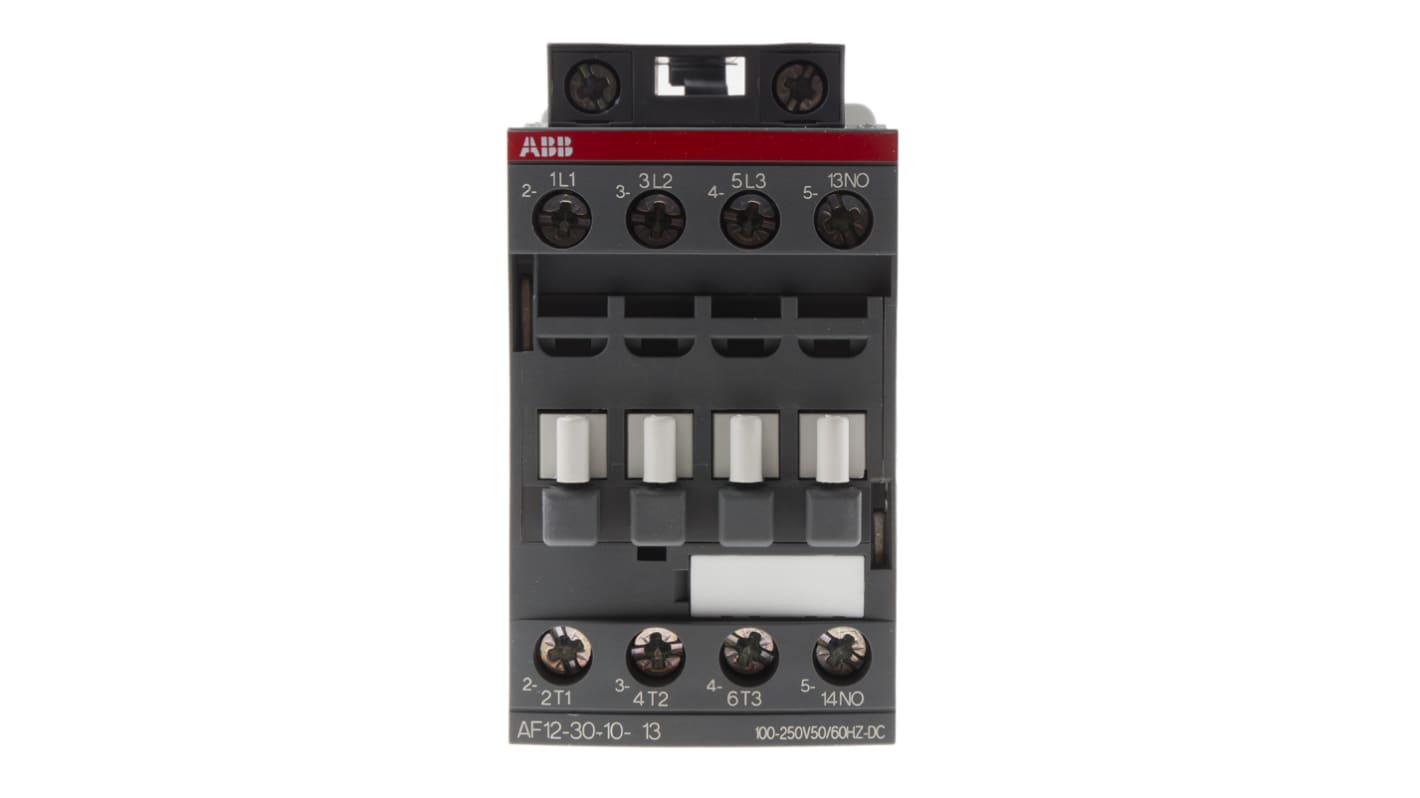

ABB AF12 Contactor, 230V ac Coil, 3-Pole, 9 A, 5.5 kW 250V, 3 NO, 690V ac
- RS Stock No.:
- 711-6111
- Mfr. Part No.:
- 1SBL157001R1310 AF12-30-10-13
- Brand:
- ABB
Subtotal (1 unit)*
£44.49
(exc. VAT)
£53.39
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 34 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
- Plus 20 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £44.49 |
*price indicative
- RS Stock No.:
- 711-6111
- Mfr. Part No.:
- 1SBL157001R1310 AF12-30-10-13
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 230V ac | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 690V ac | |
| Contact Current | 9A | |
| Series | AF12 | |
| Power Rating | 5.5kW | |
| Mount Type | DIN Rail | |
| Function | Capacitor Switching, Motor Control | |
| Normal State Configuration | 3 NO | |
| Number of Auxiliary Contacts | 1 | |
| Auxiliary Contact Configuration | 1 NO | |
| Terminal Type | Screw | |
| Contactor Application | Capacitor Switching, Motor Control | |
| Control Circuit Voltage Uc | 250V | |
| Minimum Operating Temperature | -40°C | |
| Operational Current Ie | 12A | |
| Maximum Operating Temperature | 70°C | |
| Depth | 77mm | |
| Length | 80mm | |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL | |
| Width | 45mm | |
| Pole and Throw Configuration | 3P | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 230V ac | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 690V ac | ||
Contact Current 9A | ||
Series AF12 | ||
Power Rating 5.5kW | ||
Mount Type DIN Rail | ||
Function Capacitor Switching, Motor Control | ||
Normal State Configuration 3 NO | ||
Number of Auxiliary Contacts 1 | ||
Auxiliary Contact Configuration 1 NO | ||
Terminal Type Screw | ||
Contactor Application Capacitor Switching, Motor Control | ||
Control Circuit Voltage Uc 250V | ||
Minimum Operating Temperature -40°C | ||
Operational Current Ie 12A | ||
Maximum Operating Temperature 70°C | ||
Depth 77mm | ||
Length 80mm | ||
Standards/Approvals CCC, CSA, EAC, IEC, RoHS, UL | ||
Width 45mm | ||
Pole and Throw Configuration 3P | ||
ABB Contactor, Screw Termination, 270g Weight - AF Series - 1SBL157001R1310
Take charge of the electrical load in your industrial equipment with this contactor from ABB. A 3-pole configuration means you can regulate three phases simultaneously to give you multi-circuit control. As the unit features an in-built surge protector, it boosts safety by shielding your machinery from sudden spikes. Screw termination achieves a vibration-proof connection and simplifies wiring, making this a reliable option that's easy to install. The terminals are IP20-rated, meaning the contactor's touch-proof and protected against solid objects larger than 12.5mm.
Features & Benefits
• Weighs just 270g, so it's easy to handle during installation
• 6kV rated impulse withstand voltage for high protection against transient overvoltages
• Operating altitude of 3,000m for use in elevated settings
• Voltage rating of 690V to work with high-voltage systems
Applications
• HVAC systems
• Lighting rigs
• Electric motors
• Robotic equipment
How much vibration can this contactor put up with?
It withstands up to 2g of vibration in a closed system and 4g in an open system, making it suitable for heavy-duty industrial applications and environments where significant movement and mechanical disturbance are expected
