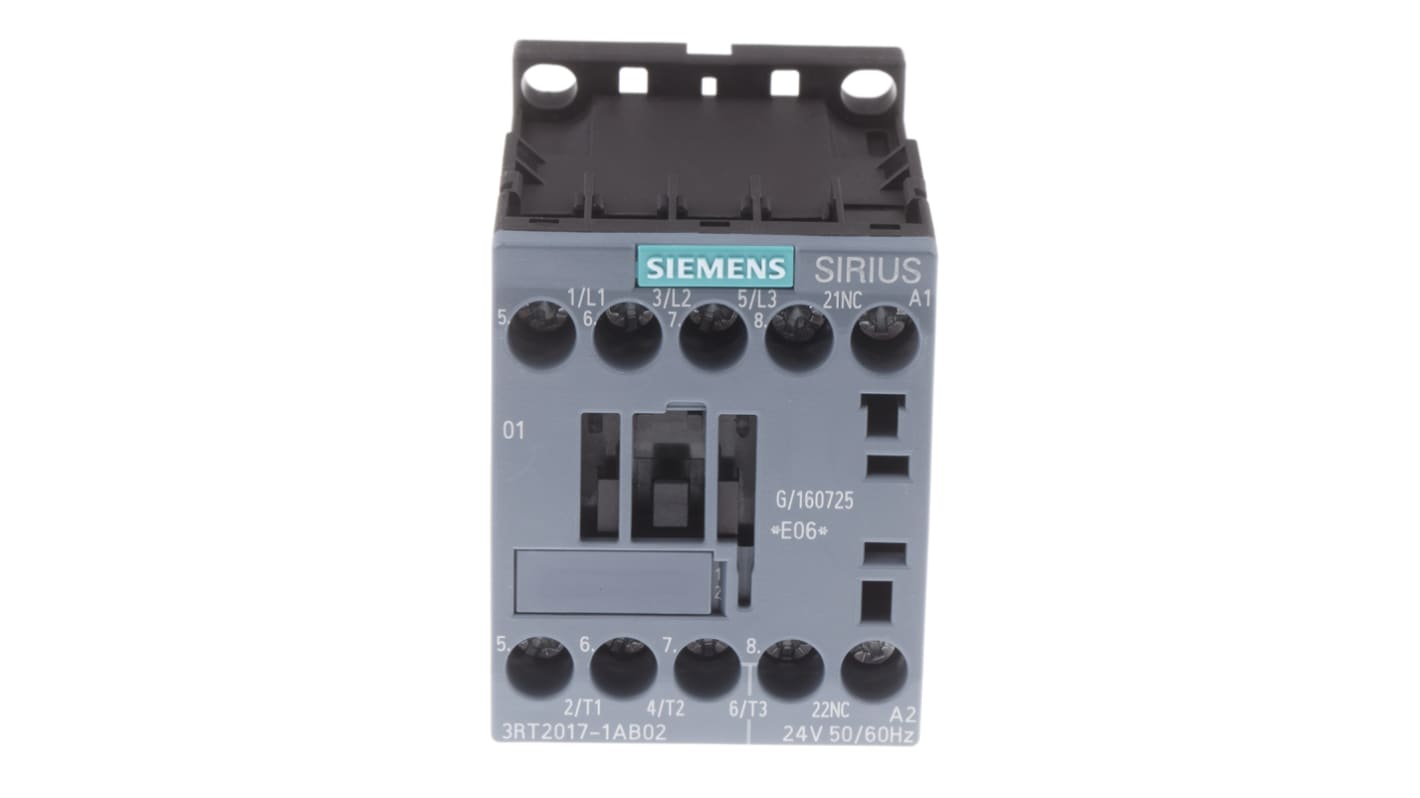

Siemens SIRIUS 3RT Size S00, 3RT2 Contactor, 24 V ac Coil, 3-Pole, 12 A, 5.5 kW, 3NO, 400 V ac
- RS Stock No.:
- 706-1162
- Distrelec Article No.:
- 304-01-966
- Mfr. Part No.:
- 3RT2017-1AB02
- Brand:
- Siemens
Subtotal (1 unit)*
£38.49
(exc. VAT)
£46.19
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 121 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £38.49 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 706-1162
- Distrelec Article No.:
- 304-01-966
- Mfr. Part No.:
- 3RT2017-1AB02
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 24 V ac | |
| Number of Poles | 3 | |
| Contact Voltage Rating | 400 V ac | |
| Contact Current Rating | 12 A | |
| Power Rating | 5.5 kW | |
| Series | Size S00, 3RT2 | |
| Range | SIRIUS 3RT | |
| Normal State Configuration | 3NO | |
| Number Of Auxiliary Contacts | 1 | |
| Terminal Type | Screw | |
| Width | 45mm | |
| Length | 57.5mm | |
| Depth | 73mm | |
| Better World Claim | Low carbon manufacture | |
| Better World Product | Yes | |
| Load Current | 11A | |
| Control Voltage | 24 V ac | |
| Mounting Style | Screw Mount, Snap-on Mount | |
| Pole and Throw Configuration | 3P | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 24 V ac | ||
Number of Poles 3 | ||
Contact Voltage Rating 400 V ac | ||
Contact Current Rating 12 A | ||
Power Rating 5.5 kW | ||
Series Size S00, 3RT2 | ||
Range SIRIUS 3RT | ||
Normal State Configuration 3NO | ||
Number Of Auxiliary Contacts 1 | ||
Terminal Type Screw | ||
Width 45mm | ||
Length 57.5mm | ||
Depth 73mm | ||
Better World Claim Low carbon manufacture | ||
Better World Product Yes | ||
Load Current 11A | ||
Control Voltage 24 V ac | ||
Mounting Style Screw Mount, Snap-on Mount | ||
Pole and Throw Configuration 3P | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +60°C | ||
- Load feeders Configuring SIRIUS Innovations Configuration Manual 04/2010
- Switching Devices for Load Feeders
- Sirius Innovation Accessory Guide
- Sirius Innovation Catalogue
- Sirius Innovations Switching Devices
- Solutions for frequent switching or soft starting
- Basic Information
- Siemens Sirius Migration
- Sirius: Migrating From Classic to Innovation
- Datasheet 3RT2017-1AB02
- Environmental Product Declaration - Overview
- Siemens EcoTech label
- Environmental Product Declaration
- COO (Country of Origin):
- DE
Siemens Contactor, Screw Terminals, 3NO Configuration - SIRIUS Innovation Series - 3RT2017-1AB02
Ensure your industrial automation equipment operates safely with this contactor from Siemens. It has a power rating of 5.5kW and a contact voltage rating of 400V AC, so it's compatible with heavy loads. There are labelled contacts on the front and integrated mounting holes and DIN rail clips on the rear to keep installation quick and simple. A mechanical lifespan of 30,000,000 operating cycles means you can be sure of long-lasting performance. This is a suitable choice for three-phase applications that switch on and off frequently, and you'll commonly find it used with pumps, fans and motors on assembly lines.
Features & Benefits
• Finger-safe housing to protect against electric shocks
• Modular design makes it easy to combine with relays and to mount accessories
• Wide operating temperature range of -25°C to +60°C for use in harsh conditions
• Short-circuit protection of main circuit by fuse link, to minimise the chance of electrical damage
• Modular design makes it easy to combine with relays and to mount accessories
• Wide operating temperature range of -25°C to +60°C for use in harsh conditions
• Short-circuit protection of main circuit by fuse link, to minimise the chance of electrical damage
What size is this contactor?
This contactor has dimensions of 58 (H) x 45 (W) x 73mm (D) to keep it compact and save on space in your control cabinet.
