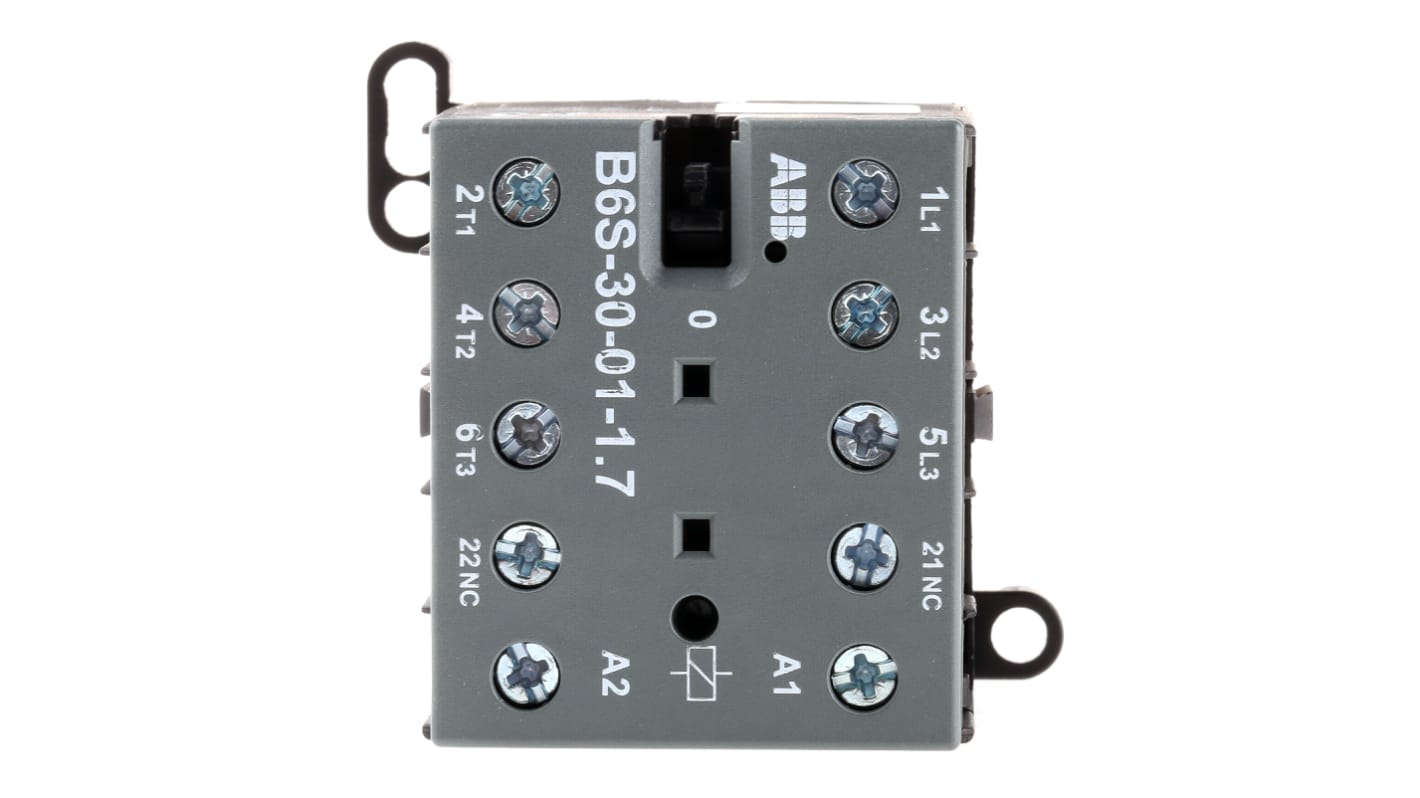

ABB B6S Contactor, 24V dc Coil, 3-Pole, 20 A, 4 kW 24V dc, 3 NO, 690V ac
- RS Stock No.:
- 455-6456
- Mfr. Part No.:
- GJL1213001R7011 - B6S-30-01-1.7-71
- Brand:
- ABB
Subtotal (1 unit)*
£27.84
(exc. VAT)
£33.41
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 22 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £27.84 |
*price indicative
- RS Stock No.:
- 455-6456
- Mfr. Part No.:
- GJL1213001R7011 - B6S-30-01-1.7-71
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor | |
| Coil Voltage | 24V dc | |
| Number of Poles | 3 | |
| Contact Voltage | 690V ac | |
| Contact Current | 20A | |
| Power Rating | 4kW | |
| Series | B6S | |
| Function | Motor Control | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO | |
| Number of Auxiliary Contacts | 1 | |
| Auxiliary Contact Configuration | 1 NC | |
| Terminal Type | Screw | |
| Control Circuit Voltage Uc | 24V dc | |
| Operational Current Ie | 16A | |
| Contactor Application | Motor Control | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Length | 58mm | |
| Depth | 47mm | |
| Width | 53mm | |
| Standards/Approvals | CCC, CE, CSA, EAC, IEC, RoHS, UKCA, UL | |
| Pole and Throw Configuration | 3 | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor | ||
Coil Voltage 24V dc | ||
Number of Poles 3 | ||
Contact Voltage 690V ac | ||
Contact Current 20A | ||
Power Rating 4kW | ||
Series B6S | ||
Function Motor Control | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO | ||
Number of Auxiliary Contacts 1 | ||
Auxiliary Contact Configuration 1 NC | ||
Terminal Type Screw | ||
Control Circuit Voltage Uc 24V dc | ||
Operational Current Ie 16A | ||
Contactor Application Motor Control | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Length 58mm | ||
Depth 47mm | ||
Width 53mm | ||
Standards/Approvals CCC, CE, CSA, EAC, IEC, RoHS, UKCA, UL | ||
Pole and Throw Configuration 3 | ||
- COO (Country of Origin):
- DE
ABB B6S Series Contactor, 690V AC Contact Voltage Rating, 4kW - GJL1213001R7011 - B6S-30-01-1.7-71
This contactor is engineered for efficient electrical load switching with a compact 3-pole configuration and 24V DC coil voltage. Measuring 57.5mm in length, 52.5mm in width, and 46.5mm in depth, it is ideal for space-constrained installations. With a capacity to handle up to 20A and a contact voltage rating of 690V AC, it is suitable for industrial environments.
Features & Benefits
• Space-saving compact design optimises control panel layouts
• Screw terminals provide straightforward and secure installation
• 3-pole configuration supports diverse electrical load management
• Auxiliary contact enhances control and functionality
• Low coil consumption allows for direct PLC control
Applications
• Used for controlling single-phase or three-phase loads
• Ideal for applications requiring effective switching solutions
Can it be mounted on a DIN rail?
Yes, it is designed for DIN rail mounting.
Is it suitable for high ambient temperatures?
Yes, it operates effectively at temperatures up to +55°C.
