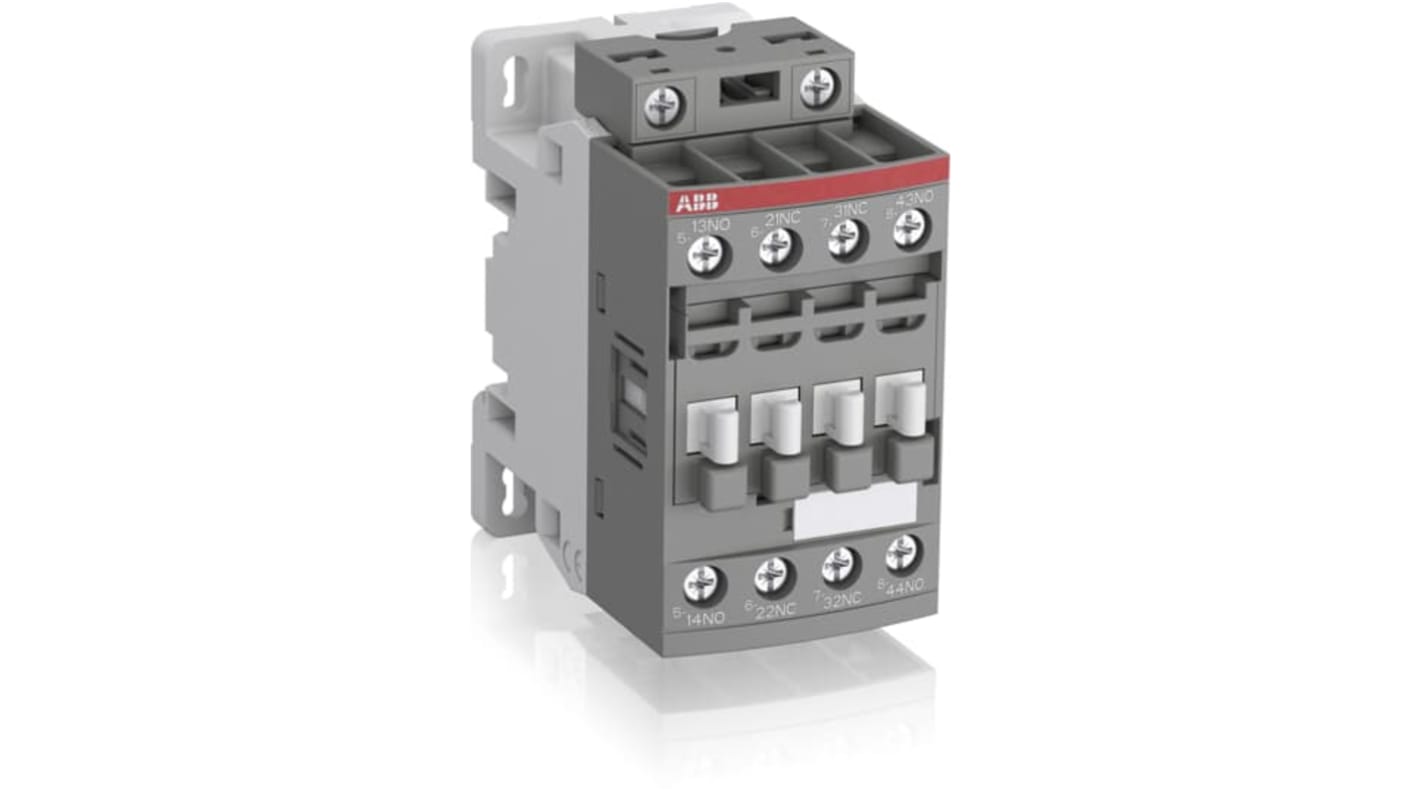

ABB NF40E-11 Contactor Relay, 24V, 60 V Coil, 4-Pole, 4 A 24V, 500 V, 4 NO, 250V
- RS Stock No.:
- 258-9442
- Mfr. Part No.:
- 1SBH137001R1140
- Brand:
- ABB
Subtotal (1 unit)*
£37.29
(exc. VAT)
£44.75
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 14 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £37.29 |
*price indicative
- RS Stock No.:
- 258-9442
- Mfr. Part No.:
- 1SBH137001R1140
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor Relay | |
| Coil Voltage | 24, 60V | |
| Number of Poles | 4 | |
| Contact Voltage | 250V | |
| Contact Current | 4A | |
| Series | NF40E-11 | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 4 NO | |
| Auxiliary Contact Configuration | 4 NO | |
| Number of Auxiliary Contacts | 4 | |
| Terminal Type | Screw | |
| Operational Current Ie | 16A | |
| Control Circuit Voltage Uc | 24, 500V | |
| Minimum Operating Temperature | -40°C | |
| Contactor Application | Auxiliary Contactor | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CSA C22.2 N°14, IEC 60947-5-1 and EN 60947-5-1, UL 508 | |
| Width | 77mm | |
| Depth | 86mm | |
| Length | 86mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor Relay | ||
Coil Voltage 24, 60V | ||
Number of Poles 4 | ||
Contact Voltage 250V | ||
Contact Current 4A | ||
Series NF40E-11 | ||
Mount Type DIN Rail | ||
Normal State Configuration 4 NO | ||
Auxiliary Contact Configuration 4 NO | ||
Number of Auxiliary Contacts 4 | ||
Terminal Type Screw | ||
Operational Current Ie 16A | ||
Control Circuit Voltage Uc 24, 500V | ||
Minimum Operating Temperature -40°C | ||
Contactor Application Auxiliary Contactor | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CSA C22.2 N°14, IEC 60947-5-1 and EN 60947-5-1, UL 508 | ||
Width 77mm | ||
Depth 86mm | ||
Length 86mm | ||
- COO (Country of Origin):
- FR
1SBH137001R1140
The ABB NFZ contactor relay is used for switching auxiliary and control circuits. NFZ contactor relay include an electronic coil interface accepting a wide control voltage Uc min. to Uc max. It has only four coils cover control voltages between 24 to 250 V 50/60 Hz or 12 to 250 V DC. It can manage large control voltage variations.
Screw terminals
IP20 Protection
