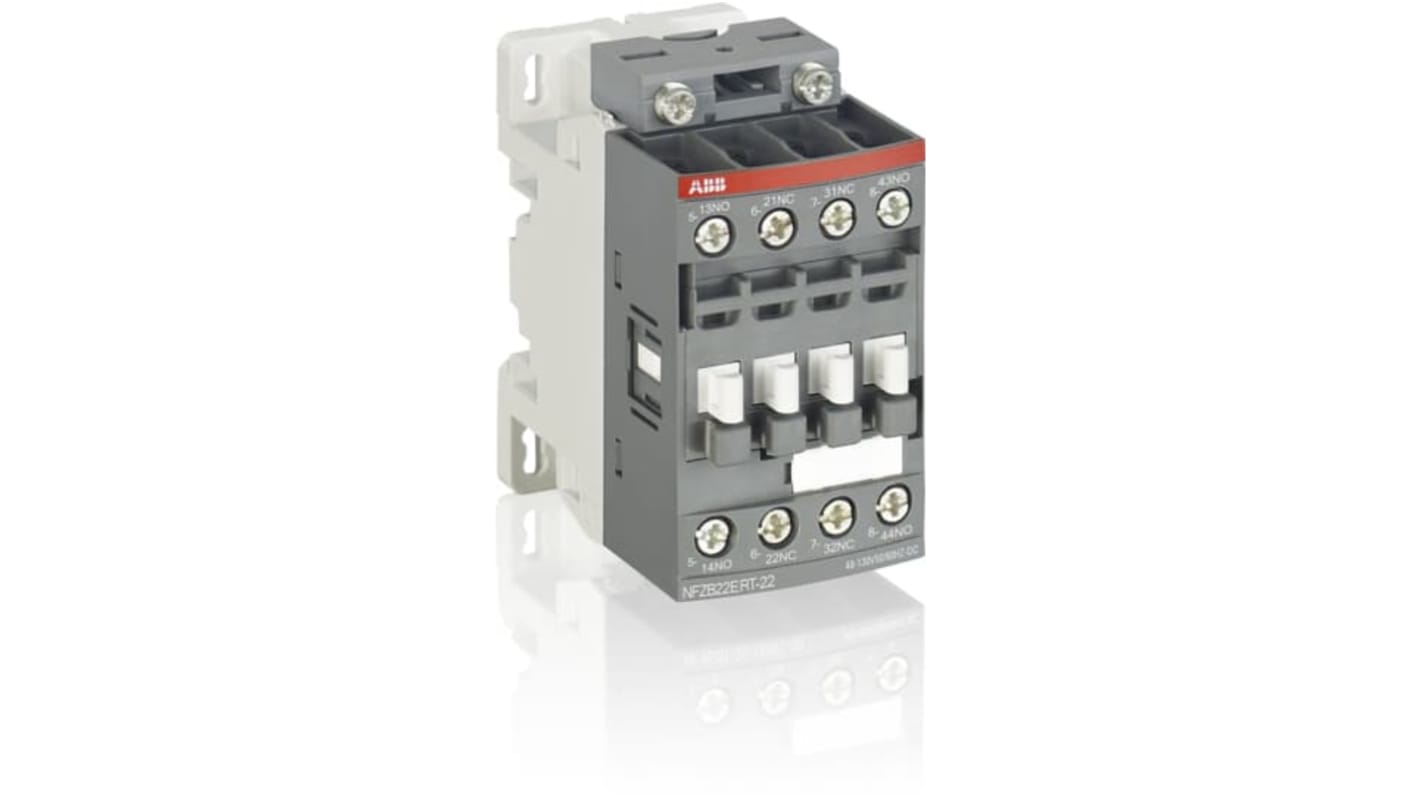

ABB NFZB31ERT-23 Contactor Relay, 100V, 250 V Coil, 4-Pole, 4 A 100V, 250 V, 3 NO/1 NC, 690V
- RS Stock No.:
- 258-9435
- Mfr. Part No.:
- 1SBH136060R2331
- Brand:
- ABB
Subtotal (1 unit)*
£90.33
(exc. VAT)
£108.40
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £90.33 |
*price indicative
- RS Stock No.:
- 258-9435
- Mfr. Part No.:
- 1SBH136060R2331
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor Relay | |
| Coil Voltage | 100, 250V | |
| Number of Poles | 4 | |
| Contact Voltage | 690V | |
| Contact Current | 4A | |
| Series | NFZB31ERT-23 | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO/1 NC | |
| Number of Auxiliary Contacts | 4 | |
| Auxiliary Contact Configuration | 3 NO/1 NC | |
| Terminal Type | Ring Tongue | |
| Control Circuit Voltage Uc | 100, 250V | |
| Minimum Operating Temperature | -40°C | |
| Contactor Application | Auxiliary Contactor | |
| Operational Current Ie | 16A | |
| Maximum Operating Temperature | 70°C | |
| Depth | 86mm | |
| Width | 86mm | |
| Standards/Approvals | UL 60947-5-1, IEC/EN 60947-5-1, IEC/EN 60947-1, IEC 60077-2 (applicable parts), IEC 60077-1 (applicable parts), CSA C22.2 No. 60947-5-1 | |
| Length | 86mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor Relay | ||
Coil Voltage 100, 250V | ||
Number of Poles 4 | ||
Contact Voltage 690V | ||
Contact Current 4A | ||
Series NFZB31ERT-23 | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO/1 NC | ||
Number of Auxiliary Contacts 4 | ||
Auxiliary Contact Configuration 3 NO/1 NC | ||
Terminal Type Ring Tongue | ||
Control Circuit Voltage Uc 100, 250V | ||
Minimum Operating Temperature -40°C | ||
Contactor Application Auxiliary Contactor | ||
Operational Current Ie 16A | ||
Maximum Operating Temperature 70°C | ||
Depth 86mm | ||
Width 86mm | ||
Standards/Approvals UL 60947-5-1, IEC/EN 60947-5-1, IEC/EN 60947-1, IEC 60077-2 (applicable parts), IEC 60077-1 (applicable parts), CSA C22.2 No. 60947-5-1 | ||
Length 86mm | ||
- COO (Country of Origin):
- FR
1SBH136060R2331
The ABB contactor relay comply with the latest railway rolling stock standards and allow installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. It is used for switching auxiliary and control circuits. It Improves the compactness of the installations.
Wide range of auxiliary contact blocks for front and side mounting
It has ring-tongue terminals
