ABB GJL131 Contactor, 24V Coil, 3-Pole, 12 A, 5.5 kW 24V, 4 NO, 690V
- RS Stock No.:
- 253-4839
- Mfr. Part No.:
- GJL1313009R8101
- Brand:
- ABB
Image representative of range
Subtotal (1 pack of 10 units)*
£453.23
(exc. VAT)
£543.88
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £45.323 | £453.23 |
*price indicative
- RS Stock No.:
- 253-4839
- Mfr. Part No.:
- GJL1313009R8101
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor | |
| Coil Voltage | 24V | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 12A | |
| Series | GJL131 | |
| Power Rating | 5.5kW | |
| Function | Mini Contactor | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 4 NO | |
| Number of Auxiliary Contacts | 1 | |
| Auxiliary Contact Configuration | 1 NO/0 NC | |
| Terminal Type | Solder Pin | |
| Minimum Operating Temperature | -20°C | |
| Operational Current Ie | 12A | |
| Control Circuit Voltage Uc | 24V | |
| Contactor Application | Control Unit | |
| Maximum Operating Temperature | 55°C | |
| Width | 46mm | |
| Length | 47.7mm | |
| Depth | 47.7mm | |
| Standards/Approvals | IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1 | |
| Pole and Throw Configuration | 3 | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor | ||
Coil Voltage 24V | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 12A | ||
Series GJL131 | ||
Power Rating 5.5kW | ||
Function Mini Contactor | ||
Mount Type DIN Rail | ||
Normal State Configuration 4 NO | ||
Number of Auxiliary Contacts 1 | ||
Auxiliary Contact Configuration 1 NO/0 NC | ||
Terminal Type Solder Pin | ||
Minimum Operating Temperature -20°C | ||
Operational Current Ie 12A | ||
Control Circuit Voltage Uc 24V | ||
Contactor Application Control Unit | ||
Maximum Operating Temperature 55°C | ||
Width 46mm | ||
Length 47.7mm | ||
Depth 47.7mm | ||
Standards/Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1 | ||
Pole and Throw Configuration 3 | ||
- COO (Country of Origin):
- DE

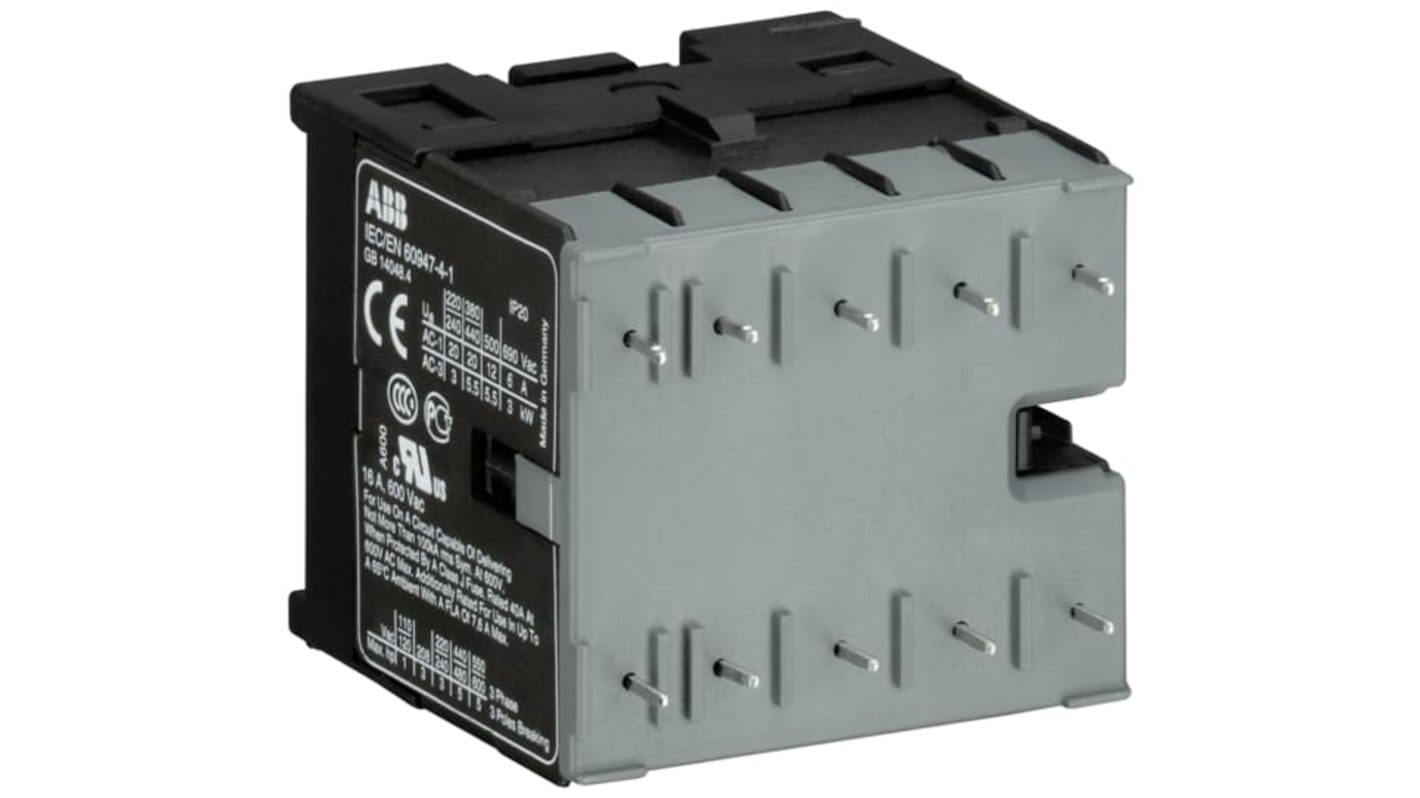

The ABB BC7-30-10-P mini contactor is a Compact 3 pole contactor with 1 auxiliary contact and soldering pins. Its ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buildings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals.
Degree of protection IP20
Ambient Air temperature for operation is -20 to +55 °C
Mechanical durability 10000000 cycle
