ABB GJL121 Contactor, 60V dc Coil, 3-Pole, 20 A, 4 kW 60V dc, 3 NO/1 NC, 690V
- RS Stock No.:
- 253-4755
- Mfr. Part No.:
- GJL1213001R0013
- Brand:
- ABB

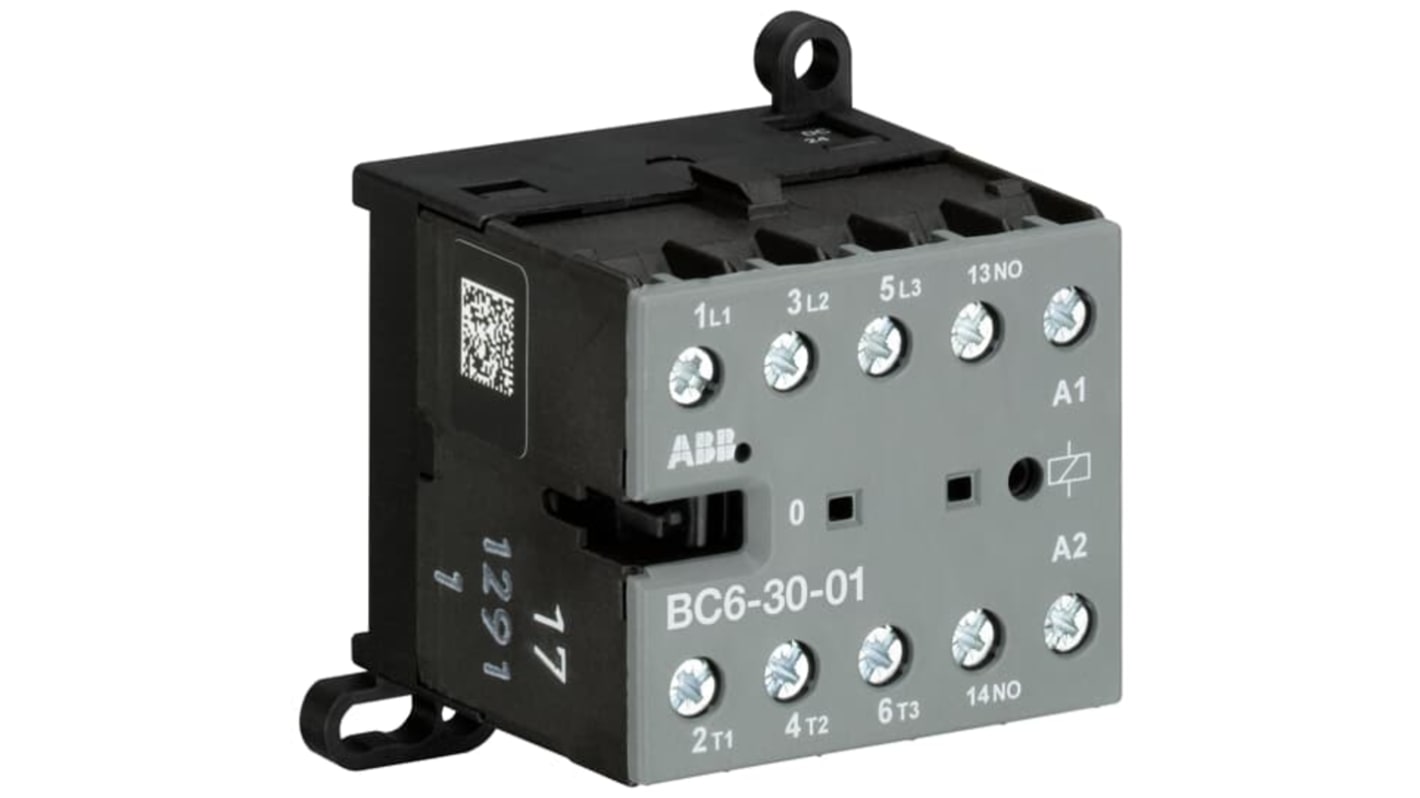

Image representative of range
Subtotal (1 pack of 10 units)*
£312.20
(exc. VAT)
£374.60
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £31.22 | £312.20 |
*price indicative
- RS Stock No.:
- 253-4755
- Mfr. Part No.:
- GJL1213001R0013
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor | |
| Coil Voltage | 60V dc | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 20A | |
| Power Rating | 4kW | |
| Series | GJL121 | |
| Function | Control Unit | |
| Mount Type | DIN Rail, Wall | |
| Normal State Configuration | 3 NO/1 NC | |
| Auxiliary Contact Configuration | 1 NC | |
| Number of Auxiliary Contacts | 1 | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Control Circuit Voltage Uc | 60V dc | |
| Contactor Application | Control Unit | |
| Operational Current Ie | 20A | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | IEC/EN 60947-5-1, IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1 | |
| Width | 52.5mm | |
| Length | 46.7mm | |
| Depth | 46.7mm | |
| Pole and Throw Configuration | 3P | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor | ||
Coil Voltage 60V dc | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 20A | ||
Power Rating 4kW | ||
Series GJL121 | ||
Function Control Unit | ||
Mount Type DIN Rail, Wall | ||
Normal State Configuration 3 NO/1 NC | ||
Auxiliary Contact Configuration 1 NC | ||
Number of Auxiliary Contacts 1 | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Control Circuit Voltage Uc 60V dc | ||
Contactor Application Control Unit | ||
Operational Current Ie 20A | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals IEC/EN 60947-5-1, IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1 | ||
Width 52.5mm | ||
Length 46.7mm | ||
Depth 46.7mm | ||
Pole and Throw Configuration 3P | ||
- COO (Country of Origin):
- DE
ABB GJL121 Series Contactor, 60V DC Coil Voltage, 20A Current Rating - GJL1213001R0013
This contactor is a key component in industrial automation, designed to reliably control electrical circuits. Featuring a Compact design with dimensions of 46.7mm x 52.5mm x 46.7mm, it accommodates various applications while delivering efficient performance. With a Coil voltage of 60 V DC and a power rating of 4 kW, this device is Ideal for systems requiring precise control and robust functionality.
Features & Benefits
• Configured with 3 poles to manage multiple circuits
• Handles up to 20 A, suitable for diverse applications
• Rated for 690 V, ensuring high voltage compatibility
• Includes 1 auxiliary contact for additional functionality
• DIN rail mounting style simplifies installation in control panels
• Handles up to 20 A, suitable for diverse applications
• Rated for 690 V, ensuring high voltage compatibility
• Includes 1 auxiliary contact for additional functionality
• DIN rail mounting style simplifies installation in control panels
Applications
• Utilised in motor control circuits for machinery operation
• Employed in lighting control systems for automation
• Suitable for HVAC systems to manage fan controls
• Frequently used in manufacturing processes for equipment management
• Employed in lighting control systems for automation
• Suitable for HVAC systems to manage fan controls
• Frequently used in manufacturing processes for equipment management
What operational temperature ranges can this unit endure?
It can operate effectively within a temperature range from -25°C to +55°C, making it suitable for various environments.
How does the auxiliary contact enhance its functionality?
The single auxiliary contact allows for additional control capabilities, facilitating status feedback or interlocking functions in complex systems.
Is it possible to mount the unit in confined spaces?
Yes, its Compact dimensions allow for easy installation in tight spaces typically found in control cabinets and panels.
What are the implications of having multiple poles in this device?
Having three poles enables the control of three separate circuits, allowing for more versatile applications in automation and process control.
