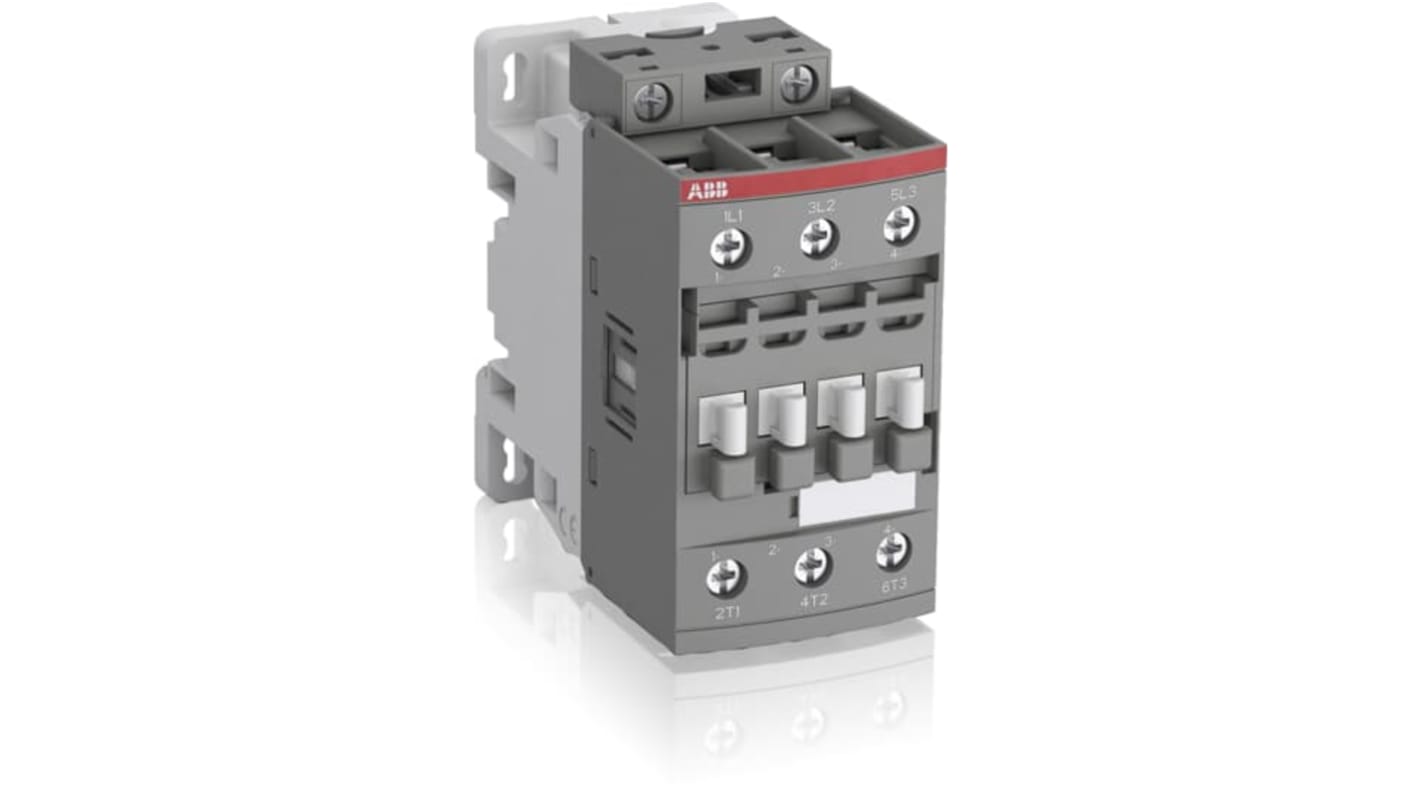

ABB 1SBL2 Contactor, 100V, 250 V Coil, 3-Pole, 50 A, 15 kW 100V, 250 V, 3 NO, 690V
- RS Stock No.:
- 253-1965
- Mfr. Part No.:
- 1SBL276001R2300
- Brand:
- ABB
Subtotal (1 unit)*
£153.49
(exc. VAT)
£184.19
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £153.49 |
*price indicative
- RS Stock No.:
- 253-1965
- Mfr. Part No.:
- 1SBL276001R2300
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 100, 250V | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 50A | |
| Power Rating | 15kW | |
| Series | 1SBL2 | |
| Function | Switching | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 3 NO | |
| Number of Auxiliary Contacts | 0 | |
| Terminal Type | Screw | |
| Contactor Application | Control Unit | |
| Control Circuit Voltage Uc | 100, 250V | |
| Minimum Operating Temperature | -40°C | |
| Operational Current Ie | 50A | |
| Maximum Operating Temperature | 70°C | |
| Width | 45mm | |
| Length | 86mm | |
| Standards/Approvals | UL 508, CSA C22.2 n° 14, IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1 | |
| Depth | 86mm | |
| Pole and Throw Configuration | 3P | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 100, 250V | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 50A | ||
Power Rating 15kW | ||
Series 1SBL2 | ||
Function Switching | ||
Mount Type DIN Rail | ||
Normal State Configuration 3 NO | ||
Number of Auxiliary Contacts 0 | ||
Terminal Type Screw | ||
Contactor Application Control Unit | ||
Control Circuit Voltage Uc 100, 250V | ||
Minimum Operating Temperature -40°C | ||
Operational Current Ie 50A | ||
Maximum Operating Temperature 70°C | ||
Width 45mm | ||
Length 86mm | ||
Standards/Approvals UL 508, CSA C22.2 n° 14, IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1 | ||
Depth 86mm | ||
Pole and Throw Configuration 3P | ||
- COO (Country of Origin):
- FR
ABB 1SBL2 Series Contactor, 3 Poles Configuration, 50A Current Rating - 1SBL276001R2300
This contactor is designed for industrial applications requiring reliable operation and control. The product features a robust construction with dimensions of 86mm x 45mm x 86mm, making it suitable for mounting on a DIN rail. It effectively manages a Coil voltage range of 100 to 250 V AC, ensuring versatility in various electrical environments.
Features & Benefits
• Controls motors up to 15 kW at 400 V AC
• Rated for 50 A current in power circuits
• Incorporates built in surge protection for reliability
• Designed for easy installation with screw terminals
• Rated for 50 A current in power circuits
• Incorporates built in surge protection for reliability
• Designed for easy installation with screw terminals
Applications
• Used for motor control in manufacturing systems
• Suitable for switching heavy electrical loads
• Operates in power distribution panels and control boxes
• Effective in automation systems needing reliable control solutions
• Suitable for switching heavy electrical loads
• Operates in power distribution panels and control boxes
• Effective in automation systems needing reliable control solutions
How does this contactor perform in varying electrical conditions?
It features a wide control voltage range, efficiently managing fluctuations which enhances performance in unstable networks while reducing energy consumption in control panels.
What is the significance of its 690V voltage rating?
This rating allows the contactor to operate safely and effectively in high-voltage environments, supporting various industrial applications without compromising on performance.
Can it be easily integrated into existing systems?
Yes, it is designed for DIN rail mounting and comes with screw terminals, making it straightforward to fit into current electrical setups while allowing for quick replacements or upgrades.
