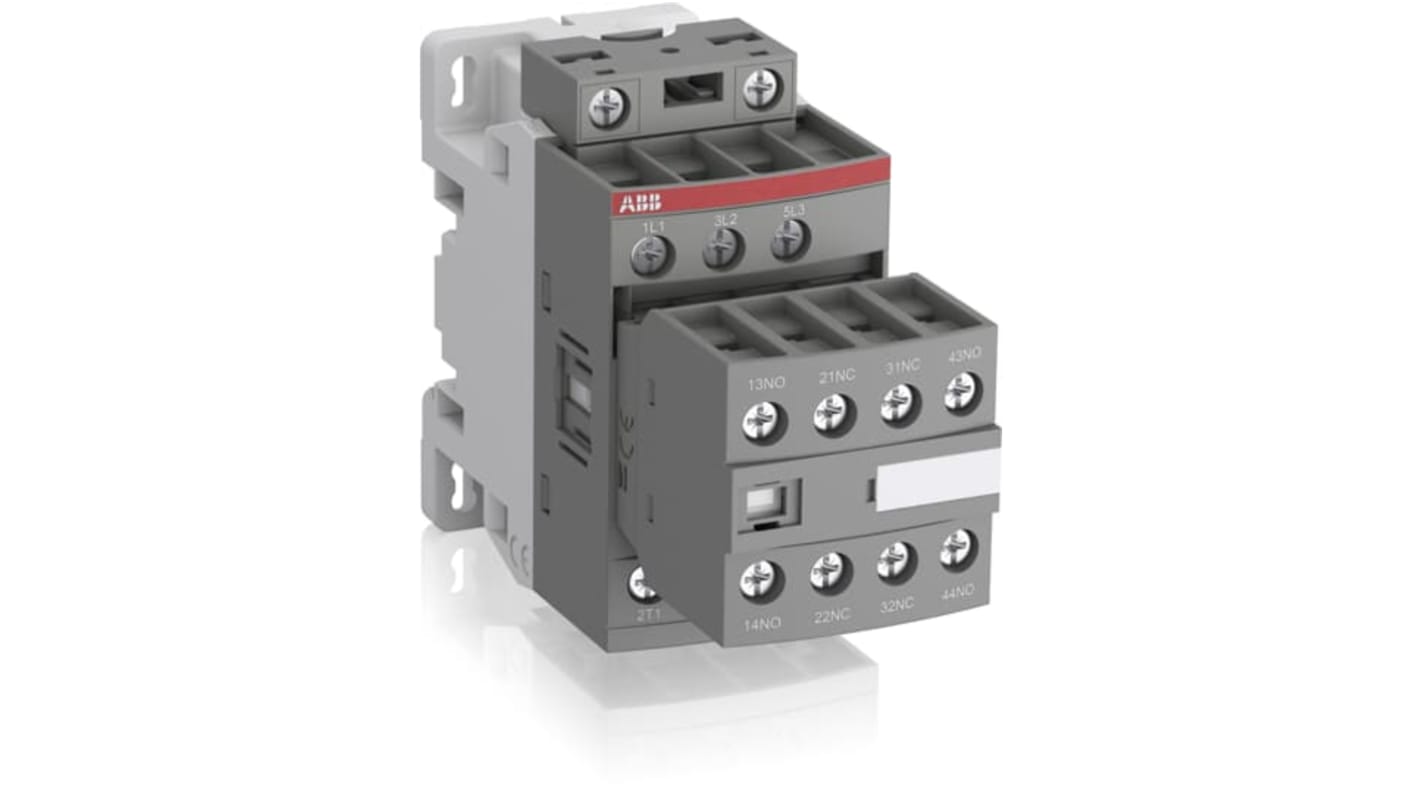

ABB 1SBL17 Contactor, 100V, 250 V Coil, 3-Pole, 30 A, 7.5 kW 100V, 250 V, 5 NO/2 NC, 690V
- RS Stock No.:
- 253-1926
- Mfr. Part No.:
- 1SBL177001R1322
- Brand:
- ABB
Subtotal (1 unit)*
£76.62
(exc. VAT)
£91.94
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £76.62 |
*price indicative
- RS Stock No.:
- 253-1926
- Mfr. Part No.:
- 1SBL177001R1322
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 100, 250V | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 30A | |
| Series | 1SBL17 | |
| Power Rating | 7.5kW | |
| Mount Type | DIN Rail | |
| Function | Motor Control | |
| Normal State Configuration | 5 NO/2 NC | |
| Number of Auxiliary Contacts | 4 | |
| Auxiliary Contact Configuration | 2 NO/2 NC | |
| Terminal Type | Screw | |
| Operational Current Ie | 30A | |
| Minimum Operating Temperature | -40°C | |
| Contactor Application | Motors up to 7.5 kW | |
| Control Circuit Voltage Uc | 100, 250V | |
| Maximum Operating Temperature | 70°C | |
| Length | 110.5mm | |
| Standards/Approvals | UL 508, CSA C22.2 n° 14, IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1 | |
| Width | 45mm | |
| Depth | 110.5mm | |
| Pole and Throw Configuration | 3P | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 100, 250V | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 30A | ||
Series 1SBL17 | ||
Power Rating 7.5kW | ||
Mount Type DIN Rail | ||
Function Motor Control | ||
Normal State Configuration 5 NO/2 NC | ||
Number of Auxiliary Contacts 4 | ||
Auxiliary Contact Configuration 2 NO/2 NC | ||
Terminal Type Screw | ||
Operational Current Ie 30A | ||
Minimum Operating Temperature -40°C | ||
Contactor Application Motors up to 7.5 kW | ||
Control Circuit Voltage Uc 100, 250V | ||
Maximum Operating Temperature 70°C | ||
Length 110.5mm | ||
Standards/Approvals UL 508, CSA C22.2 n° 14, IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1 | ||
Width 45mm | ||
Depth 110.5mm | ||
Pole and Throw Configuration 3P | ||
- COO (Country of Origin):
- FR
ABB 1SBL17 Series Contactor, 30A Current Rating , 100 to 250V AC Coil Voltage - 1SBL177001R1322
This contactor is a robust device designed for the control of industrial circuits. It features a 3-pole configuration and operates efficiently within a Coil voltage range of 100 to 250 V ac, making it suitable for various operational environments. The product dimensions are 110.5mm in length, 45mm in width, and 110.5mm in depth, ensuring compatibility with standard installations.
Features & Benefits
• Designed with pre mounted auxiliary contacts for enhanced functionality
• Operates effectively at high temperatures up to 70 degree C
• Comprehensive electrical switching capabilities with a 30 A rating
• Features a DIN rail mounting style for simple installation
• Built in surge protection to enhance reliability in unstable networks
• Operates effectively at high temperatures up to 70 degree C
• Comprehensive electrical switching capabilities with a 30 A rating
• Features a DIN rail mounting style for simple installation
• Built in surge protection to enhance reliability in unstable networks
Applications
• Used with industrial machinery for motor control and automation
• Suitable for that require high voltage ratings up to 690V
• Ideal for integrating with control panels in electrical systems
• Employed in environments with varying control voltage conditions
• Suitable for that require high voltage ratings up to 690V
• Ideal for integrating with control panels in electrical systems
• Employed in environments with varying control voltage conditions
What are the advantages of using a 3-pole configuration for motor control?
The 3-pole configuration allows for the effective management of three-phase motors, providing better efficiency and performance in industrial applications.
How does the product perform under extreme temperatures?
It has a high temperature rating, operating reliably from -40°C to +70°C, which makes it suitable for diverse climatic conditions.
What is the significance of the built-in surge protection?
The surge protection feature mitigates the risk of damage from voltage spikes, ensuring the longevity and durability of the device in fluctuating power environments.
Can this contactor handle varying frequencies, and what are its limits?
Yes, it operates effectively at both 50 Hz and 60 Hz, supporting a wide range of applications without compromise on performance.
