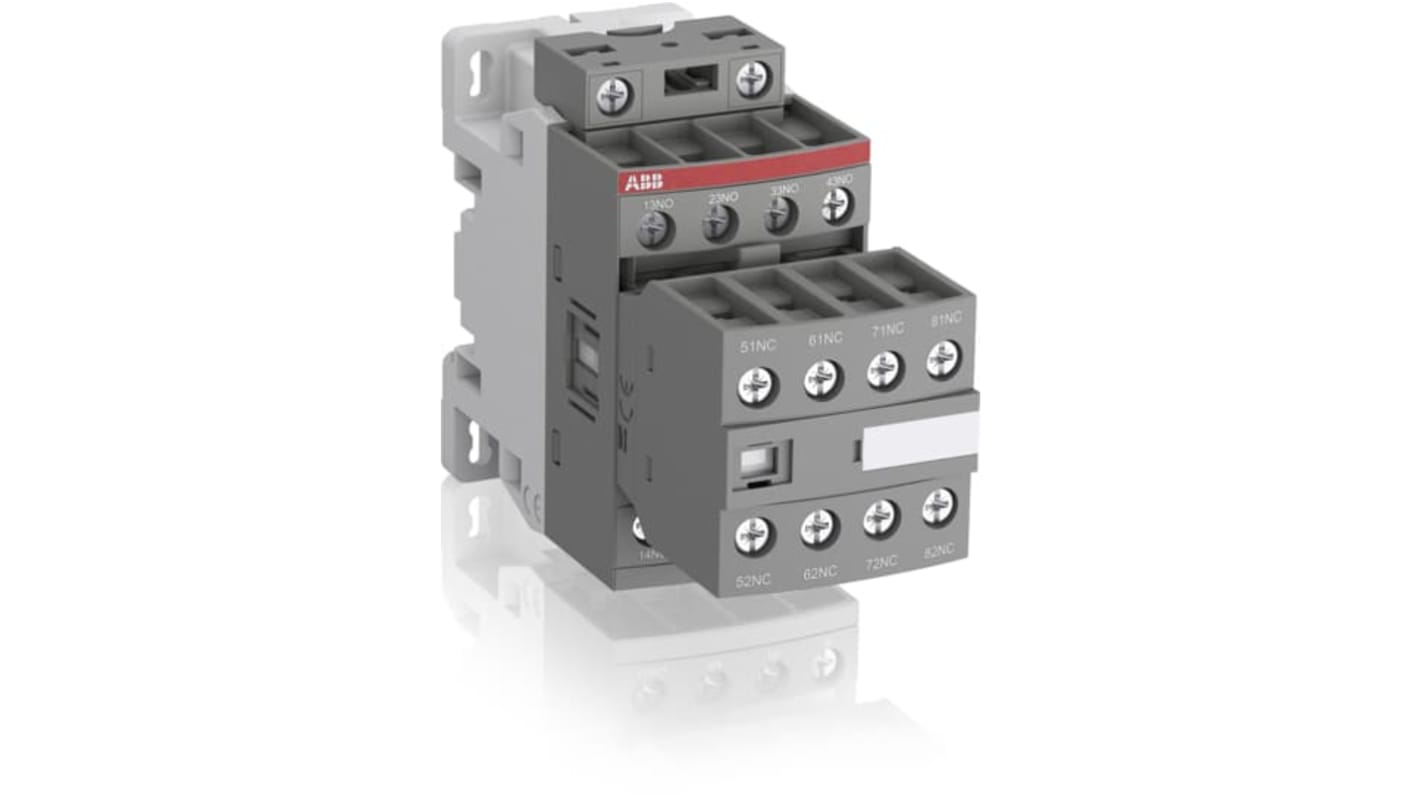

ABB NFZ Contactor Relay, 690 V Coil, 8-Pole, 6 A, 7NO/1NC
- RS Stock No.:
- 237-4860
- Mfr. Part No.:
- 1SBH136001R2071
- Brand:
- ABB
Subtotal (1 unit)*
£114.90
(exc. VAT)
£137.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £114.90 |
*price indicative
- RS Stock No.:
- 237-4860
- Mfr. Part No.:
- 1SBH136001R2071
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 690 V | |
| Number of Poles | 8 | |
| Contact Current Rating | 6 A | |
| Series | NFZ | |
| Normal State Configuration | 7NO/1NC | |
| Number Of Auxiliary Contacts | 8 | |
| Auxiliary Contact Configuration | 7NO + 1NC | |
| Terminal Type | Screw | |
| Width | 45mm | |
| Length | 110.5mm | |
| Depth | 110.5mm | |
| Control Voltage | 20 V dc | |
| Pole and Throw Configuration | 8P | |
| Mounting Style | DIN Rail | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 690 V | ||
Number of Poles 8 | ||
Contact Current Rating 6 A | ||
Series NFZ | ||
Normal State Configuration 7NO/1NC | ||
Number Of Auxiliary Contacts 8 | ||
Auxiliary Contact Configuration 7NO + 1NC | ||
Terminal Type Screw | ||
Width 45mm | ||
Length 110.5mm | ||
Depth 110.5mm | ||
Control Voltage 20 V dc | ||
Pole and Throw Configuration 8P | ||
Mounting Style DIN Rail | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- FR
ABB NFZ Series Contactor Relay, 20V Control Voltage, 6A Contact Current Rating - 1SBH136001R2071
This contactor relay is designed to effectively manage auxiliary and control circuits within industrial applications. Featuring an 8-pole configuration, it provides reliable switching with a coil voltage of 690V. The product measures 110.5mm in length and 45mm in width, ensuring compatibility with standard control systems.
Features & Benefits
• Suitable for high current management up to 6A
• Compatible with DIN rail mounting for easy installation
• Equipped with screw terminals for secure connections
• Includes a built-in surge protection mechanism
• Supports a wide control voltage range from 12V to 250V
• Mechanically linked auxiliary contacts for safety
• Compatible with DIN rail mounting for easy installation
• Equipped with screw terminals for secure connections
• Includes a built-in surge protection mechanism
• Supports a wide control voltage range from 12V to 250V
• Mechanically linked auxiliary contacts for safety
Applications
• Used for switching and controlling auxiliary circuits in automation
• Ideal for integration with PLC outputs for enhanced control
• Designed for use in high-temperature industrial environments
• For that require robust relay specifications
• Ideal for integration with PLC outputs for enhanced control
• Designed for use in high-temperature industrial environments
• For that require robust relay specifications
How does this relay maintain functionality during voltage fluctuations?
It is designed to withstand short voltage dips and sags, ensuring reliable performance even under fluctuating conditions, compliant with SEMI F47-0706 standards.
What type of auxiliary contacts does it provide, and what are their configurations?
The device includes 8 auxiliary contacts configured as 7 normally open and 1 normally closed, enhancing its versatility in various circuit applications.
What is the maximum operating temperature for this relay?
The relay operates effectively in environments with temperatures ranging from -40°C to +70°C, making it suitable for diverse industrial settings.
