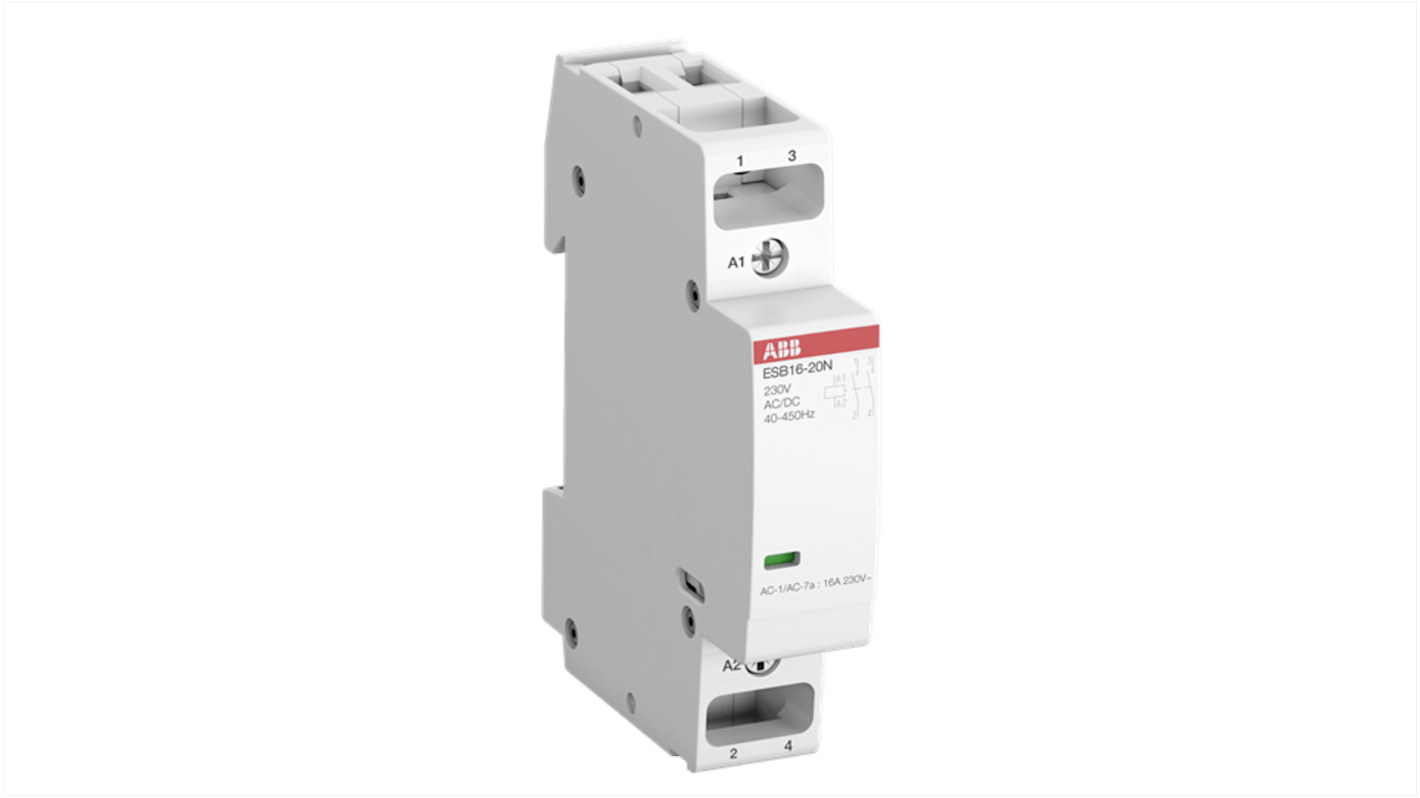

ABB ESB16 Contactor, 110V ac/dc Coil, 2-Pole, 16 A, 3.7 kW 110V ac/dc, 2 NO, 250V
- RS Stock No.:
- 211-1577
- Mfr. Part No.:
- 1SBE111111R0420
- Brand:
- ABB
Subtotal (1 unit)*
£49.14
(exc. VAT)
£58.97
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £49.14 |
*price indicative
- RS Stock No.:
- 211-1577
- Mfr. Part No.:
- 1SBE111111R0420
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Contactor | |
| Coil Voltage | 110V ac/dc | |
| Number of Poles | 2 | |
| Contact Voltage | 250V | |
| Contact Current | 16A | |
| Series | ESB16 | |
| Power Rating | 3.7kW | |
| Function | Safety | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 2 NO | |
| Terminal Type | Screw | |
| Operational Current Ie | 6A | |
| Control Circuit Voltage Uc | 110V ac/dc | |
| Contactor Application | Safety | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | EN, IEC, UL | |
| Width | 18mm | |
| Depth | 65mm | |
| Length | 65mm | |
| Pole and Throw Configuration | 2 | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Contactor | ||
Coil Voltage 110V ac/dc | ||
Number of Poles 2 | ||
Contact Voltage 250V | ||
Contact Current 16A | ||
Series ESB16 | ||
Power Rating 3.7kW | ||
Function Safety | ||
Mount Type DIN Rail | ||
Normal State Configuration 2 NO | ||
Terminal Type Screw | ||
Operational Current Ie 6A | ||
Control Circuit Voltage Uc 110V ac/dc | ||
Contactor Application Safety | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals EN, IEC, UL | ||
Width 18mm | ||
Depth 65mm | ||
Length 65mm | ||
Pole and Throw Configuration 2 | ||
- COO (Country of Origin):
- BG
ABB ESB Series Contactor, 110V Control Voltage, 16A Current Rating - 1SBE111111R0420
This contactor is designed for efficient control of single loads up to 16A, functioning effectively in both domestic and industrial environments. The compact dimensions of 65mm in length and depth, alongside a width of 18mm, make it suitable for installation on DIN rails. It operates at a coil voltage of 110V, providing reliable performance across various applications.
Features & Benefits
• Hum-free operation enhances comfort in noise-sensitive environments
• Low power consumption contributes to overall energy efficiency
• Integrated overvoltage protection safeguards connected circuits
• Designed for easy installation with screw terminals
• Capable of operating in both AC and DC control circuits
• Robust performance rated for 3.7kW power applications
Applications
• Used to control motors in domestic appliances
• Employed in commercial lighting systems
• Ideal for automation in industrial equipment
• Utilised for safety management in machinery
• Suitable for use in distribution boards
What are the operating temperature limits for optimal performance?
It can operate effectively within a temperature range of -25°C to +55°C, making it suitable for various challenging environments.
How does this device ensure safety during operation?
The integrated overvoltage protection feature prevents potential damage to connected devices, ensuring safe operation under varying electrical conditions.
What are the installation requirements for this device?
It is designed for straightforward installation on standard DIN rails, allowing efficient use of space in control panels and distribution boards.
What type of screwdriver is recommended for connection?
A Pozidriv 1 screwdriver is recommended for both control and main circuit connections, ensuring a secure and reliable fit.
Can this device be used for high-frequency applications?
While it operates effectively at standard electrical frequencies, specific high-frequency applications should be assessed according to its rated specifications for reliable performance.
