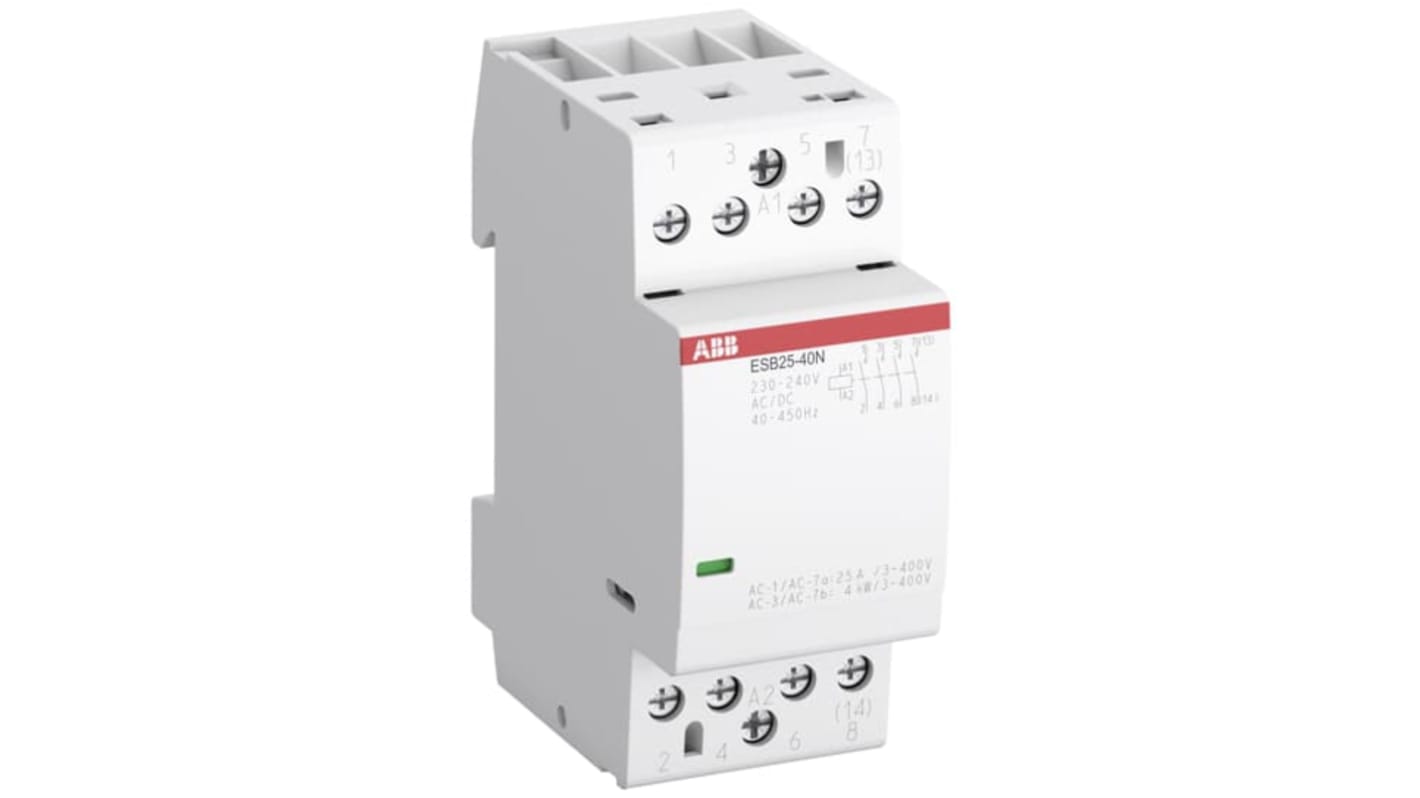

ABB ESB25-40N-14 ESB Contactor, 12 V ac Coil, 4-Pole, 25 A, 17.3 kW, 4NO
- RS Stock No.:
- 211-1515
- Mfr. Part No.:
- 1SAE231111R1440
- Brand:
- ABB
Subtotal (1 unit)*
£67.90
(exc. VAT)
£81.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £67.90 |
*price indicative
- RS Stock No.:
- 211-1515
- Mfr. Part No.:
- 1SAE231111R1440
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Coil Voltage | 12 V ac | |
| Number of Poles | 4 | |
| Contact Current Rating | 25 A | |
| Range | ESB25-40N-14 | |
| Power Rating | 17.3 kW | |
| Series | ESB | |
| Function | Safety | |
| Normal State Configuration | 4NO | |
| Width | 36mm | |
| Length | 65mm | |
| Depth | 65mm | |
Select all | ||
|---|---|---|
Brand ABB | ||
Coil Voltage 12 V ac | ||
Number of Poles 4 | ||
Contact Current Rating 25 A | ||
Range ESB25-40N-14 | ||
Power Rating 17.3 kW | ||
Series ESB | ||
Function Safety | ||
Normal State Configuration 4NO | ||
Width 36mm | ||
Length 65mm | ||
Depth 65mm | ||
- COO (Country of Origin):
- DE
ABB ESB Series Contactor, 12V Control Voltage, 25A Rating - 1SAE231111R1440
This contactor is designed for precise control in both domestic and industrial applications. With a power rating of 17.3 kW and a coil voltage of 12 V AC, it operates efficiently across a wide temperature range, from -25°C to +55°C. Measuring 65mm in length, 36mm in width, and 65mm in depth, this model features four normally open (NO) poles, ensuring reliable performance in various environments.
Features & Benefits
• Provides hum-free operation for reduced noise
• Low power consumption aids in energy efficiency
• Integrated overvoltage protection enhances safety
• Versatile options for contact combinations available
• Suitable for AC or DC operation up to 25A
• Can be easily mounted on DIN rail for quick installation
• Low power consumption aids in energy efficiency
• Integrated overvoltage protection enhances safety
• Versatile options for contact combinations available
• Suitable for AC or DC operation up to 25A
• Can be easily mounted on DIN rail for quick installation
Applications
• Controls single and three-phase loads effectively
• Ideal for use in factory automation and electrical systems
• Utilised in residential electrical distribution boards
• Commonly deployed in remote control systems for industrial equipment
• Employed in safety-critical within various sectors
• Ideal for use in factory automation and electrical systems
• Utilised in residential electrical distribution boards
• Commonly deployed in remote control systems for industrial equipment
• Employed in safety-critical within various sectors
What are the key electrical specifications of this product?
The product operates at a rated control circuit voltage of 12 V and can handle a maximum operational current of 25 A in AC-1 and AC-3 configurations. The contactor supports both single and three-phase circuits, making it versatile for various applications.
How does the design of this contactor facilitate installation and maintenance?
The compact design allows for installation on a DIN rail, ensuring it occupies minimal space while providing straightforward access for maintenance. The screw terminal type enables quick and secure wiring during installation.
What advantages does the temperature range provide for this contactor's use?
With an operational temperature range of -25°C to +55°C, the contactor is suitable for use in diverse environmental conditions, allowing it to perform reliably under varying thermal stresses typical in industrial and outdoor applications.
